DTC P2123: Notes

DTC P2123 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2123 APP sensor No.1 circuit high input
DETECTION CONDITION
  • APP sensor No.1 is out of self-test range high.
POSSIBLE CAUSE
  • Open circuit wiring harness between APP sensor terminal F and PCM terminal 1BA
  • Open circuit wiring harness between APP sensor terminal D and PCM terminal 1Y
  • Open circuit wiring harness between APP sensor terminal G and PCM terminal 1AD
  • Open circuit wiring harness between APP sensor terminal C and PCM terminal 1AH
  • Open circuit wiring harness between APP sensor terminal E and PCM terminal 1AK
  • Short to power supply in wiring harness between APP sensor terminal F and PCM terminal 1BA
  • Short to power supply in wiring harness between APP sensor terminal D and PCM terminal 1Y
  • Short to power supply in wiring harness between APP sensor terminal G and PCM terminal 1AD
  • Short to power supply in wiring harness between APP sensor terminal C and PCM terminal 1AH
  • Short to power supply in wiring harness between APP sensor terminal E and PCM terminal 1AK
  • Connector or terminal malfunction
  • APP sensor malfunction

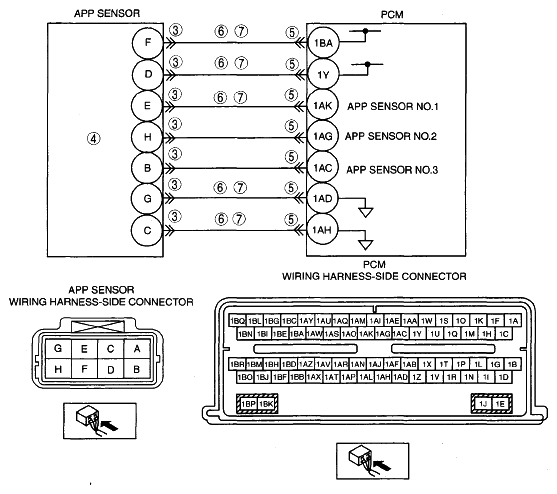

G04969318Courtesy of MAZDA MOTORS CORP.
