DTC P2132: Notes
DTC P2132 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2132 |
APP sensor No.3 circuit low input |
| DETECTION CONDITION |
- APP sensor No.3 is out of self-test range low.
|
| POSSIBLE CAUSE |

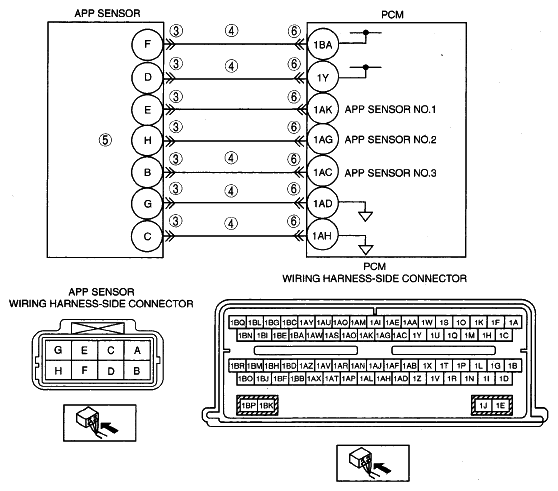

- Short to ground circuit between APP sensor terminal F and PCM terminal 1BA
- Short to ground circuit between APP sensor terminal D and PCM terminal 1Y
- Short to ground circuit between APP sensor terminal G and PCM terminal 1AD
- Short to ground circuit between APP sensor terminal C and PCM terminal 1AH
- Short to ground circuit between APP sensor terminal B and PCM terminal 1AC
- Connector or terminal malfunction
- APP sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
