DTC P2135: Notes
DTC P2135 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2135 |
TP sensor No.1/No.2 voltage correlation |
| DETECTION CONDITION |
- The PCM flagged a concern indicating that TP sensor No.1 and TP sensor No.2 disagree by more than a calibrated limit.
|
| POSSIBLE CAUSE |

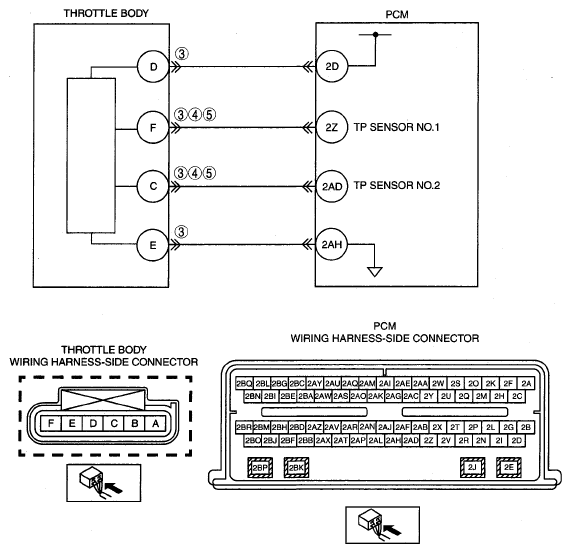

- Short to power supply between TP sensor No.1 terminal F and PCM terminal 2Z
- Short to power supply between TP sensor No.2 terminal C and PCM terminal 2AD
- TP sensor circuits are shorted each other
- TP sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
