Selector Lever Component Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. To remove the interlock cable, remove the following parts.
    1. Column cover (see COLUMN COVER REMOVAL/INSTALLATION .)
    2. Driver side under panel
    3. Accelerator pedal (see ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZI-3.5] .)
  3. To remove the selector cable, remove the following parts.
    1. Battery and battery tray
    2. Air cleaner component (see INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.5] .)
    3. Dashboard (see DASHBOARD REMOVAL/INSTALLATION .)
    4. Front A/C unit (see FRONT A/C UNIT REMOVAL/INSTALLATION .)
  4. To remove the selector lever, remove the following parts.
    1. Console (see CONSOLE REMOVAL/INSTALLATION .)
  5. Remove in the order shown in the figure.
  6. Install in the reverse order of removal.

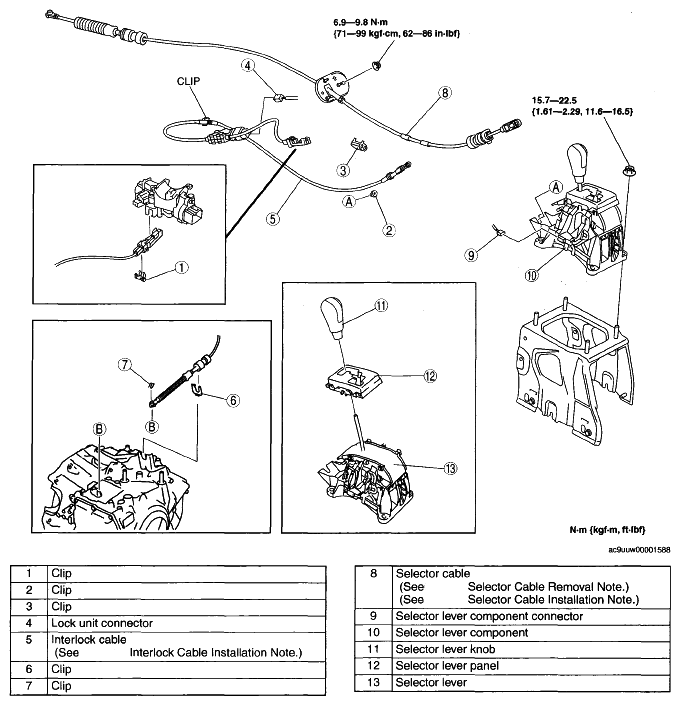

    Fig 1: Selector Lever Replacement Components With Torque Specifications
    G04970423
