Transverse Member Removal/Installation

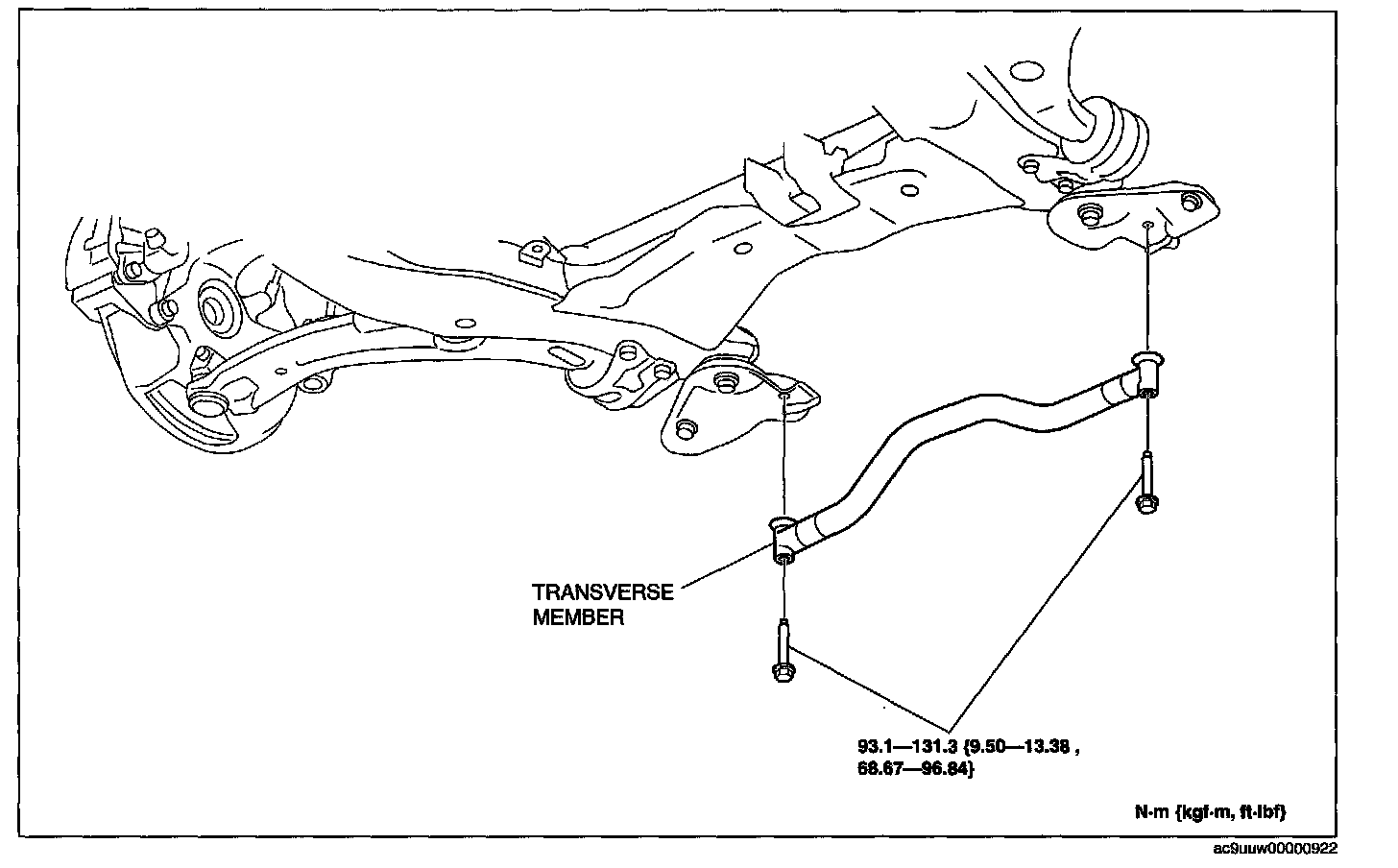

TRANSVERSE MEMBER REMOVAL/INSTALLATION
1. Remove the transverse member.





2. Install the transverse member with the identification mark facing the rear right of the vehicle.
