Grille: Service and Repair

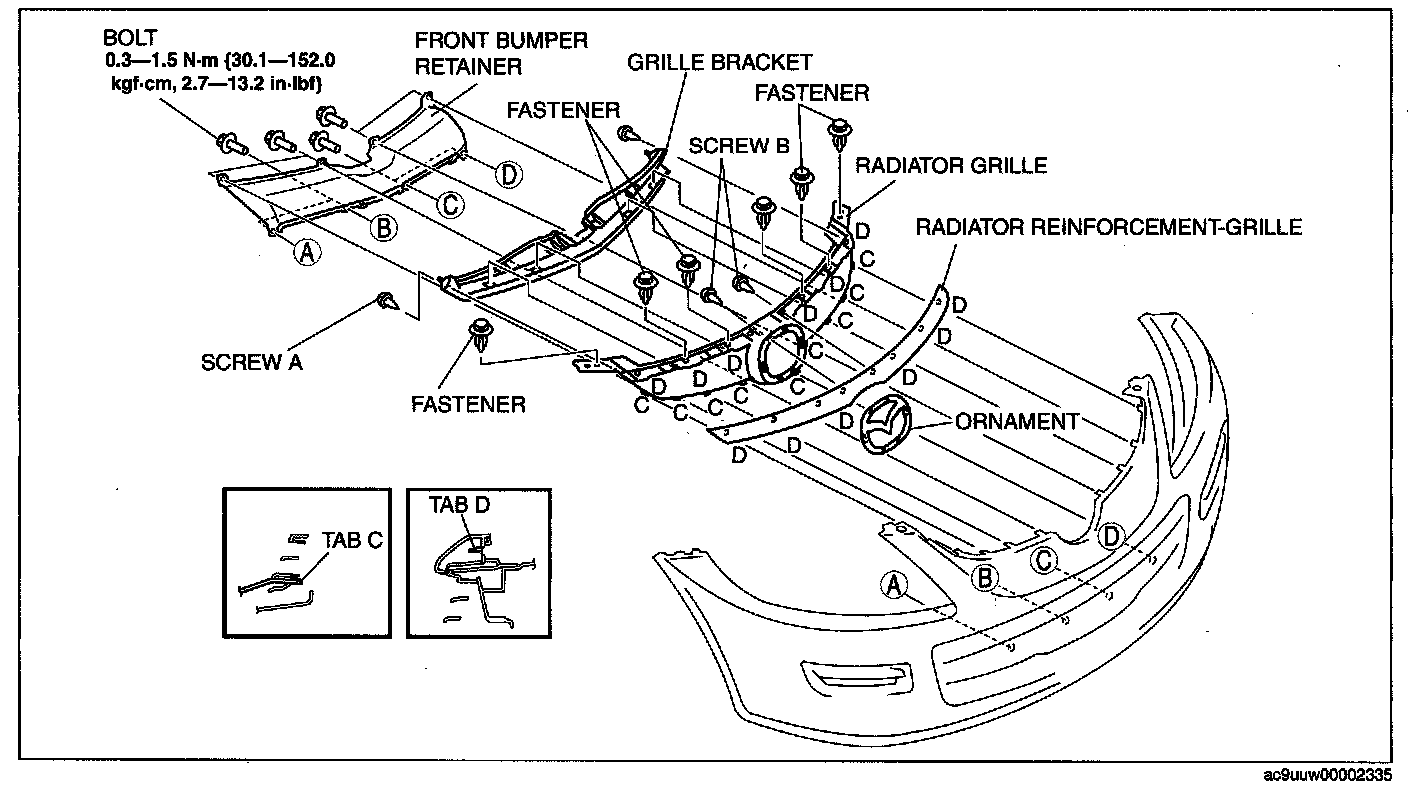

RADIATOR GRILLE REMOVAL/INSTALLATION

1. Set the front over fender out of the way.
2. Remove the front bumper.
3. Remove the bolts.






4. Remove the front bumper retainers.
5. Remove the fasteners.
6. Remove the screws A.
7. Remove the grille bracket.
8. Remove the screws B.
9. Remove the tabs D.
10. Remove the ornament.
11. Remove the radiator grille.
12. Press tabs C in the direction of the arrow, pull the radiator grille inward, and remove it from the front bumper.
13. Install in the reverse order of removal.
