CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Keyless Entry Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pinout Values and Diagnostic Parameters

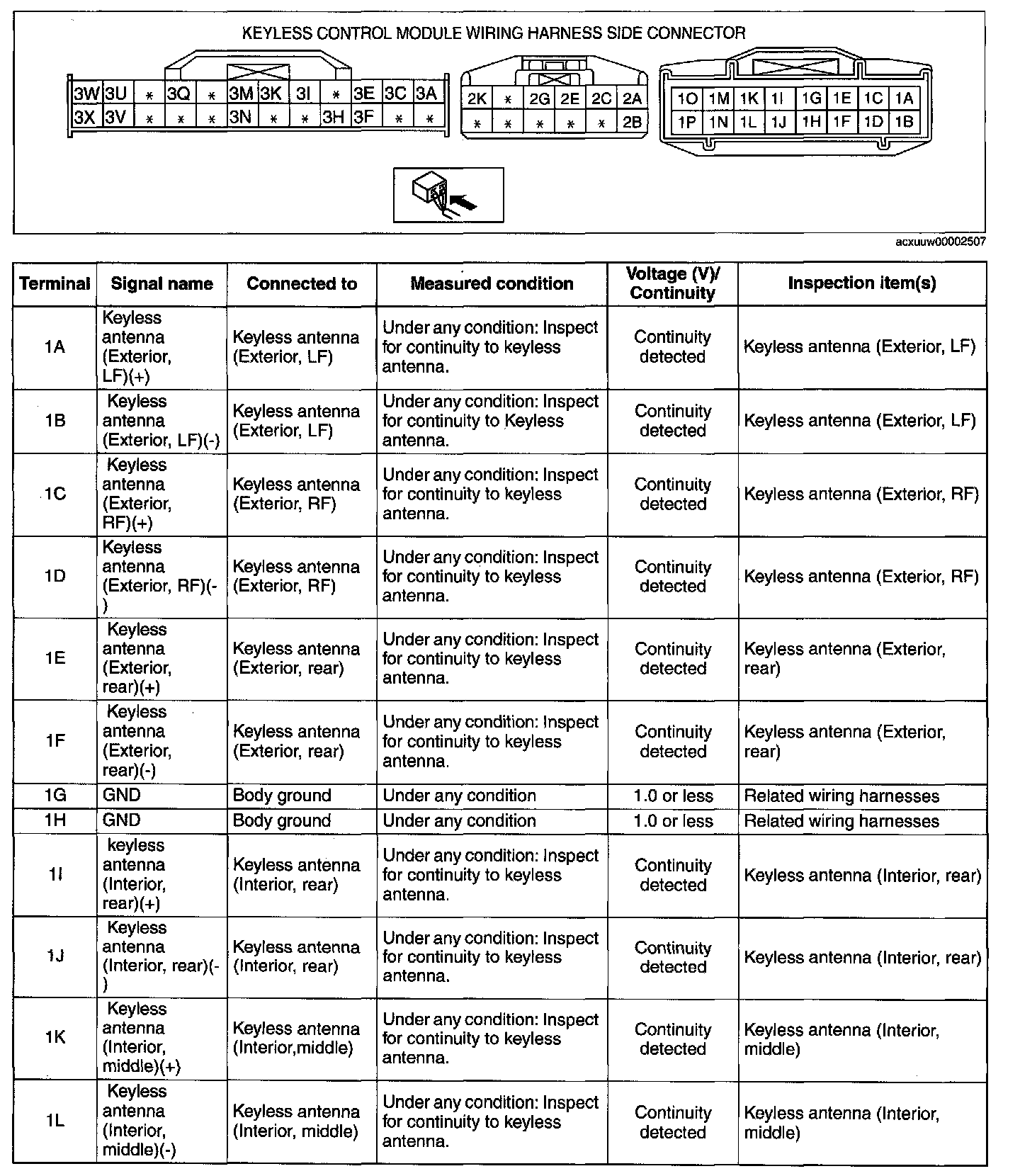

Terminal 1A-1L:

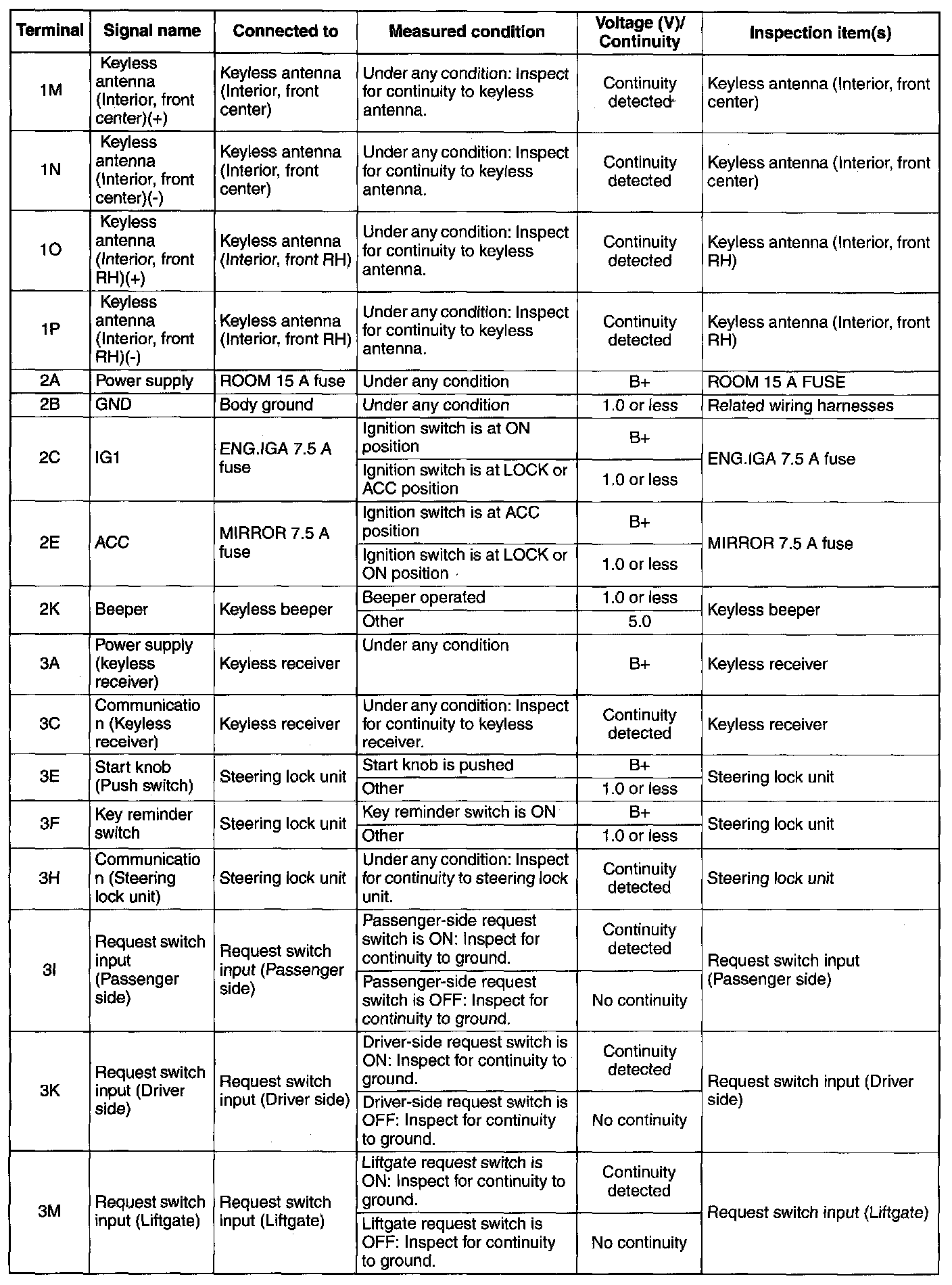

Terminal 1M-3M:

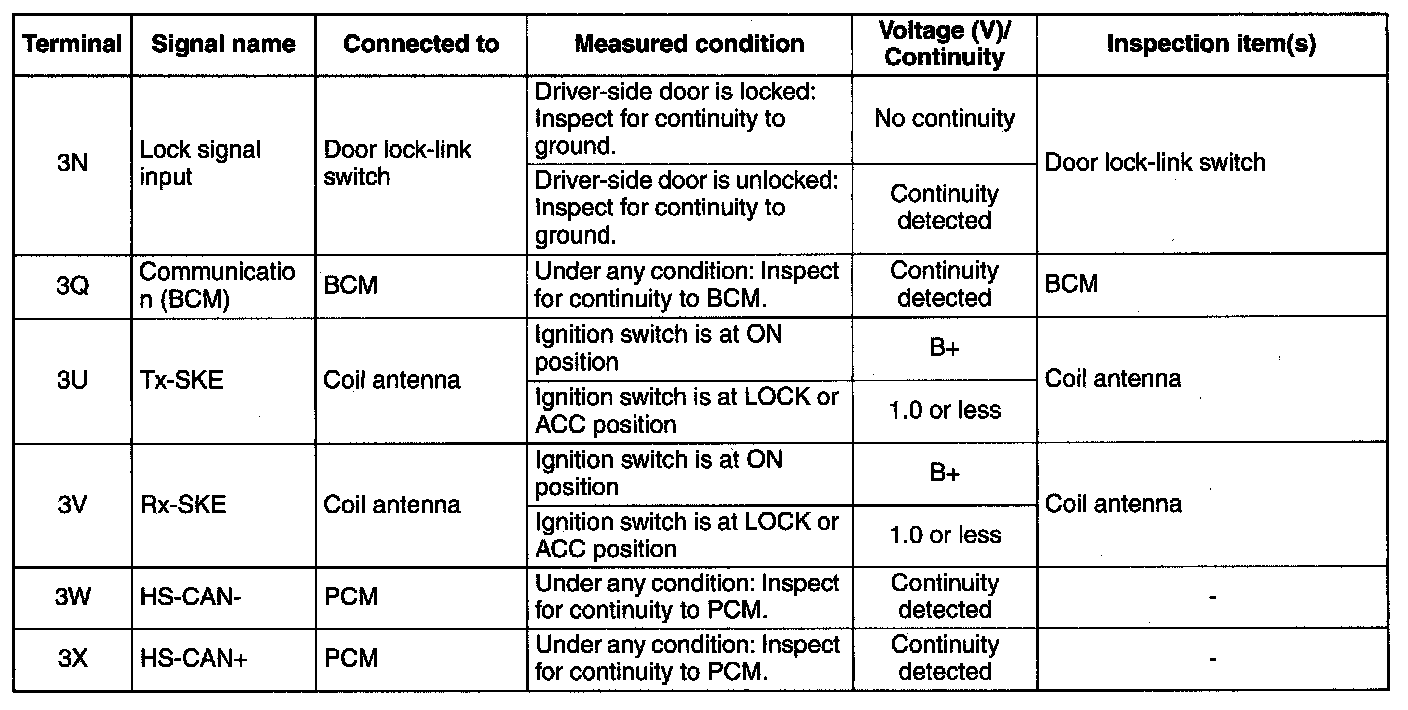

Terminal 3N-3X:
