Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Car-Navigation Unit
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Car-Navigation Unit

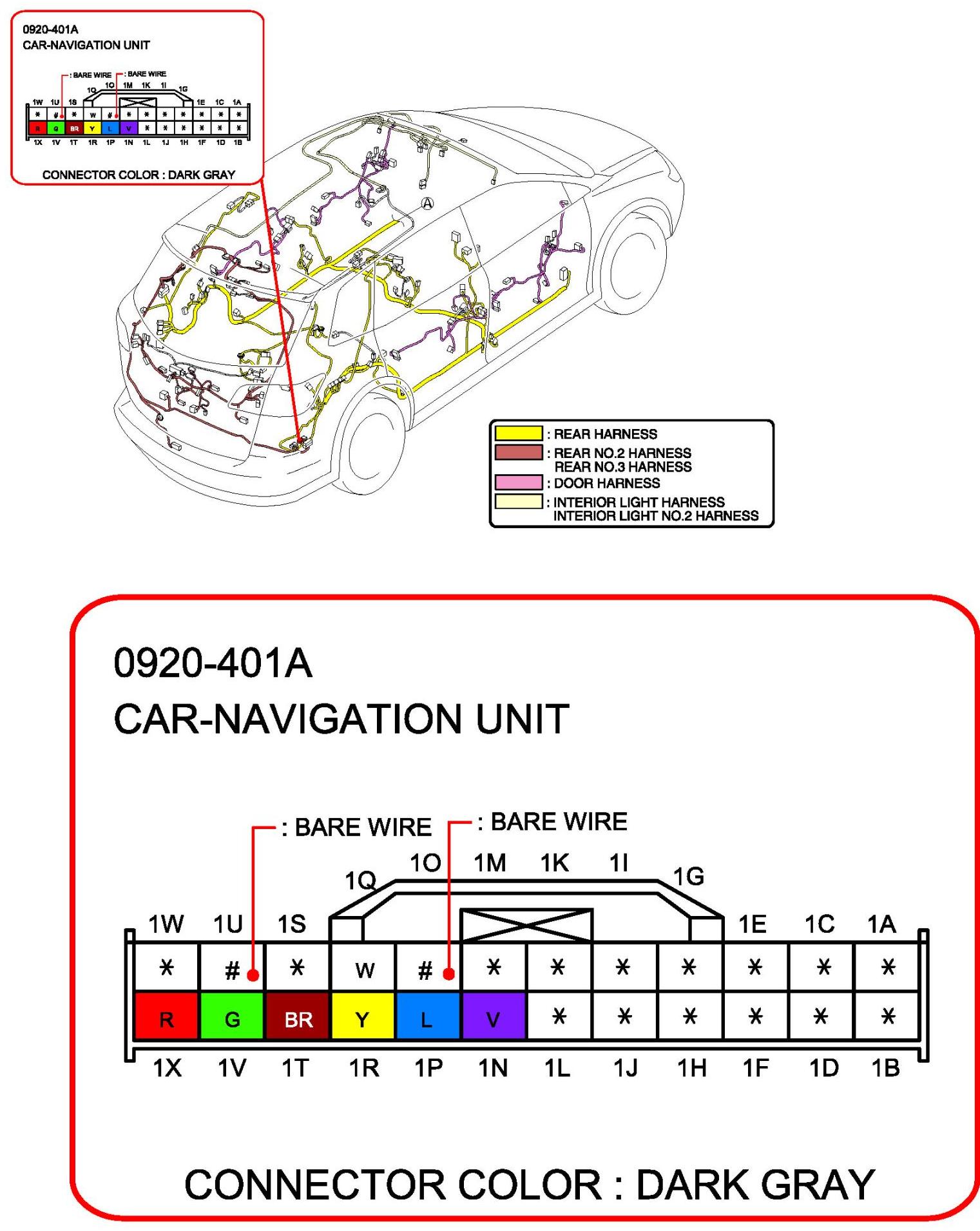

Car-Navigation Unit:

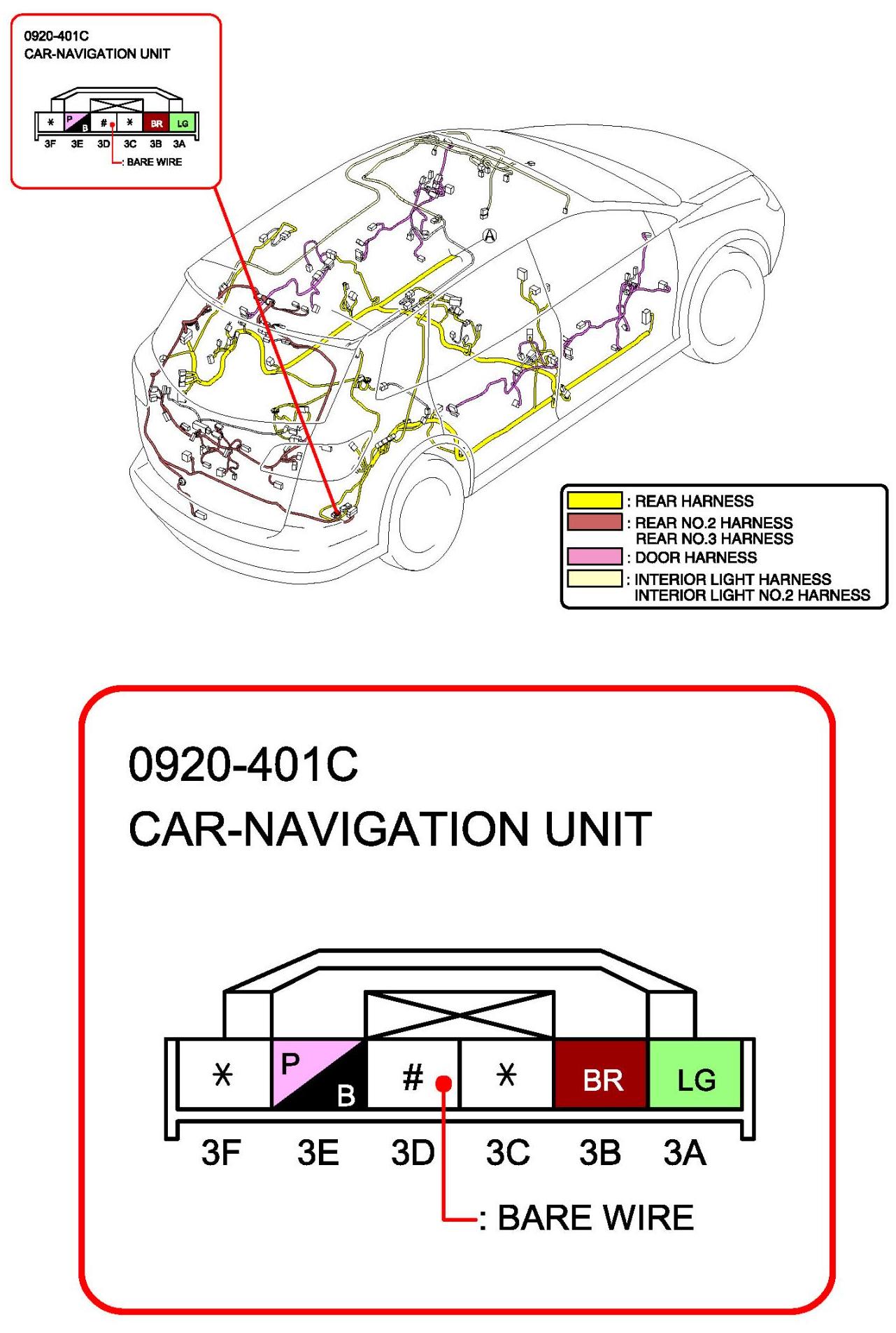

Car-Navigation Unit:

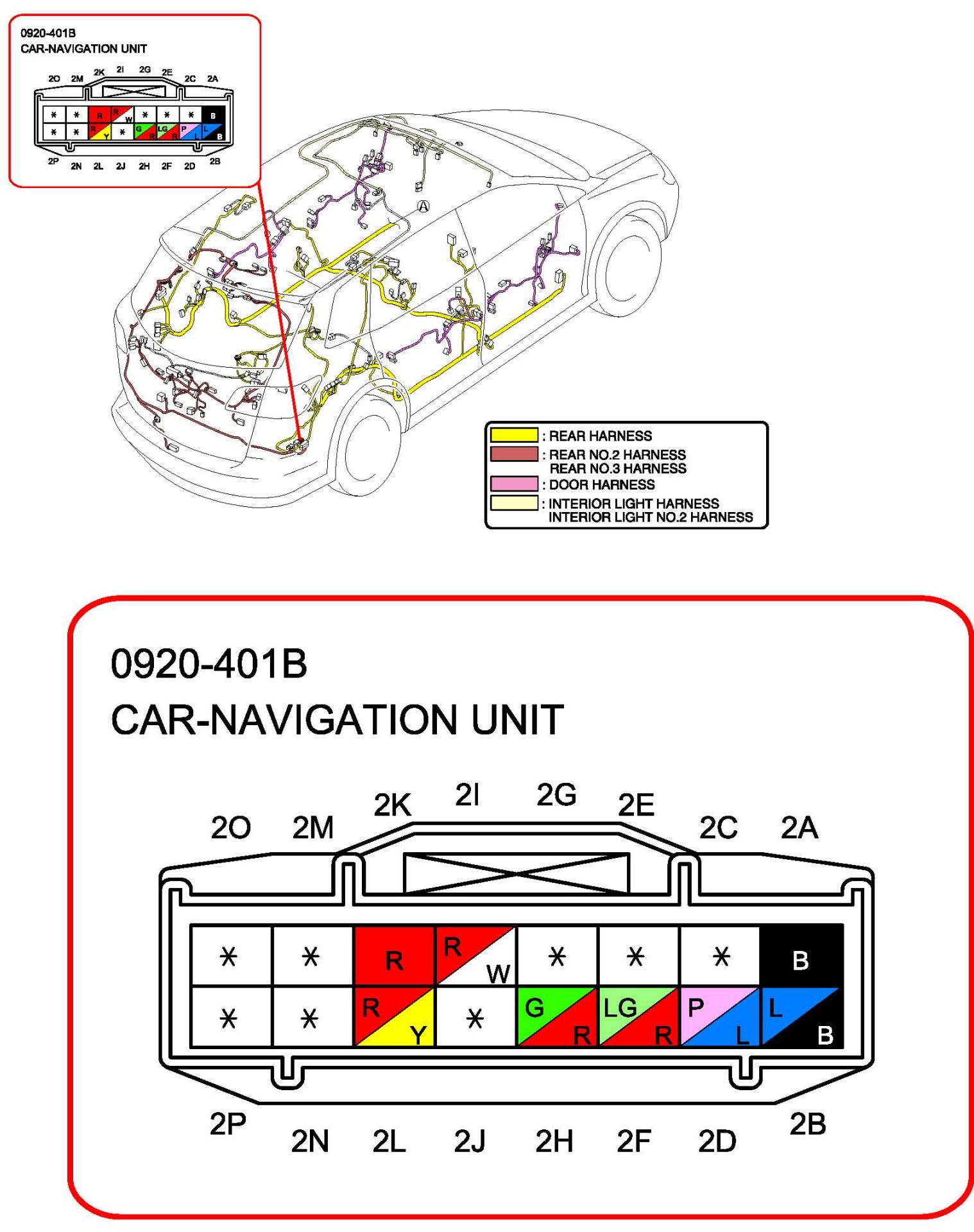

Car-Navigation Unit:
