Front Door Lock Switch (Driver-Side)

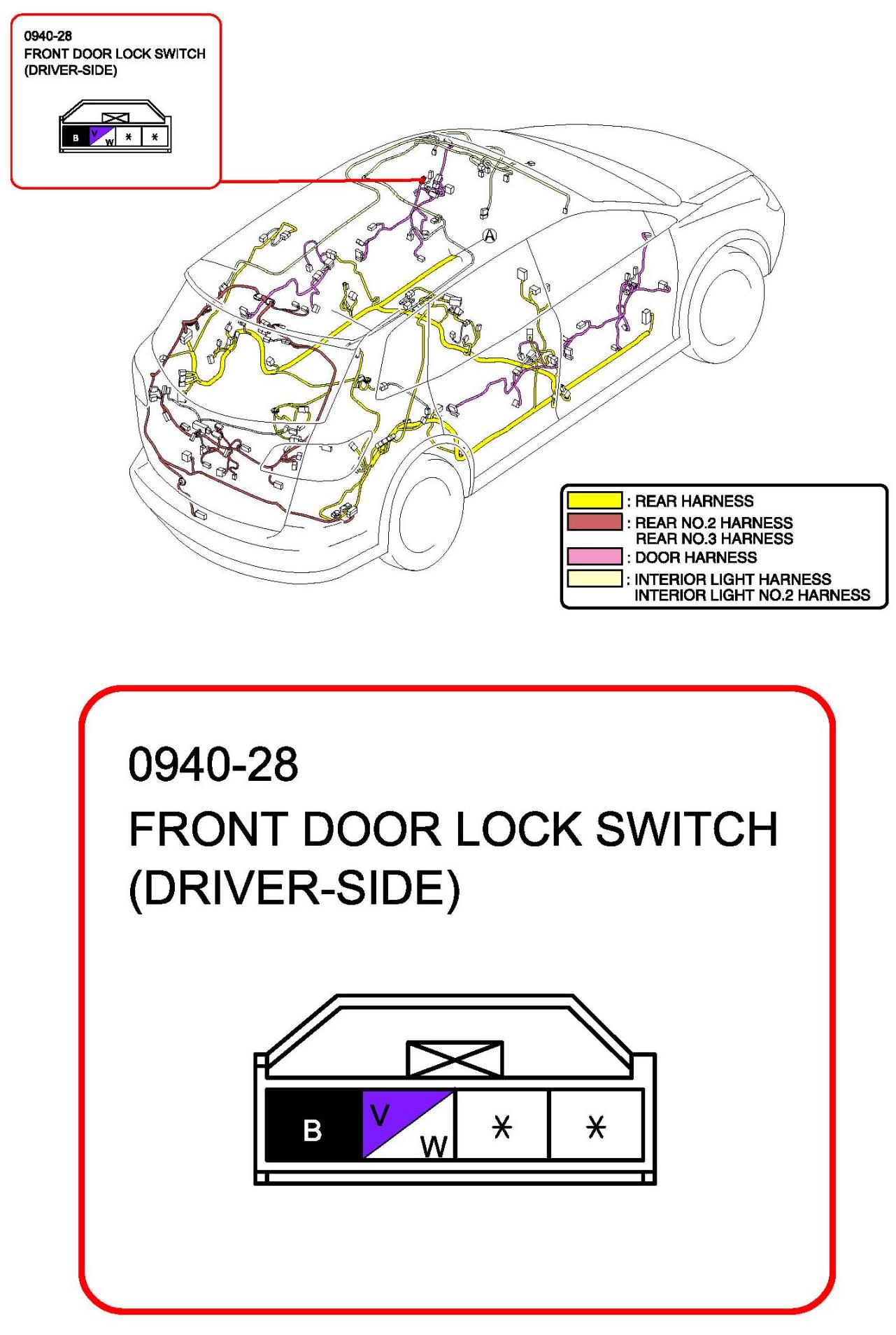

Front Door Lock Switch (Driver-Side):

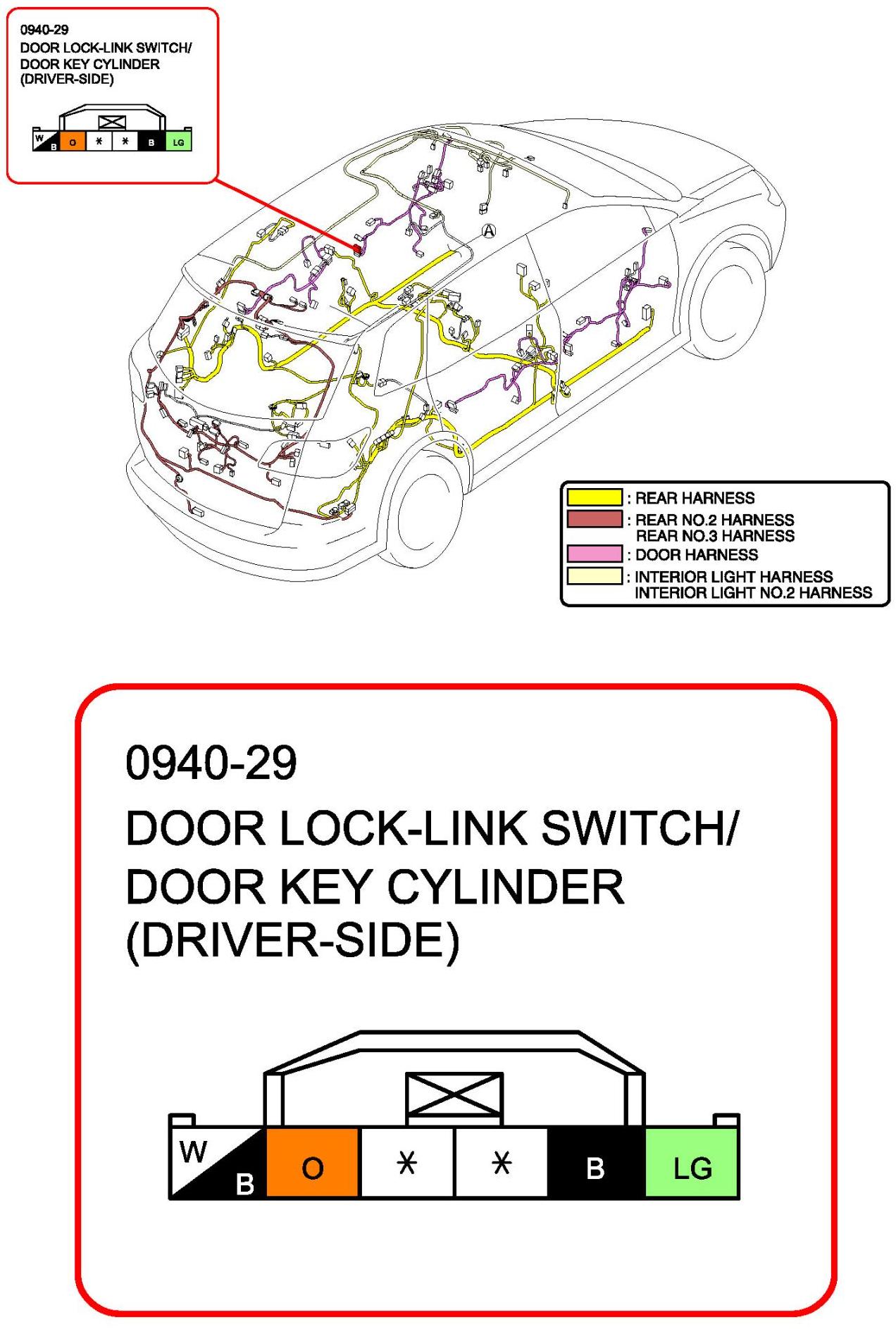

Door Lock-Link Switch/Door Key Cylinder (Driver-Side):

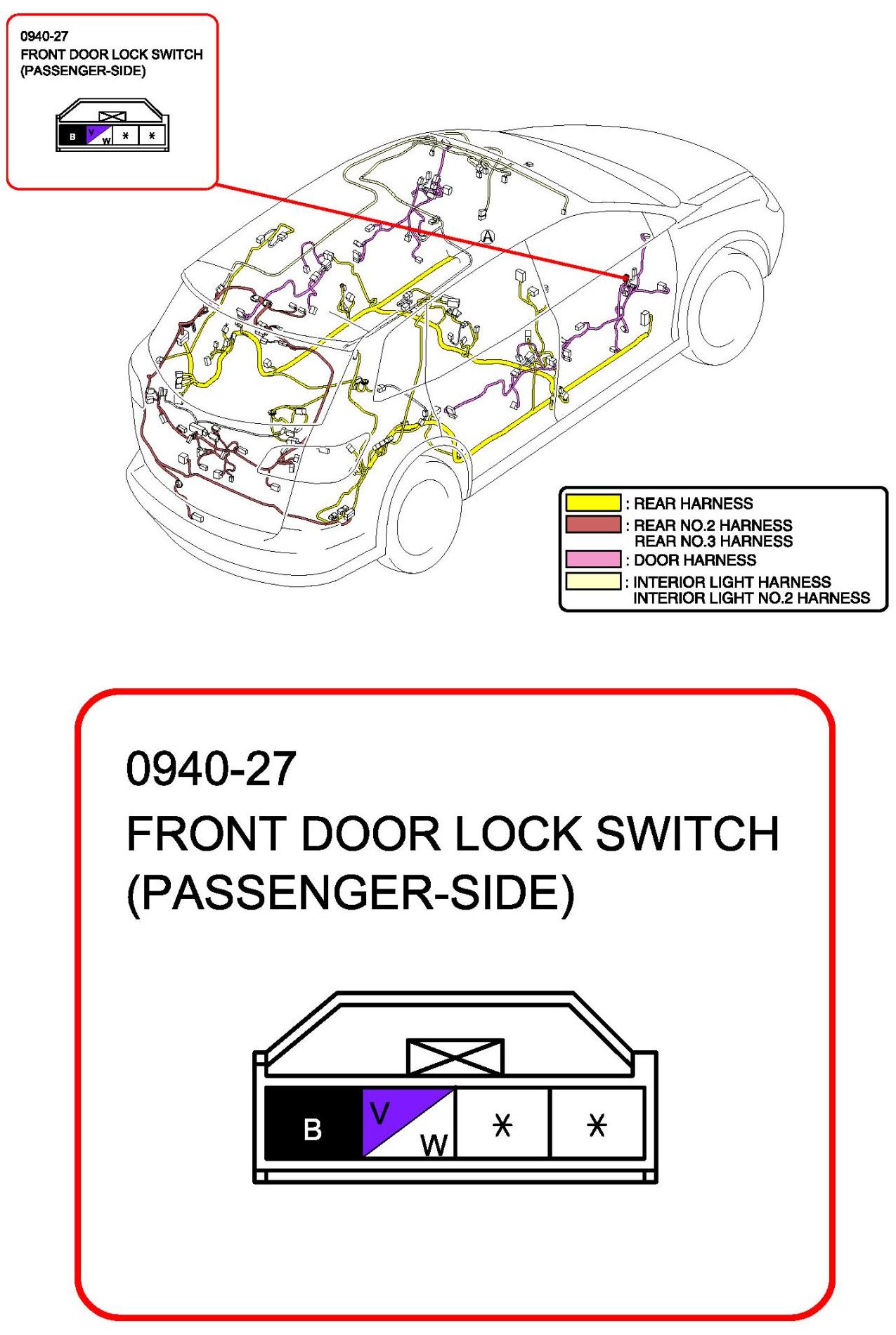

Front Door Lock Switch (Passenger-Side):

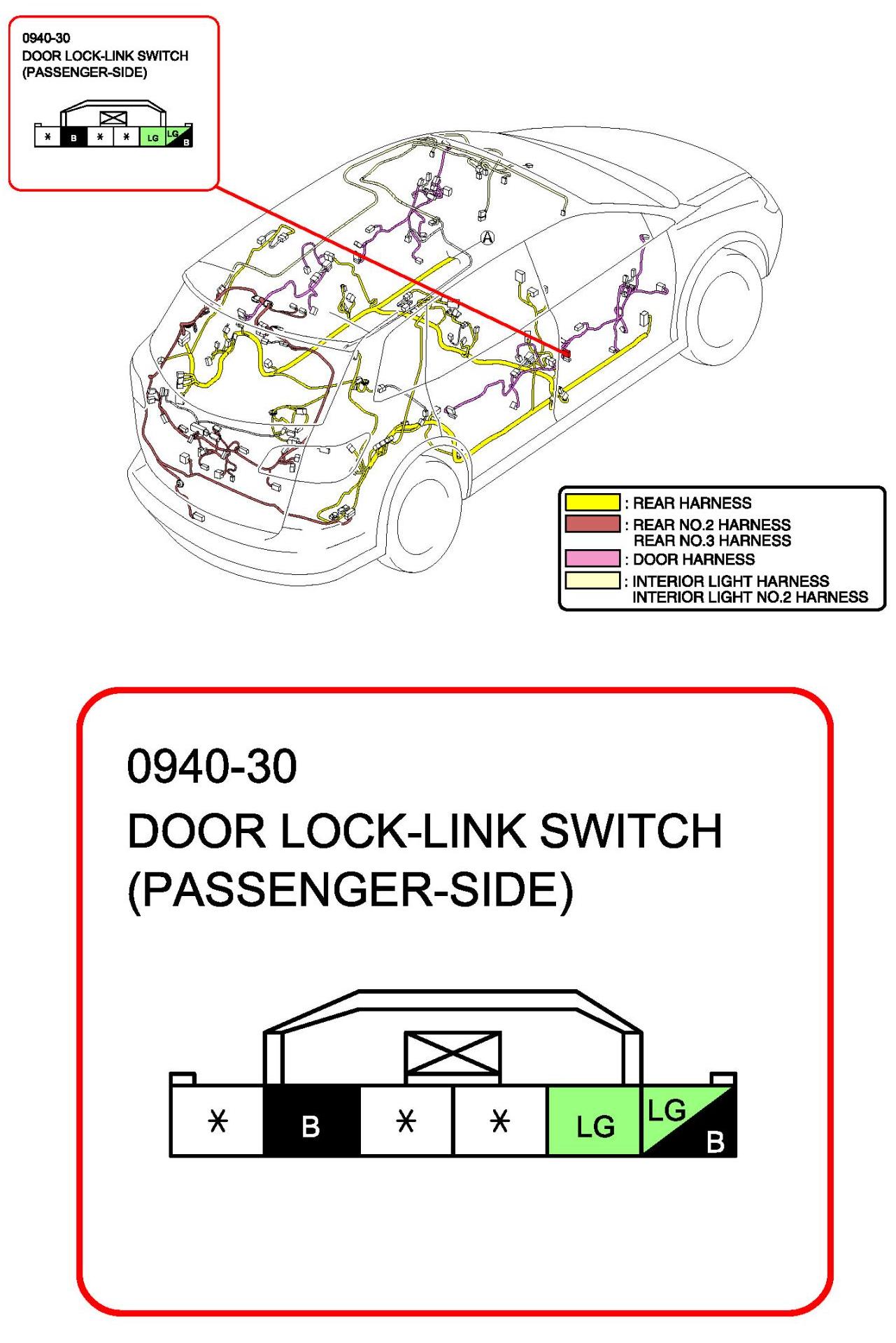

Door Lock-Link Switch (Passenger-Side):

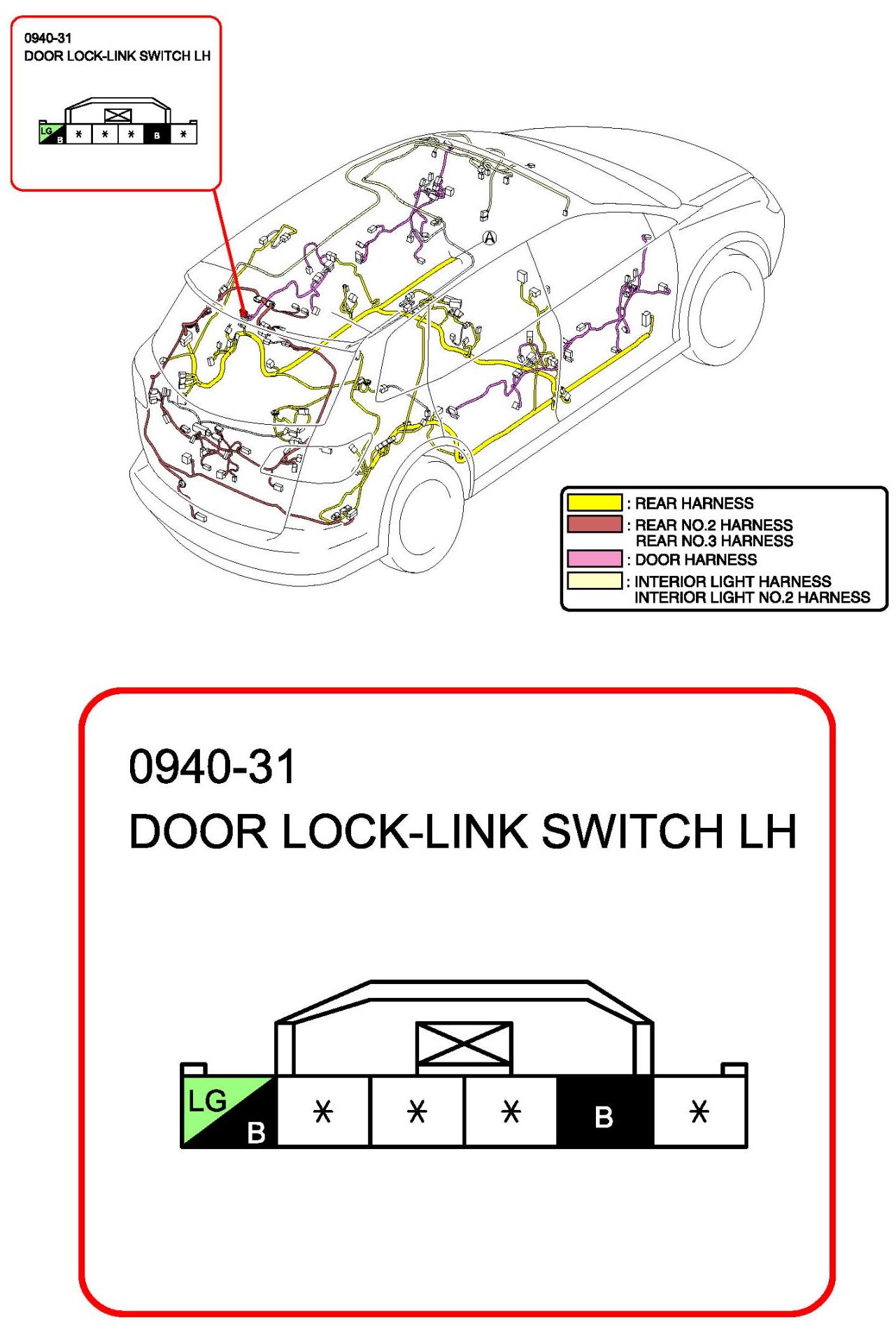

Door Lock-Link Switch LH:

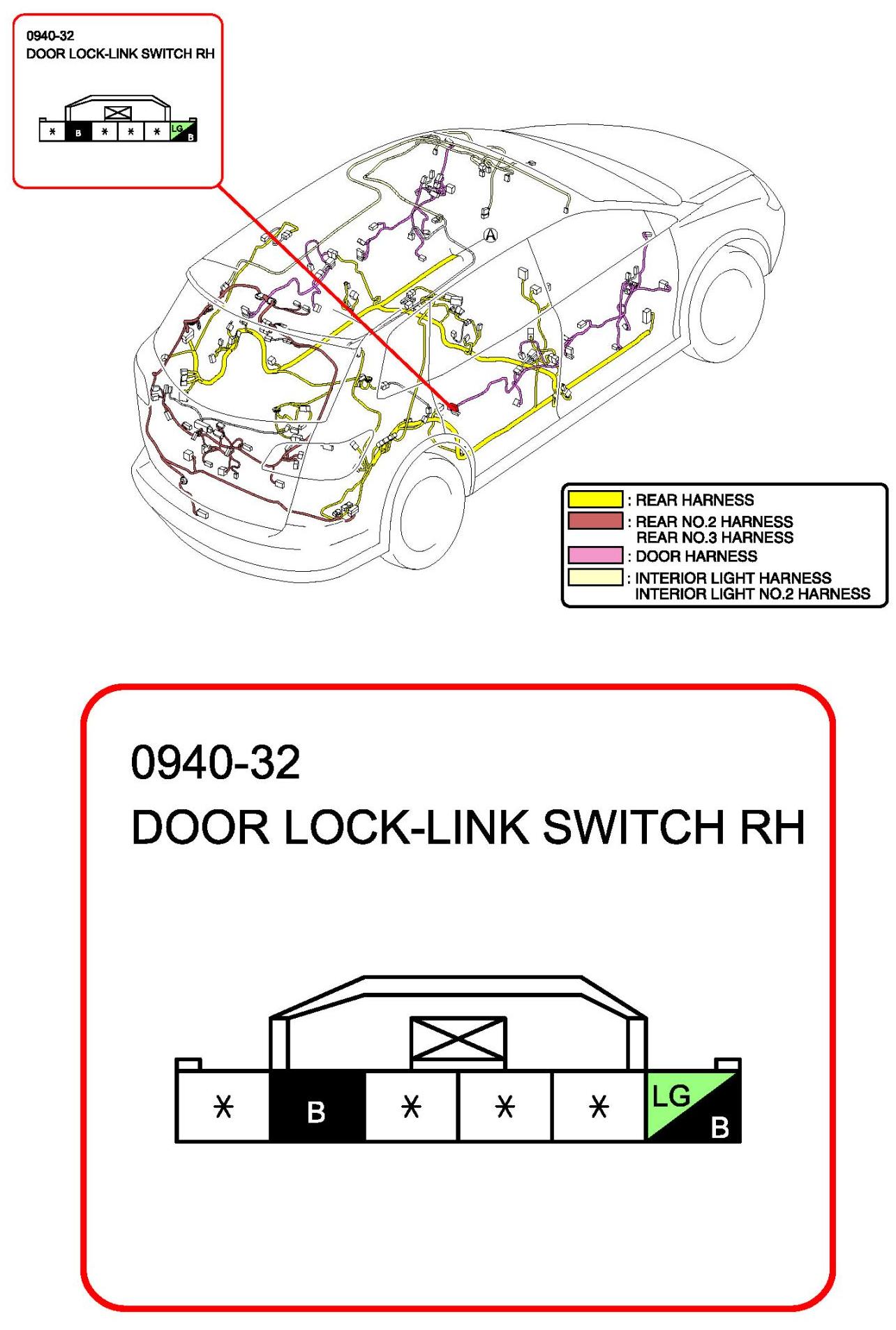

Door Lock-Link Switch RH:
