Connector Locations

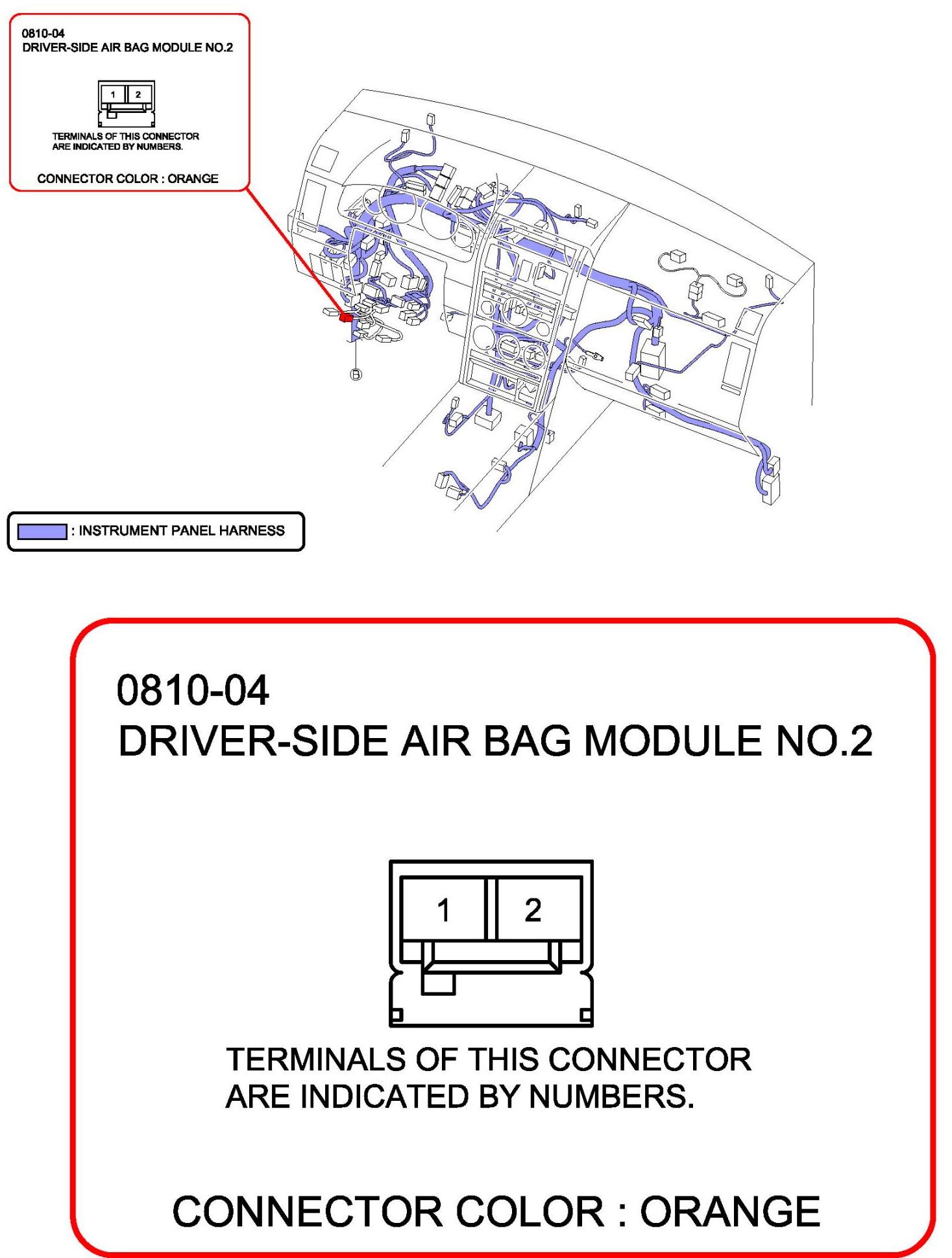

Driver-Side Air Bag Module No.2:

Driver-Side Air Bag Module No.1:

SAS Control Module:

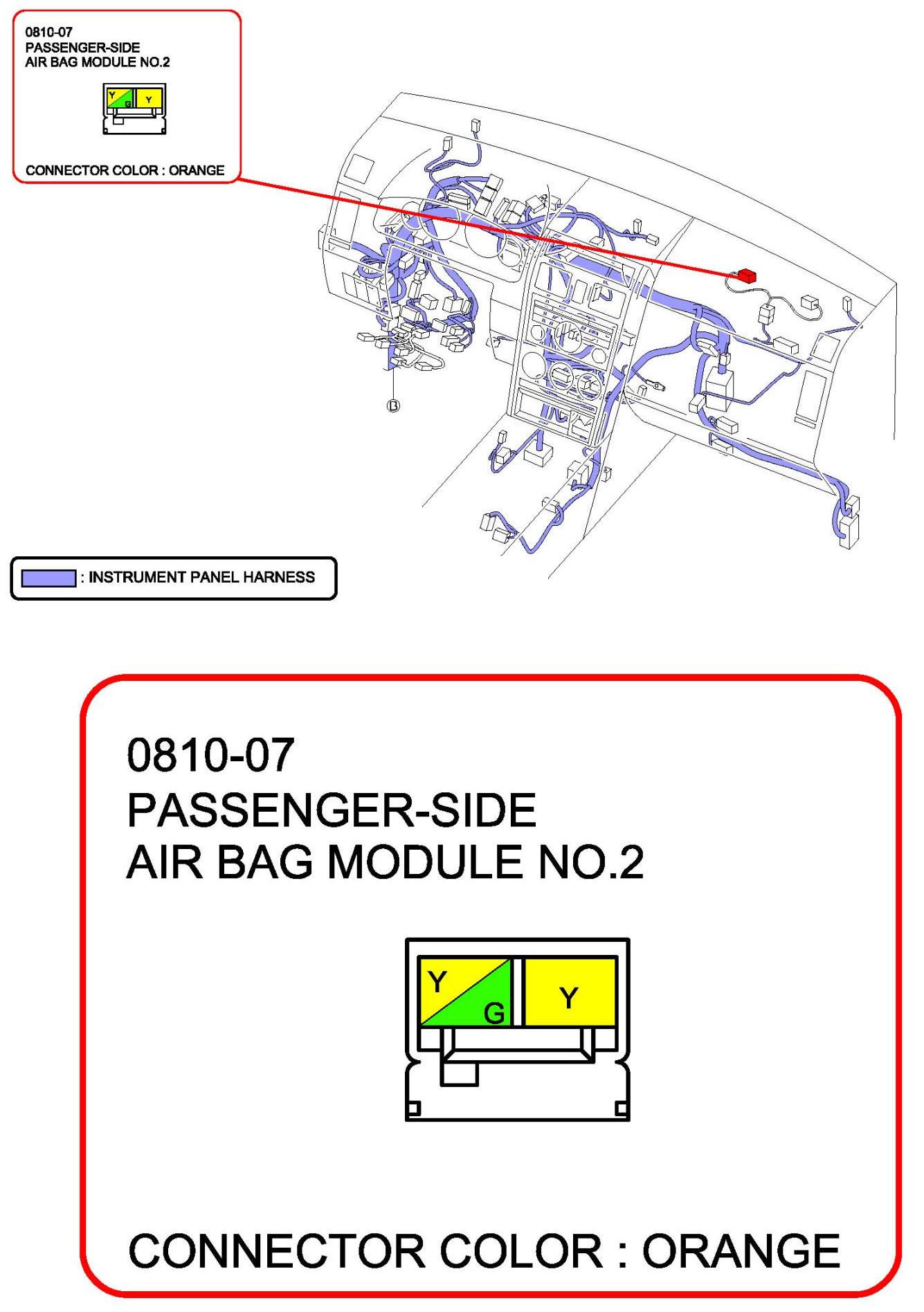

Passenger-Side Air Bag Module No.2:

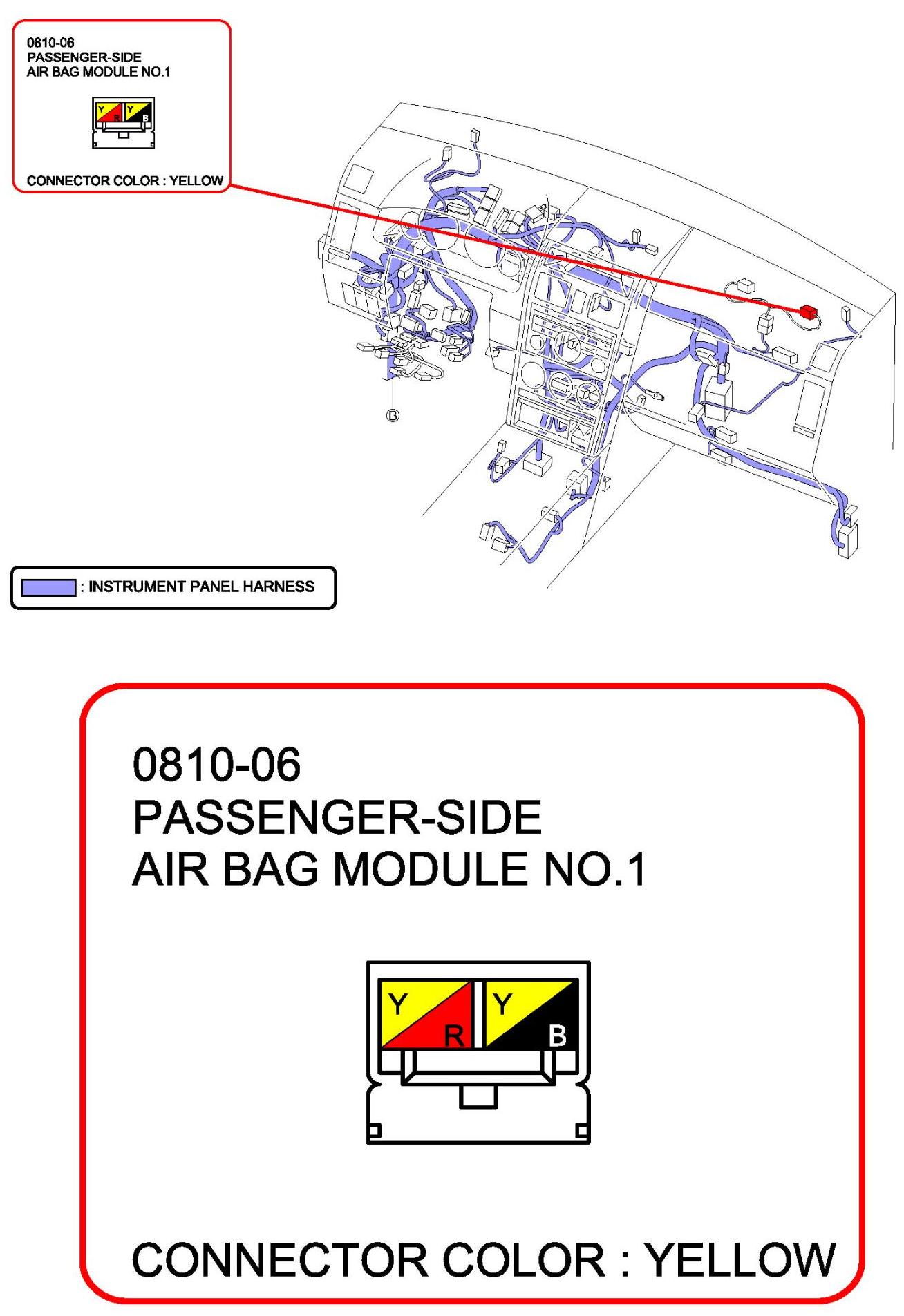

Passenger-Side Air Bag Module No.1:

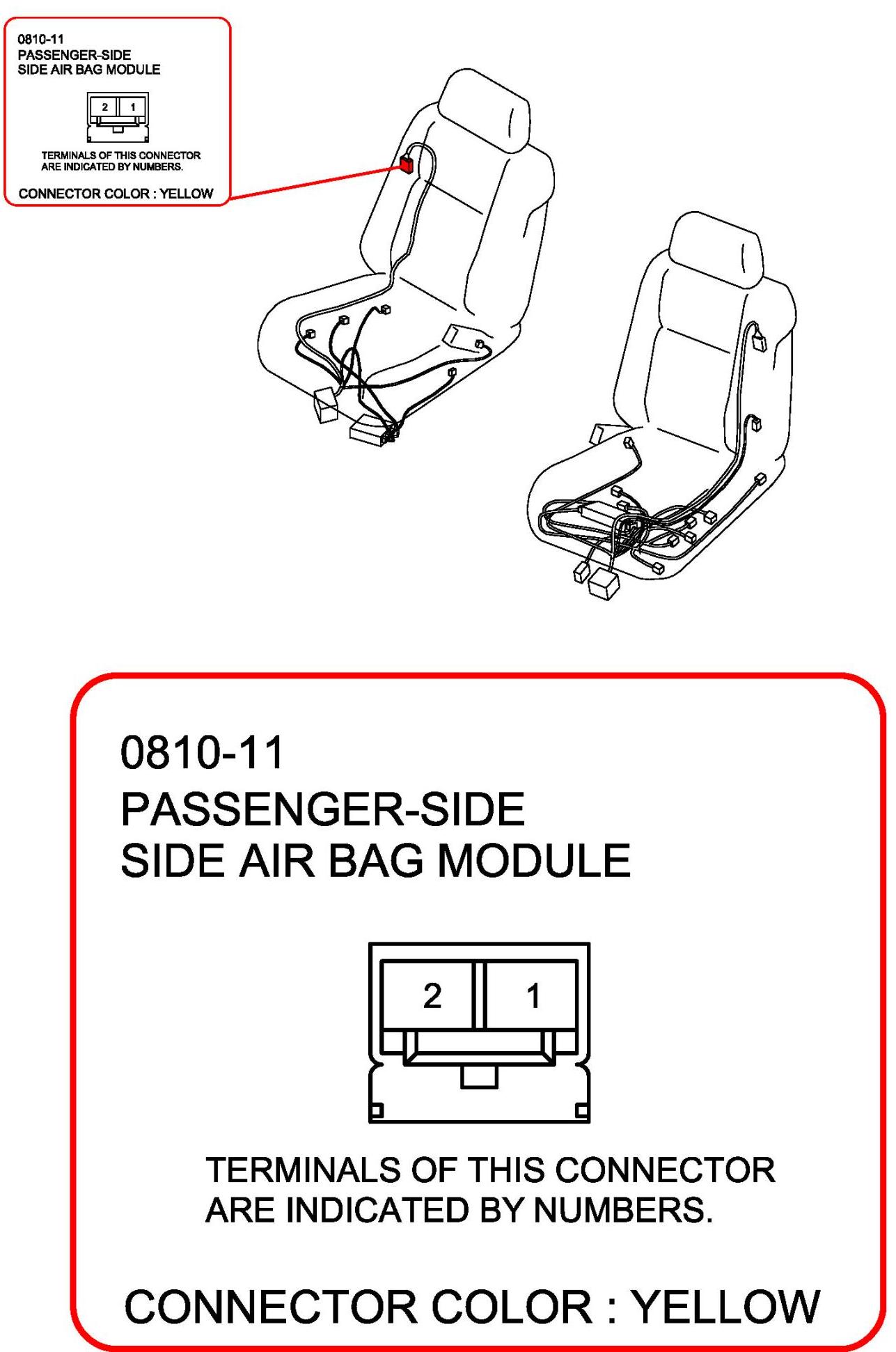

Passenger-Side Side Air Bag Module:

Seat Weight Sensor Control Module:

Seat Weight Sensor Control Module:

Seat Weight Sensor Control Module:

Driver-Side Side Air Bag Module:

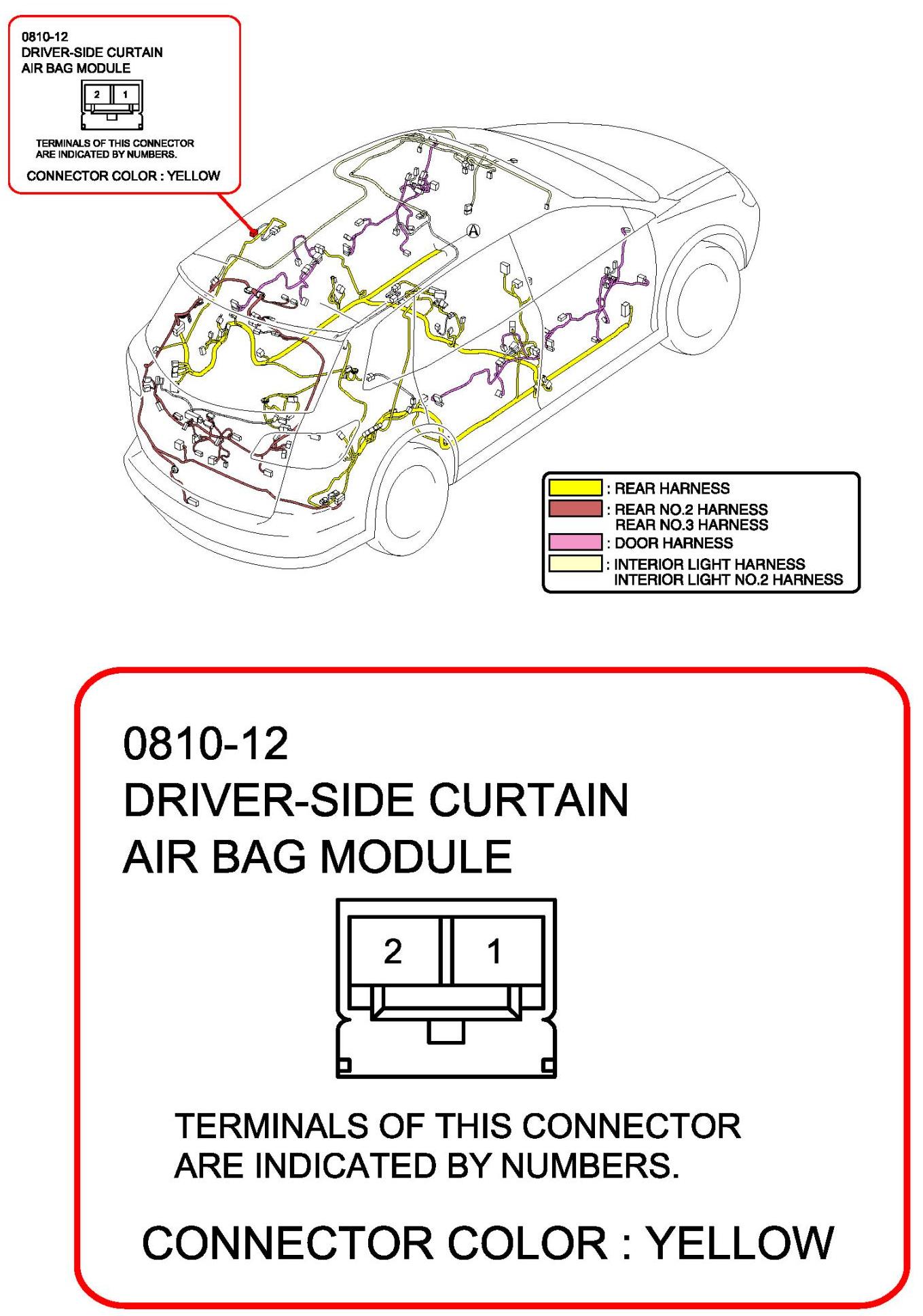

Driver-Side Curtain Air Bag Module:

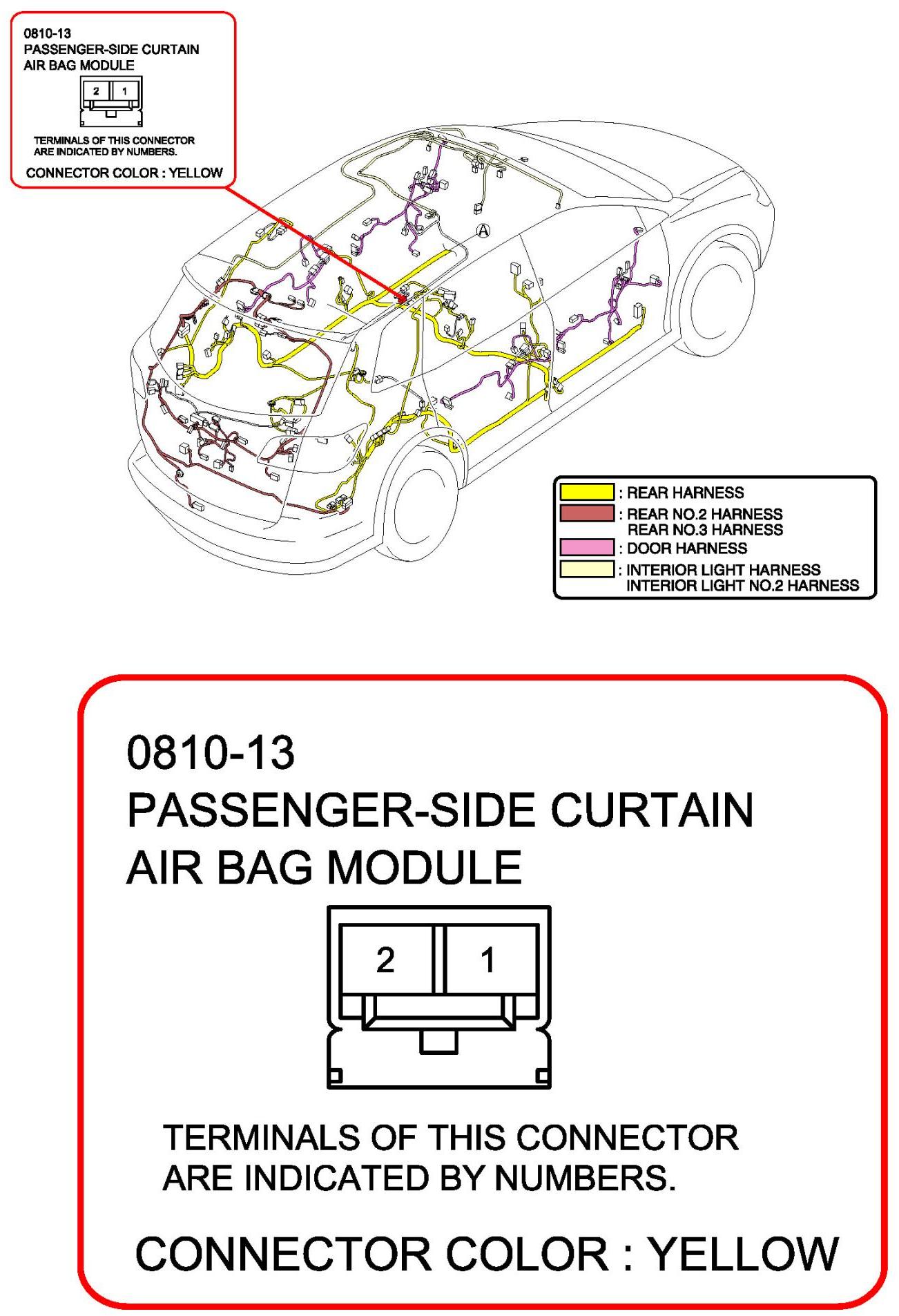

Passenger-Side Curtain Air Bag Module:

SAS Control Module:
