Overhaul

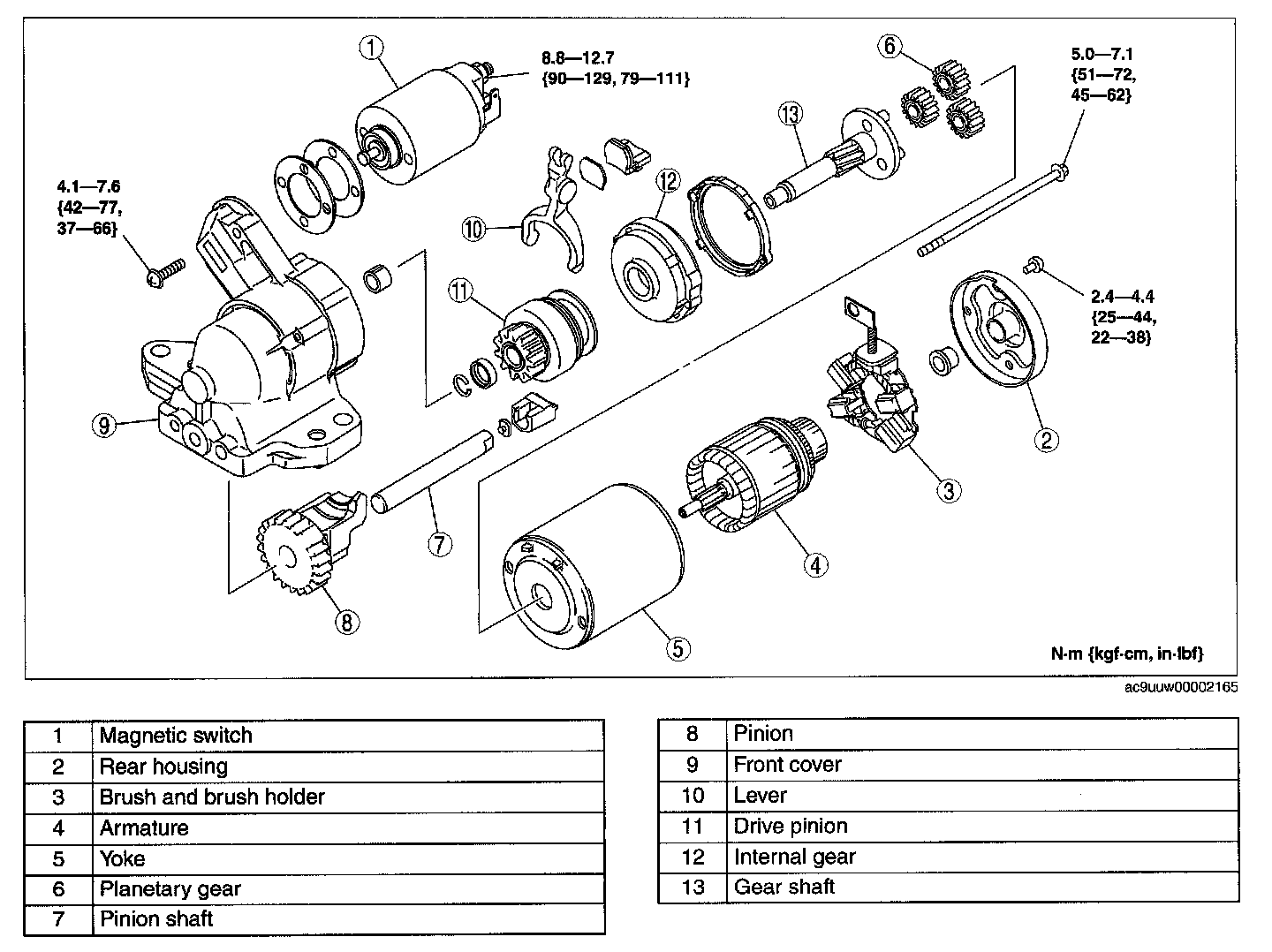

STARTER DISASSEMBLY/ASSEMBLY [MZI-3.5]




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
