Keyless Entry System Wiring Diagram (Advanced Keyless System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry System Wiring Diagram (Advanced Keyless System)

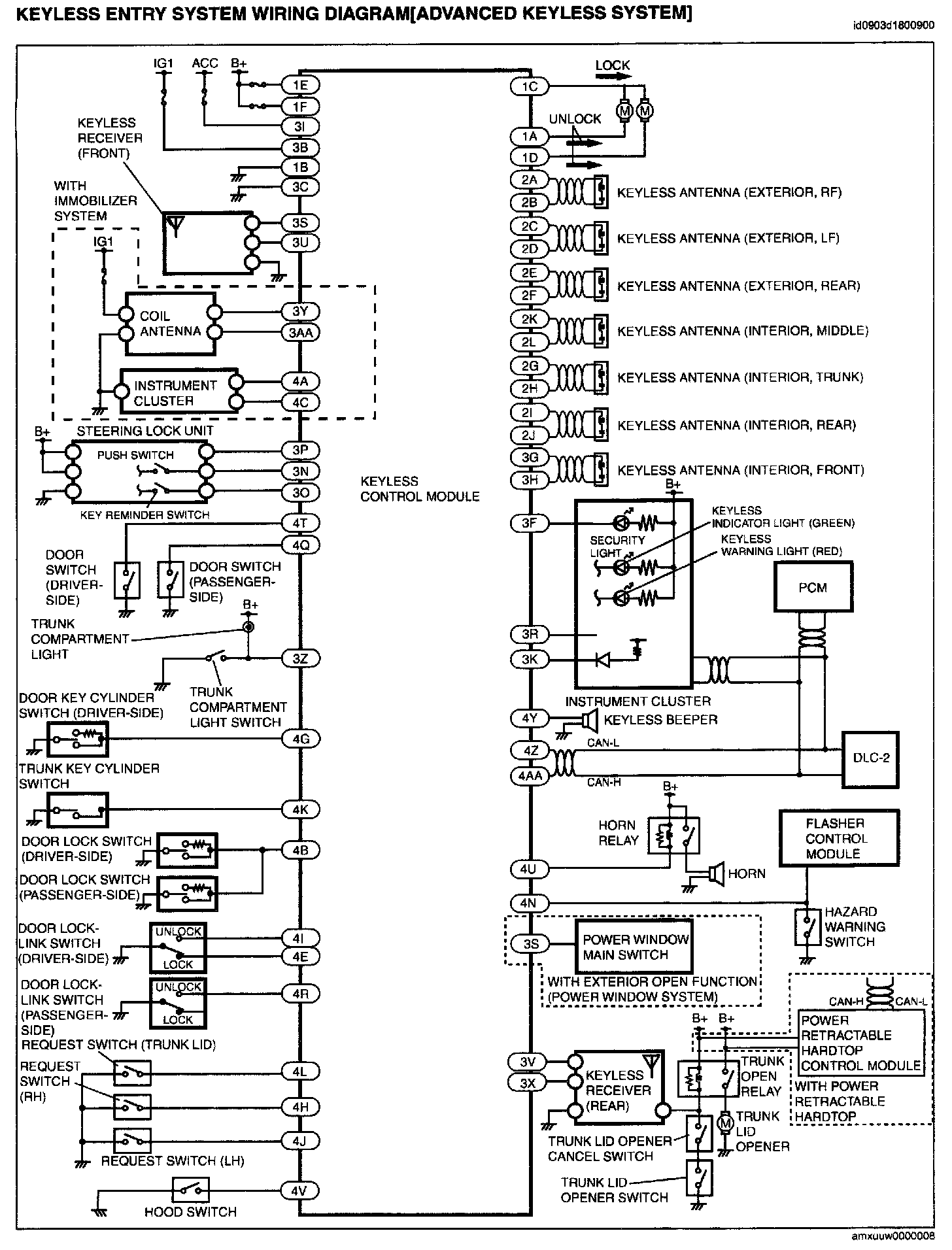

Keyless Entry System Wiring Diagram(Advanced Keyless System):
