Component Tests and General Diagnostics

CLIMATE CONTROL UNIT INSPECTION

1. Turn the ignition switch to the ON position.
2. Connect the negative (-) lead of the tester to body ground.

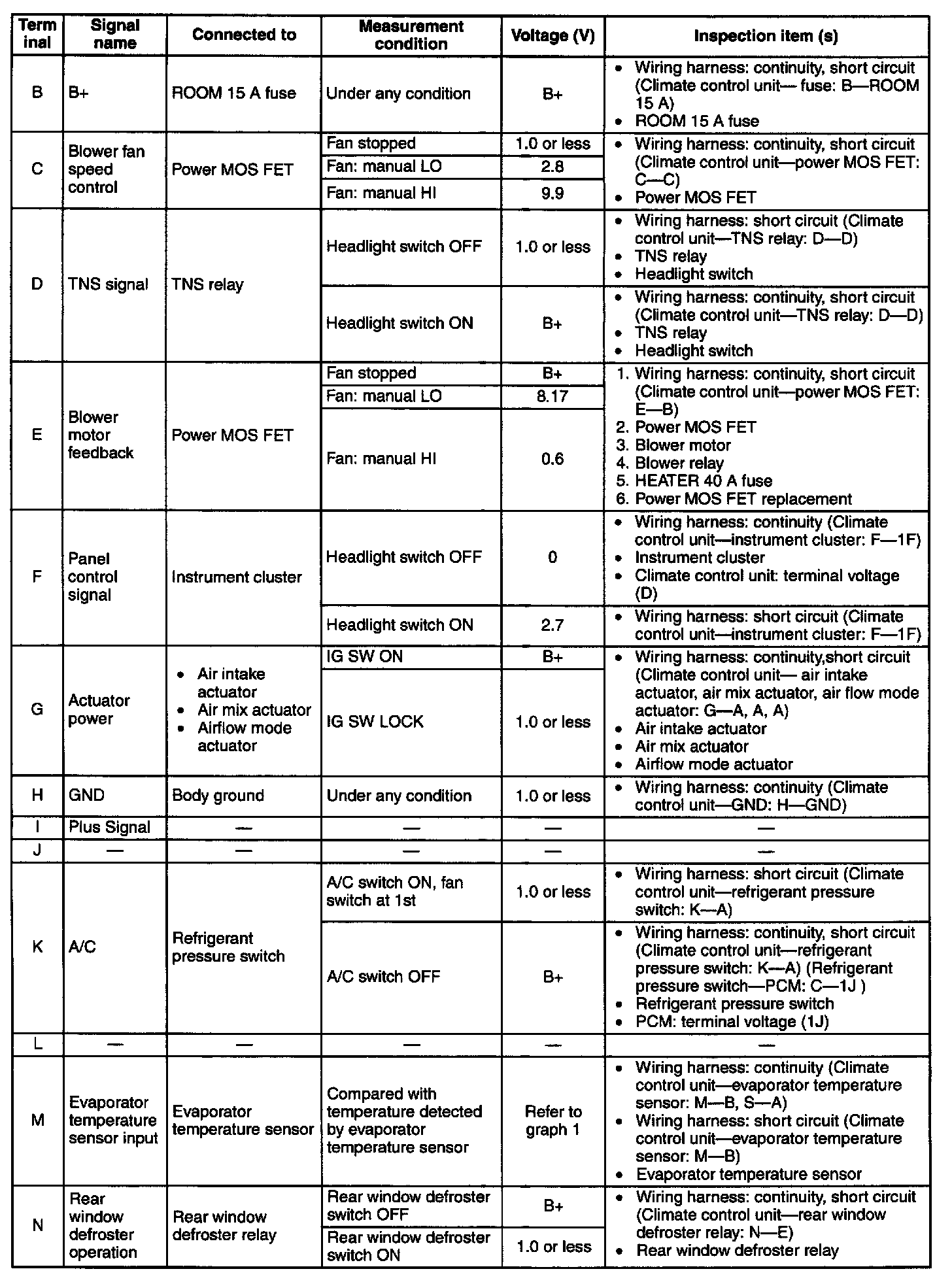

3. By inserting the positive (+) lead of the tester into each climate control unit terminal, measure the voltage according to the terminal voltage table.
- If there is any malfunction, inspect the parts under "Inspection item (s)".

Terminal A:

Terminal B - N:

Terminal O - T:

- If the parts under "Inspection item (s)" are found to be normal, replace the climate control unit.
