System Specifications

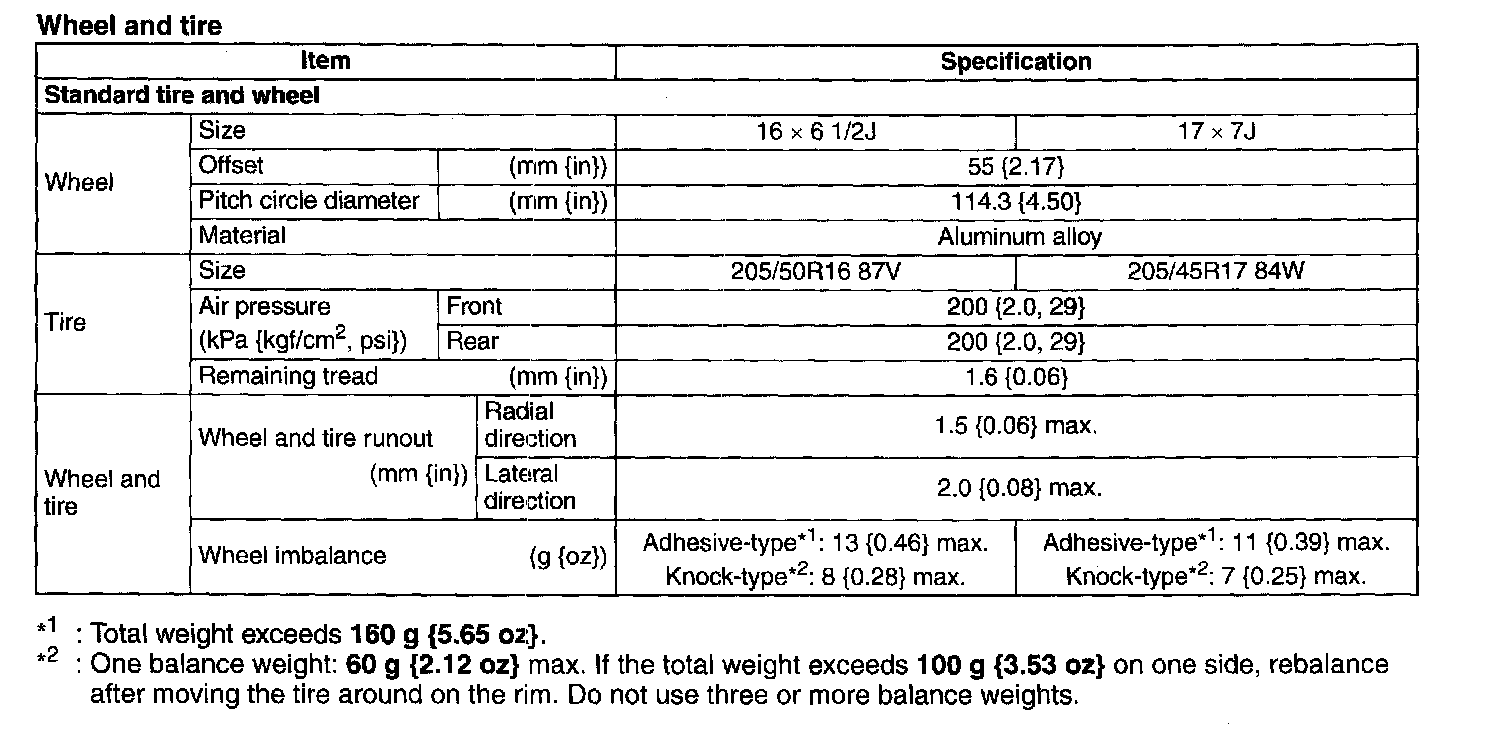

WHEEL AND TIRE SPECIFICATION

Wheel and tire:





*1 Total weight exceeds 160 g (5.65 oz.).
*2 One balance weight: 60 g 12.12 oz) max. If the total weight exceeds 100 g (3.53 oz) on one side, rebalance after moving the tire around on the rim. Do not use three or more balance weights.
