Power Door Lock System And Keyless Entry System Location Index[Advanced Keyless System]

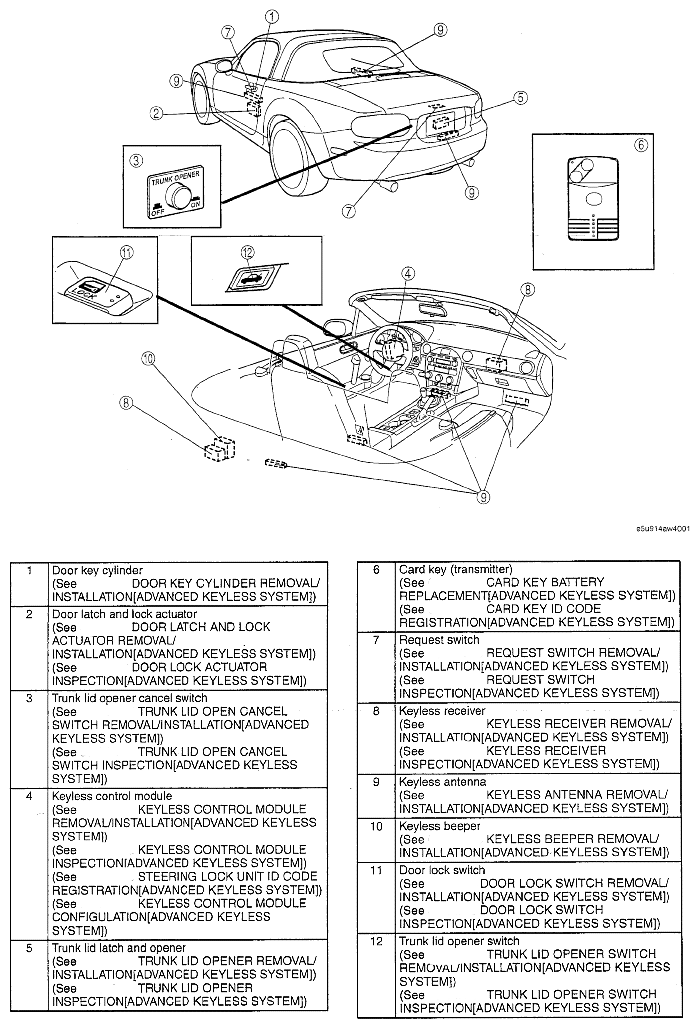

Fig 1: Identifying Power Door Lock System And Keyless Entry System Components Location
G04931302Courtesy of MAZDA MOTORS CORP.
