Foreword

F0REW0RD[L3 WITH TC]

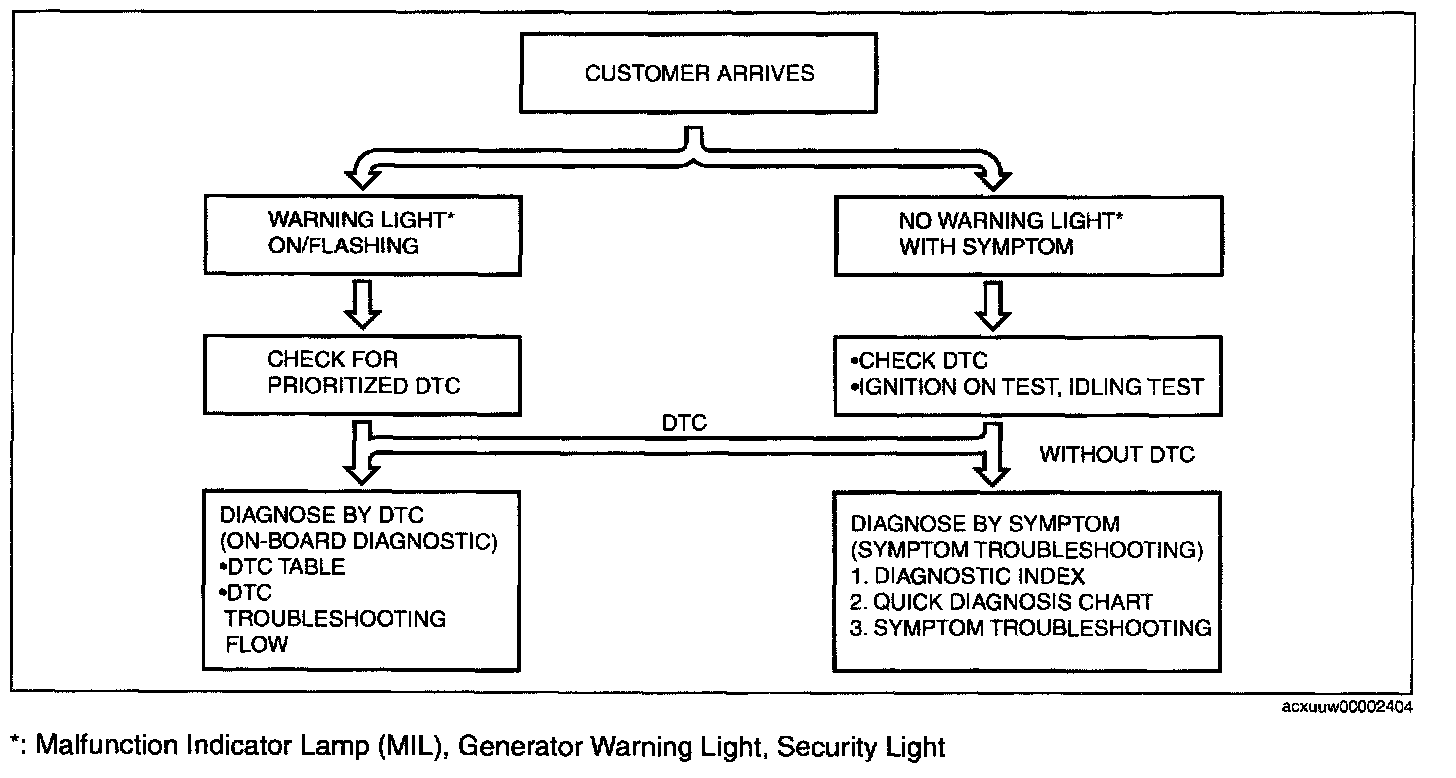

- When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.
- If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE[L3 WITH TC].) Diagnostic Trouble Code Descriptions
- If a DTC does not exist and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART[L3 WITH TC].) Quick Diagnostic Chart
