Quick Diagnostic Chart

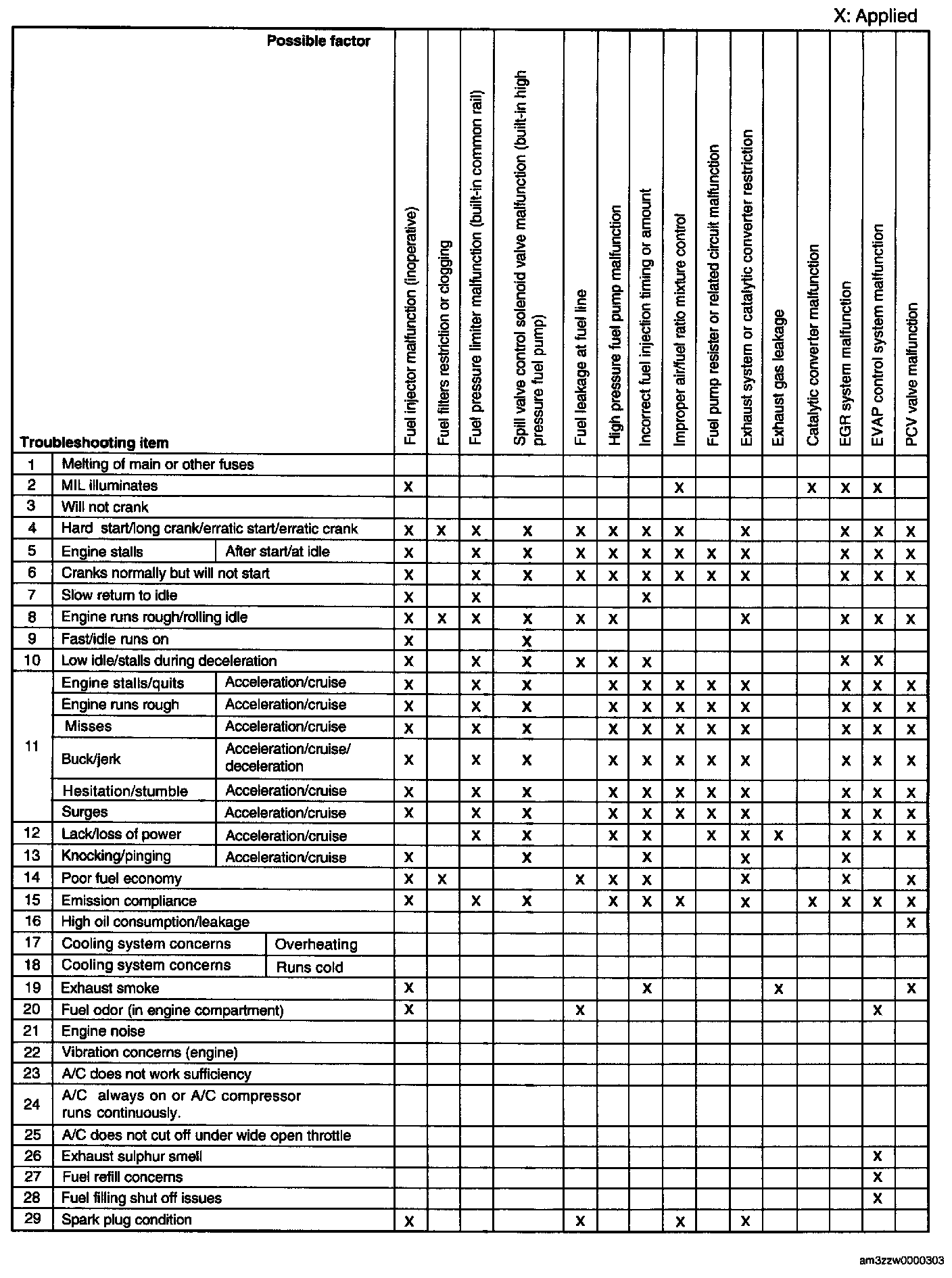

Quick Diagnostic Chart[L3 With TC) Part 1:

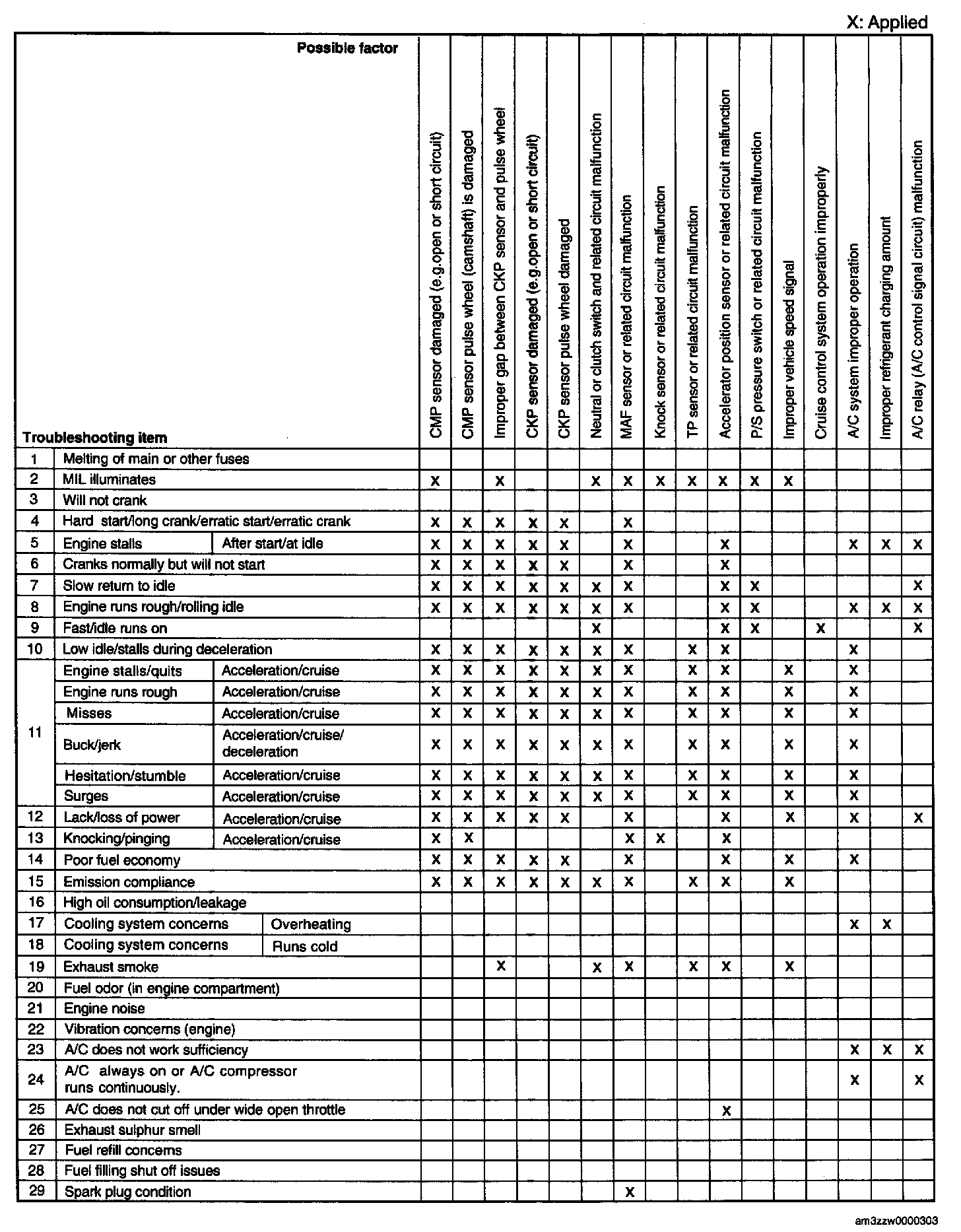

Quick Diagnostic Chart[L3 With TC) Part 2:

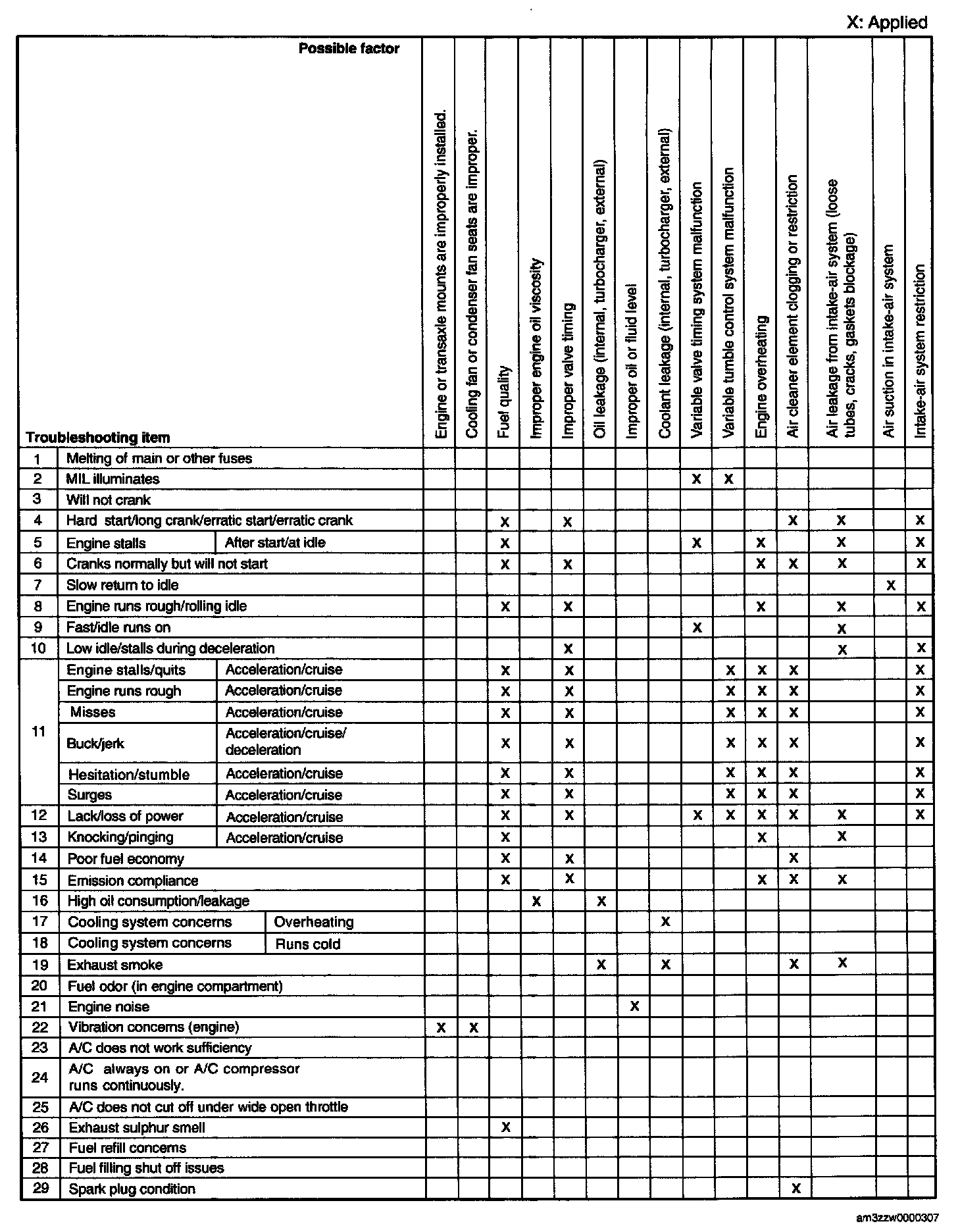

Quick Diagnostic Chart[L3 With TC) Part 3:

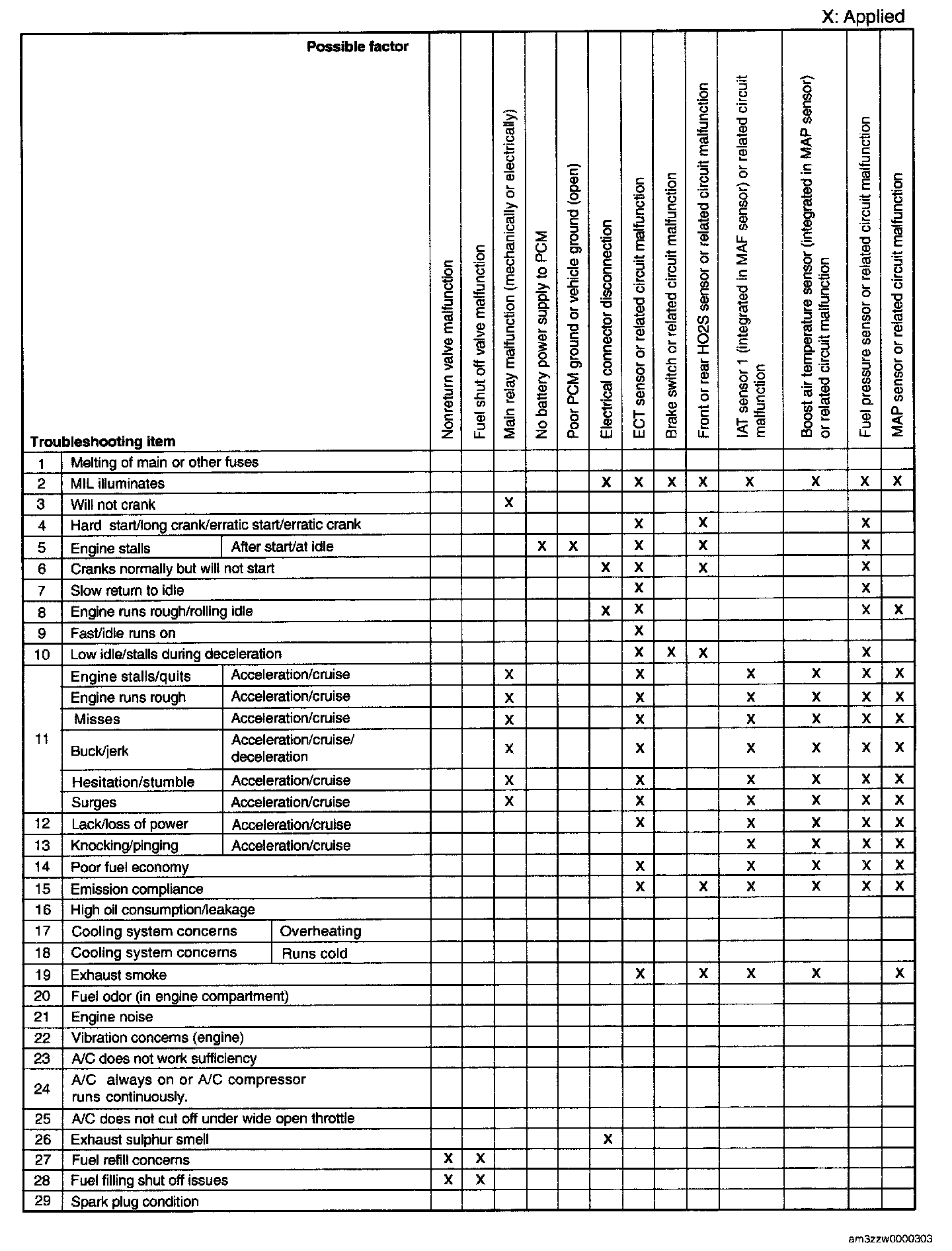

Quick Diagnostic Chart[L3 With TC) Part 4:

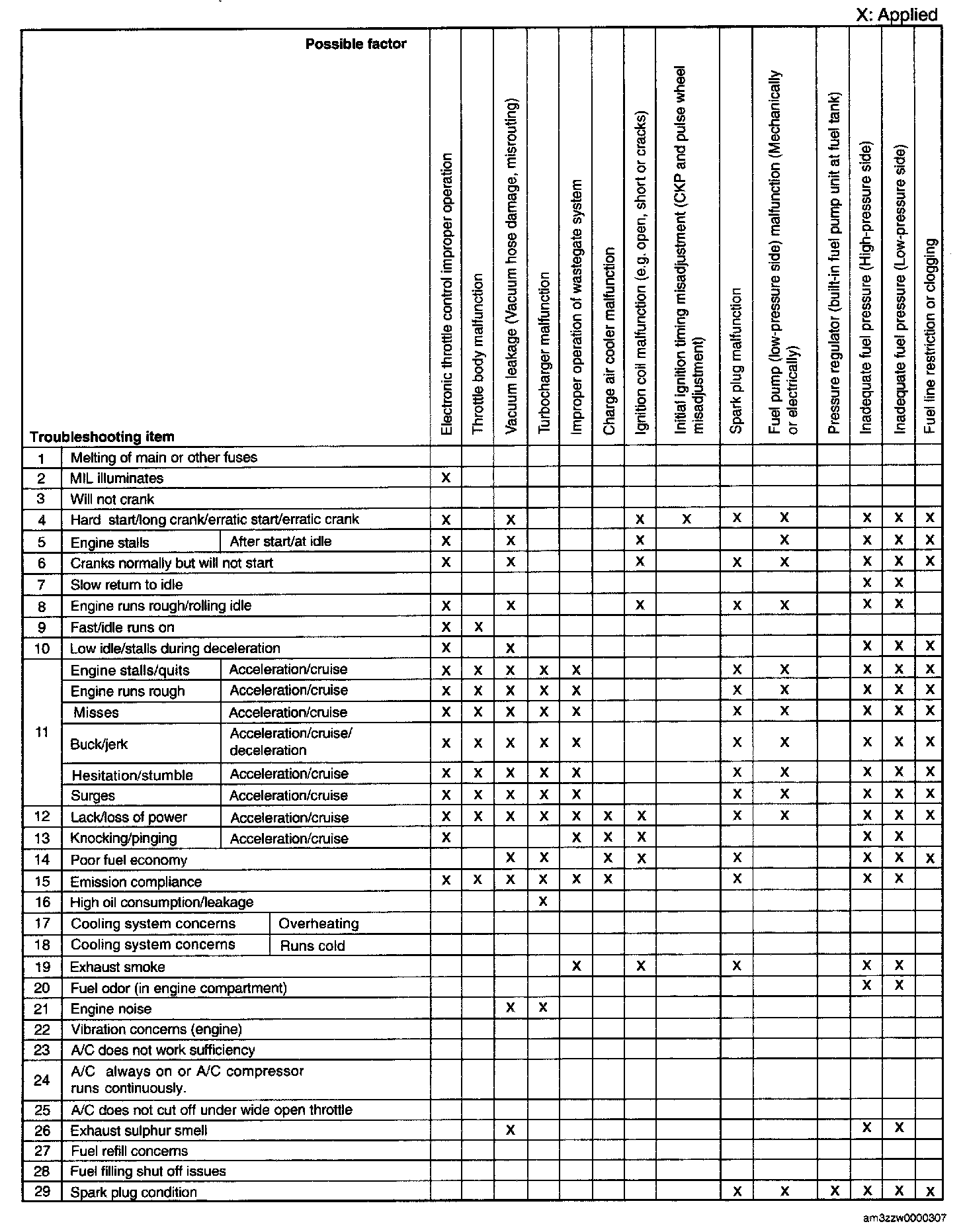

Quick Diagnostic Chart(L3 With TC) Part 5:

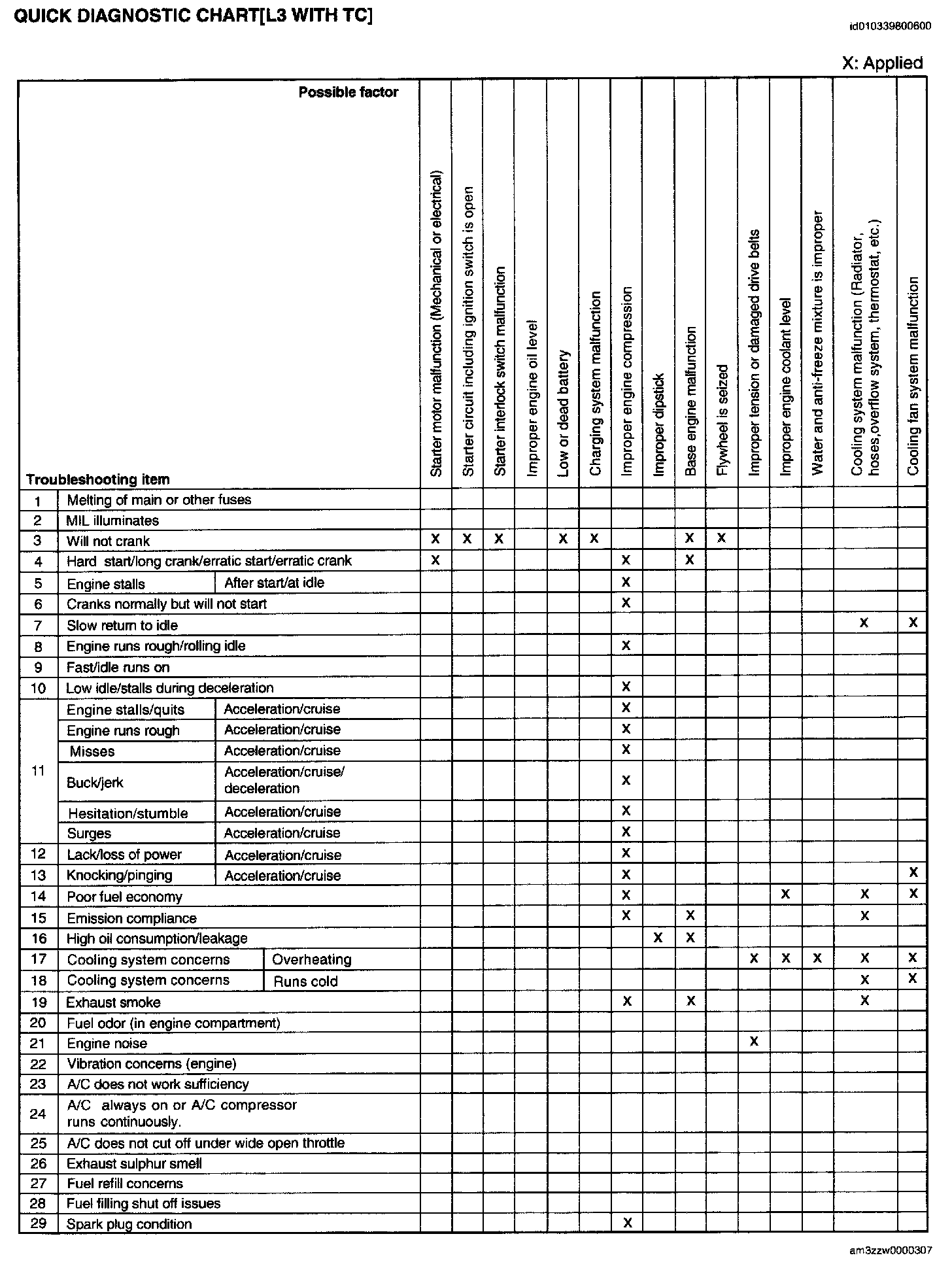

Quick Diagnostic Chart[L3 With TC) Part 6:

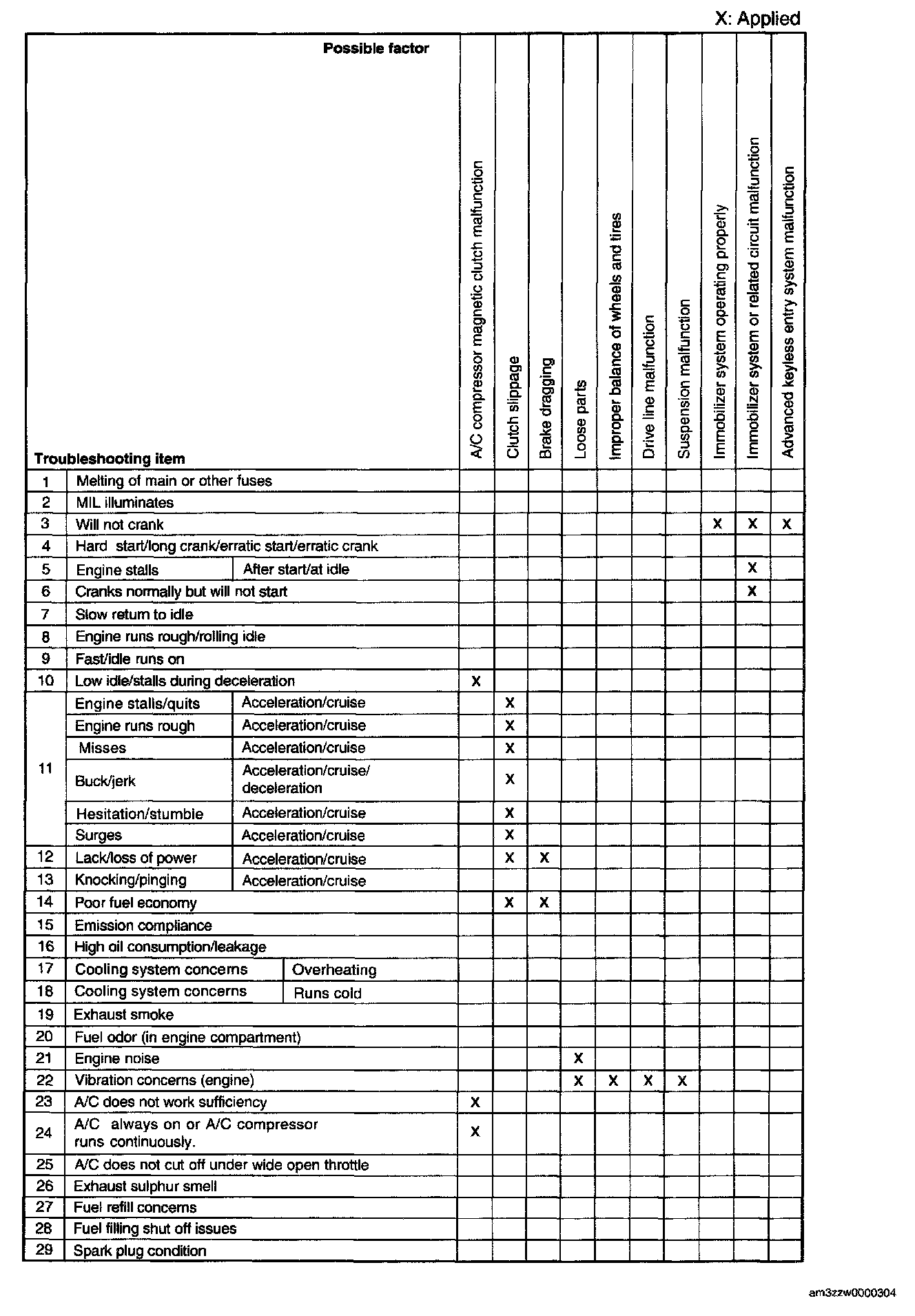

Quick Diagnostic Chart[L3 With TC) Part 7:
