Wheel Alignment

SUSPENSION TECHNICAL DATA

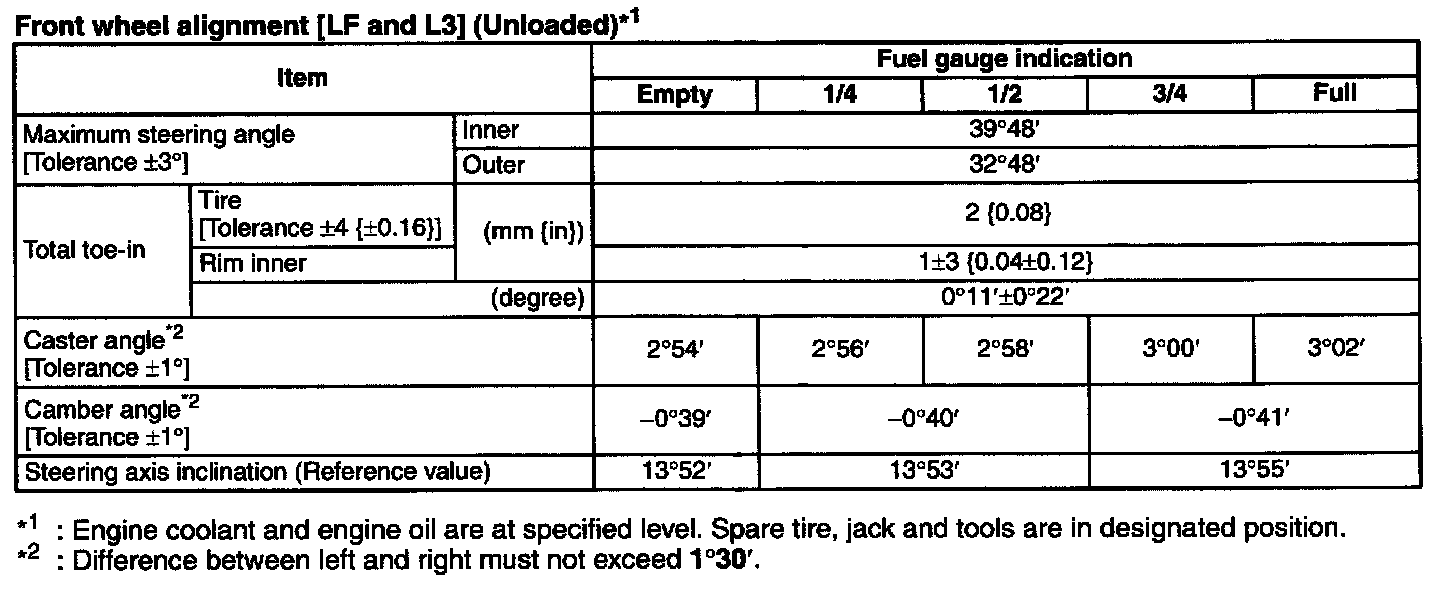

Front wheel alignment [LF and L3] (Unloaded)*1

Front Wheel Alignment [LF And L3] (Unloaded):

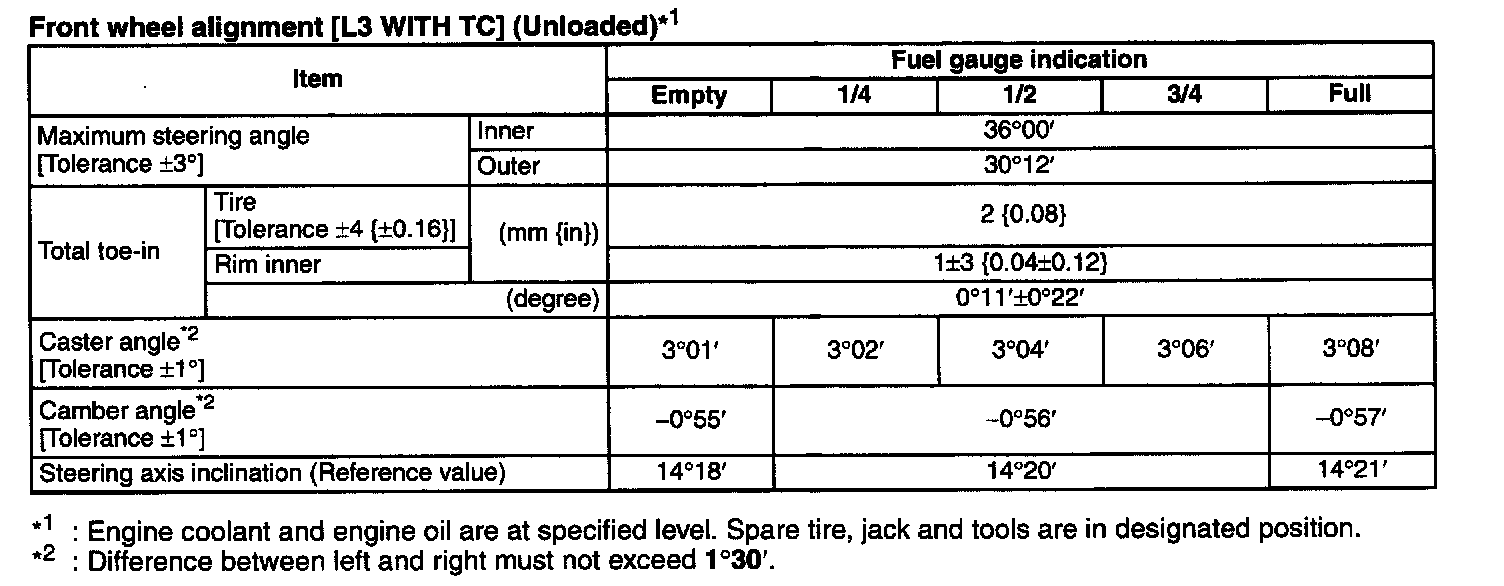

Front wheel alignment [L3 WITH TC] (Unloaded)*1

Front Wheel Alignment [L3 With TC] (Unloaded):

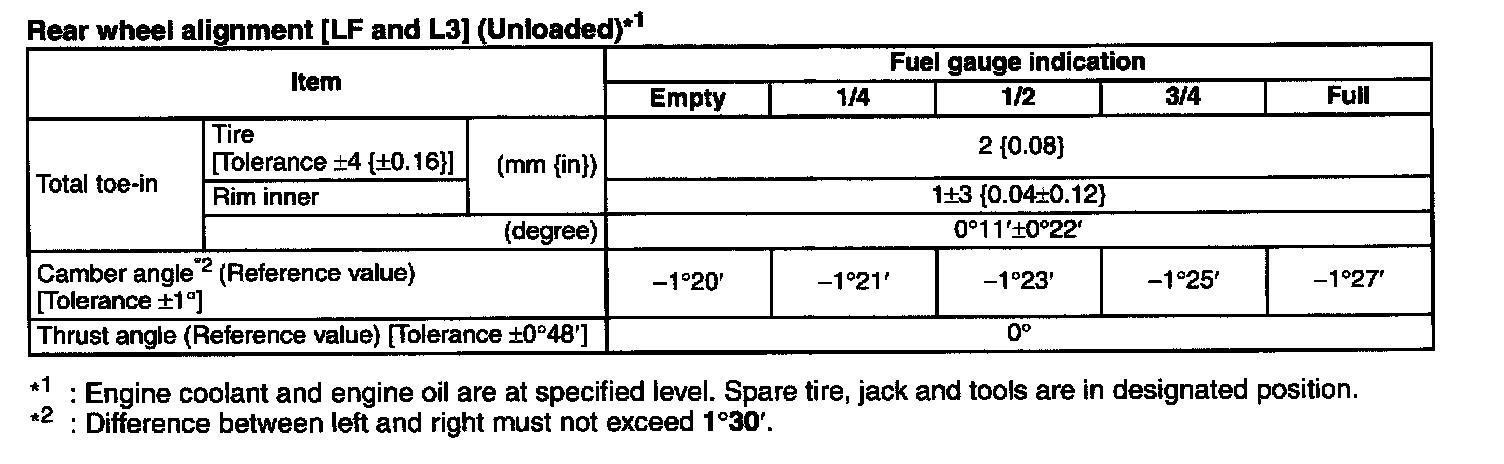

Rear wheel alignment [LF and L3] (Unloaded)*1

Rear Wheel Alignment [LF And L3] (Unloaded):

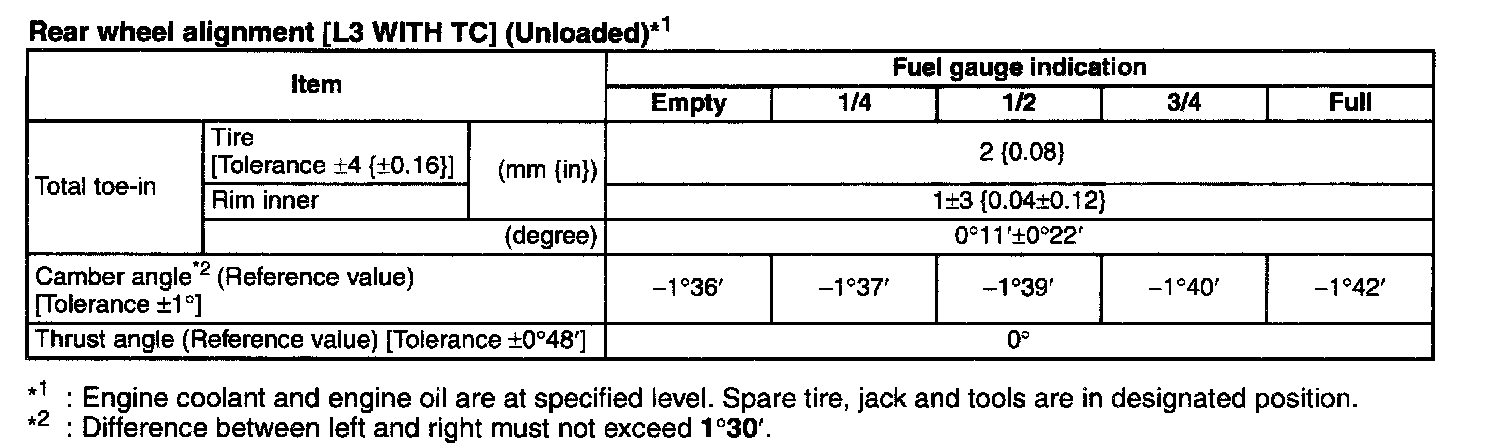

Rear wheel alignment [L3 WITH TC] Unloaded)*1

Rear Wheel Alignment [L3 With TC] (Unloaded):
