Rear Bearing Snap Ring Assembly Note

Rear Bearing Snap Ring Assembly Note





1. Install a new snap ring to the primary shaft.

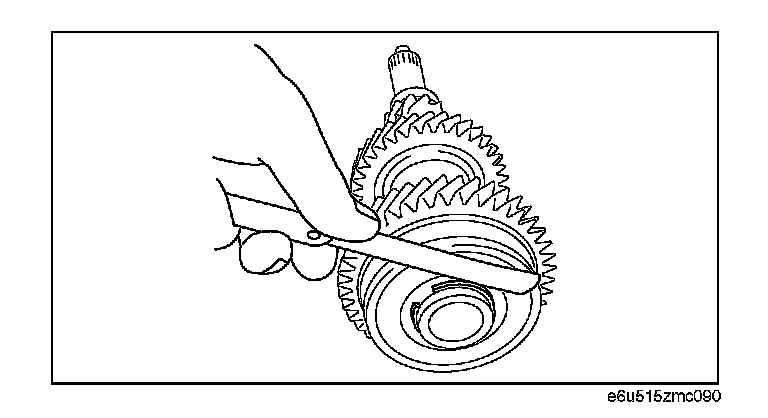

2. Measure the clearance between the snap ring and the rear bearing inner race.
^ If not within the specification, adjust it by selecting a proper snap ring from below.

Clearance between primary shaft rear bearing and snap ring:
0.0 - 0.1 mm (0.0000 - 0.0039 in)

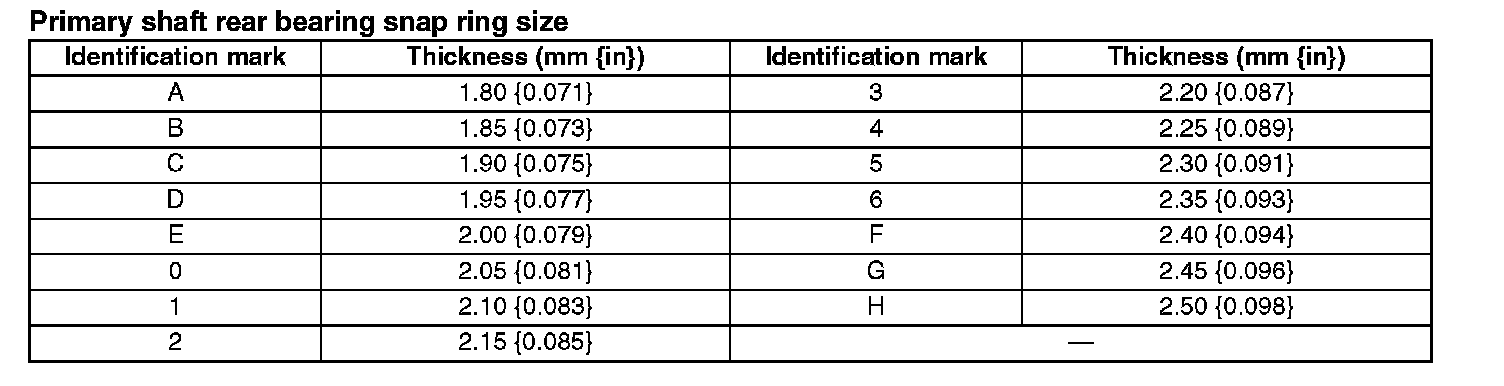

Primary shaft rear bearing snap ring size
