System Schematic

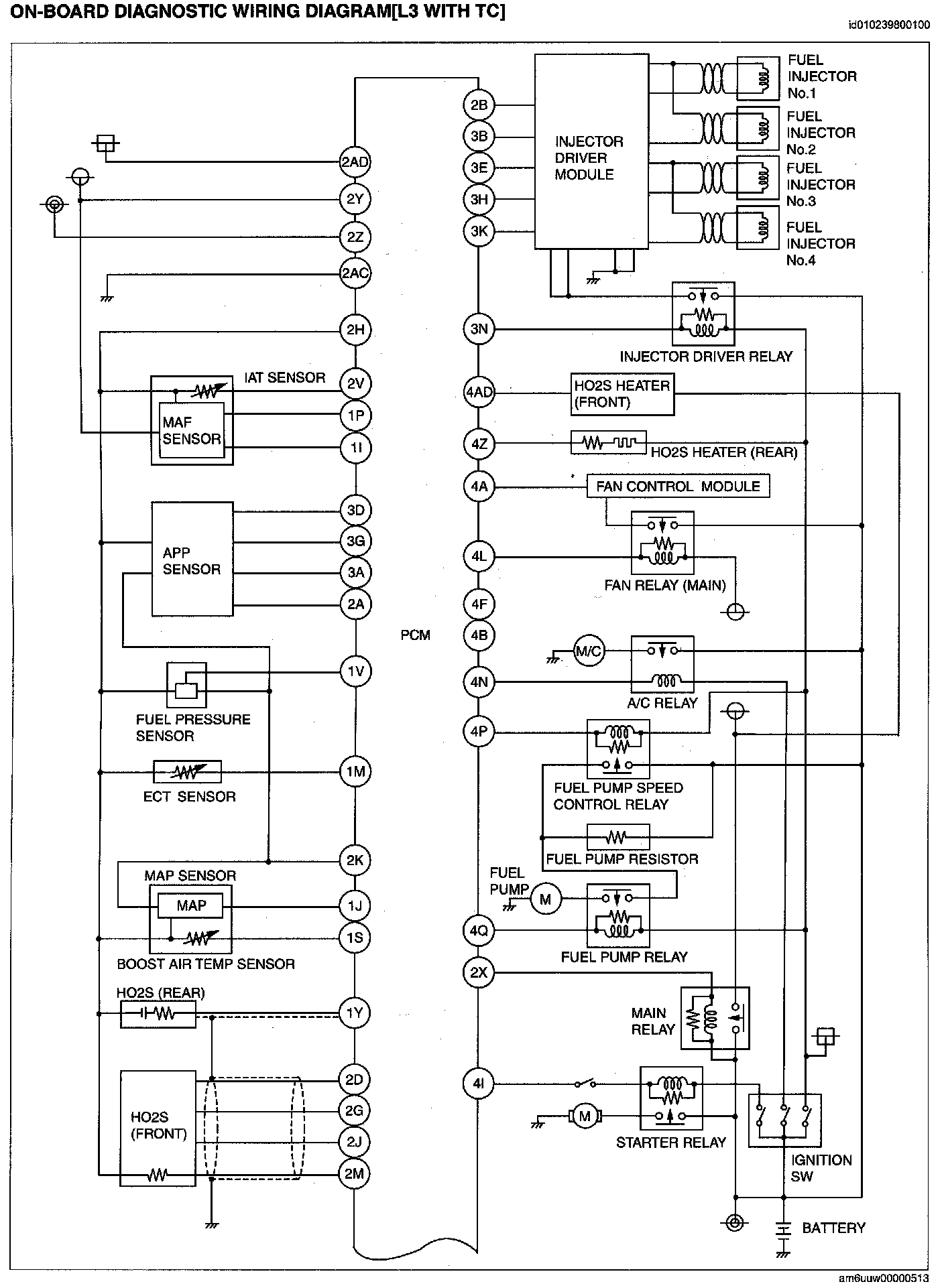

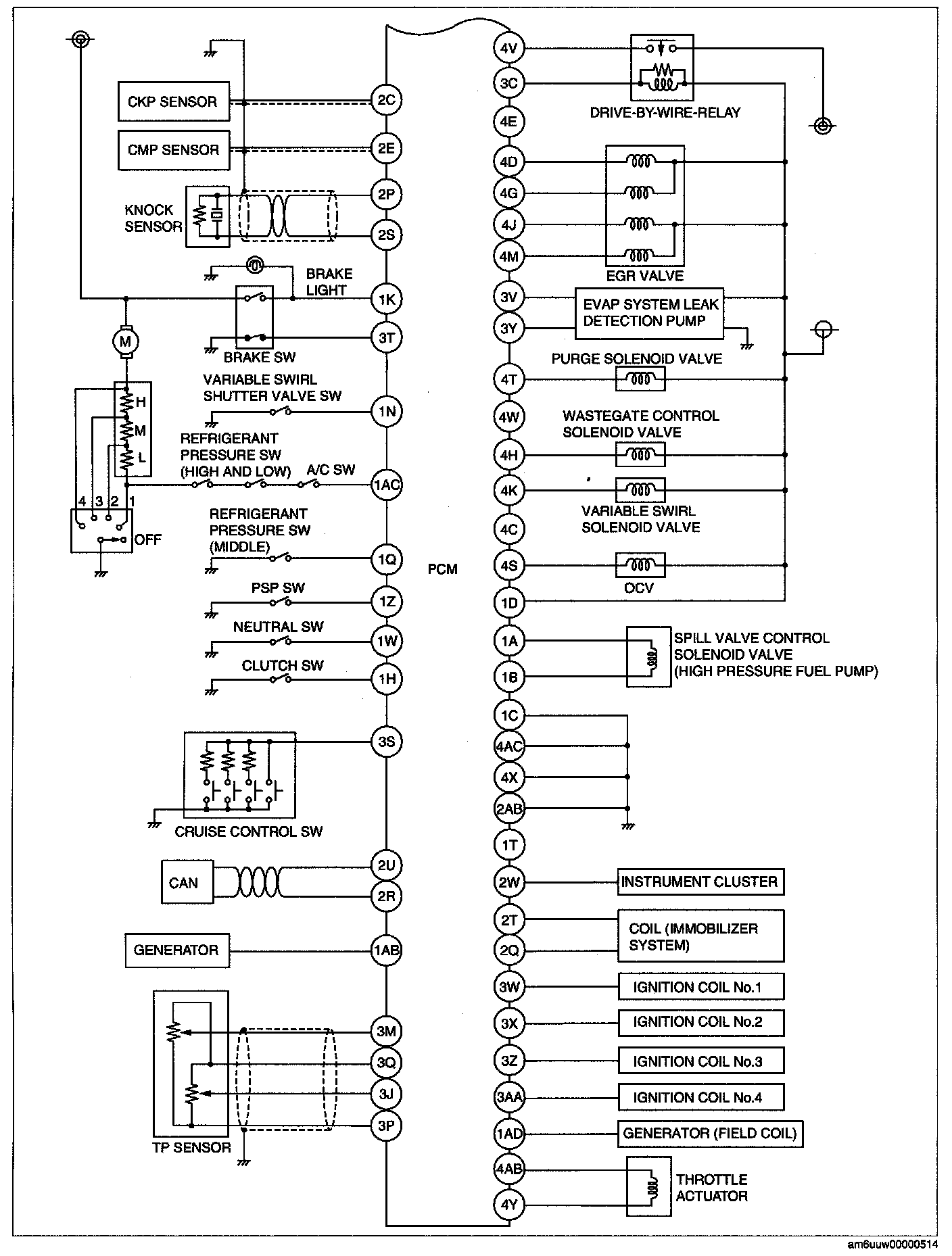

On-Board Diagnostic Wiring Diagram[L3 With TC]:



On-Board Diagnostic Wiring Diagram[L3 With TC] (Part 2):

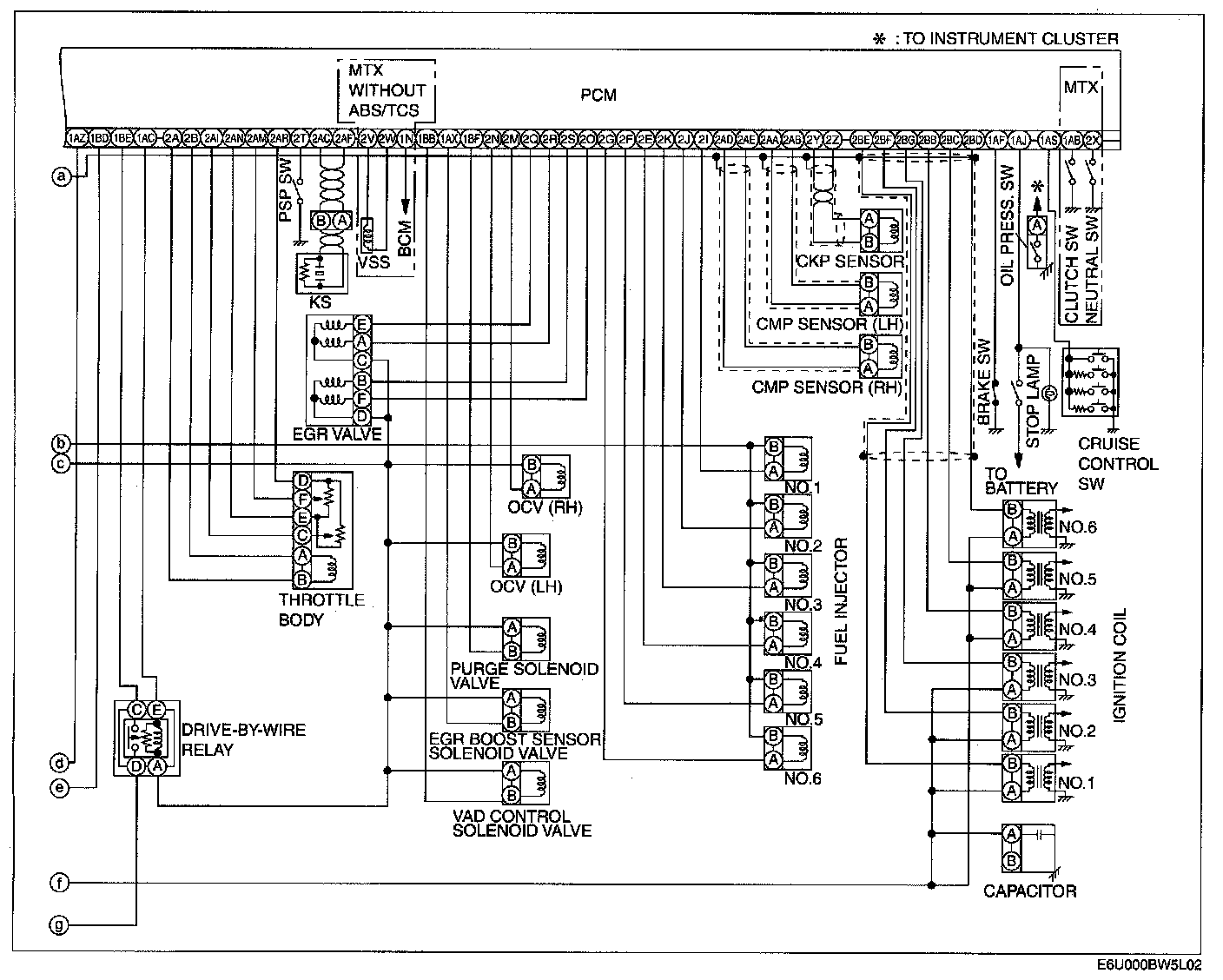

Control System Wiring Diagram (Part1):

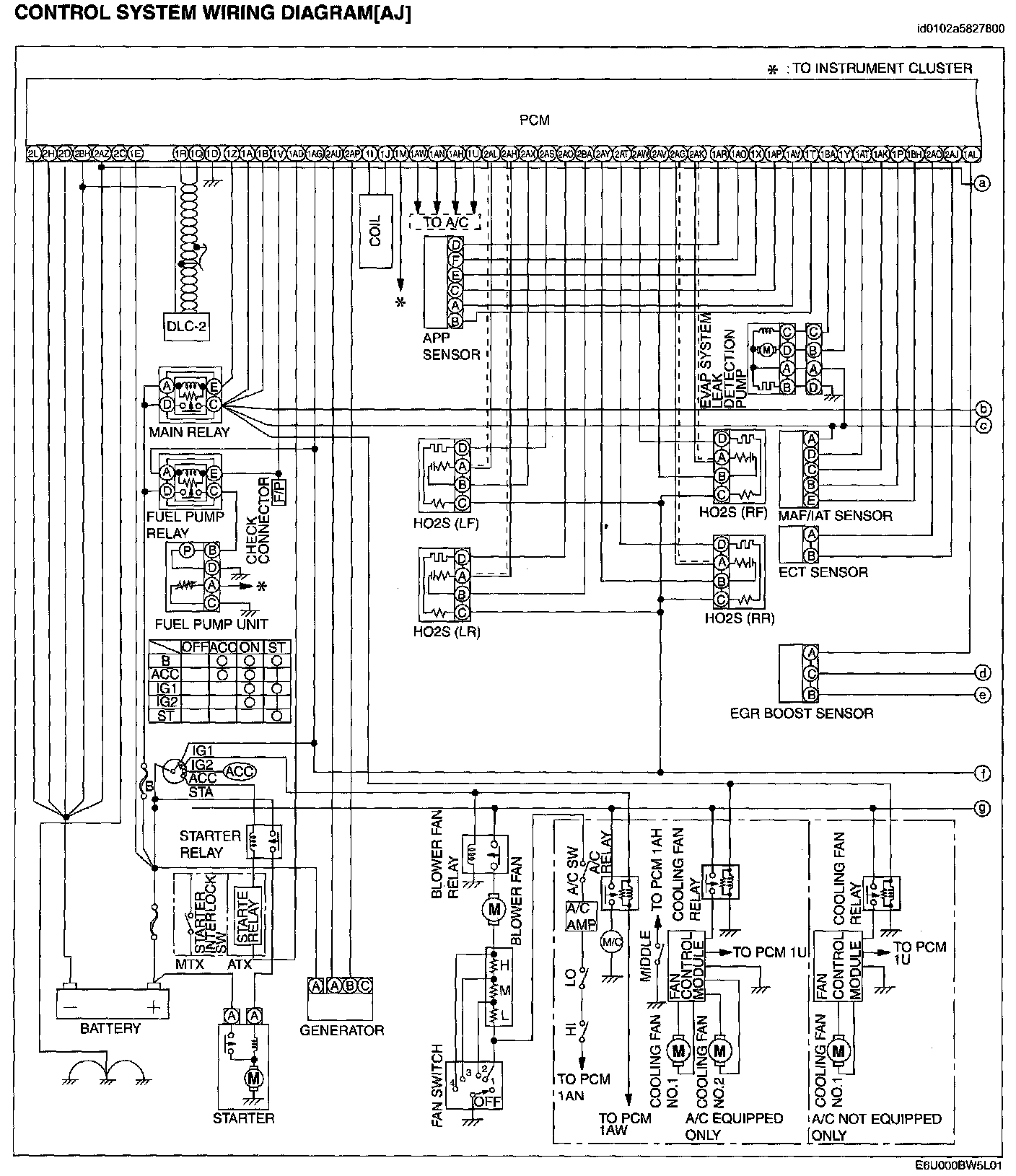

Control System Wiring Diagram (Part 2):
