Disassembly and Assembly

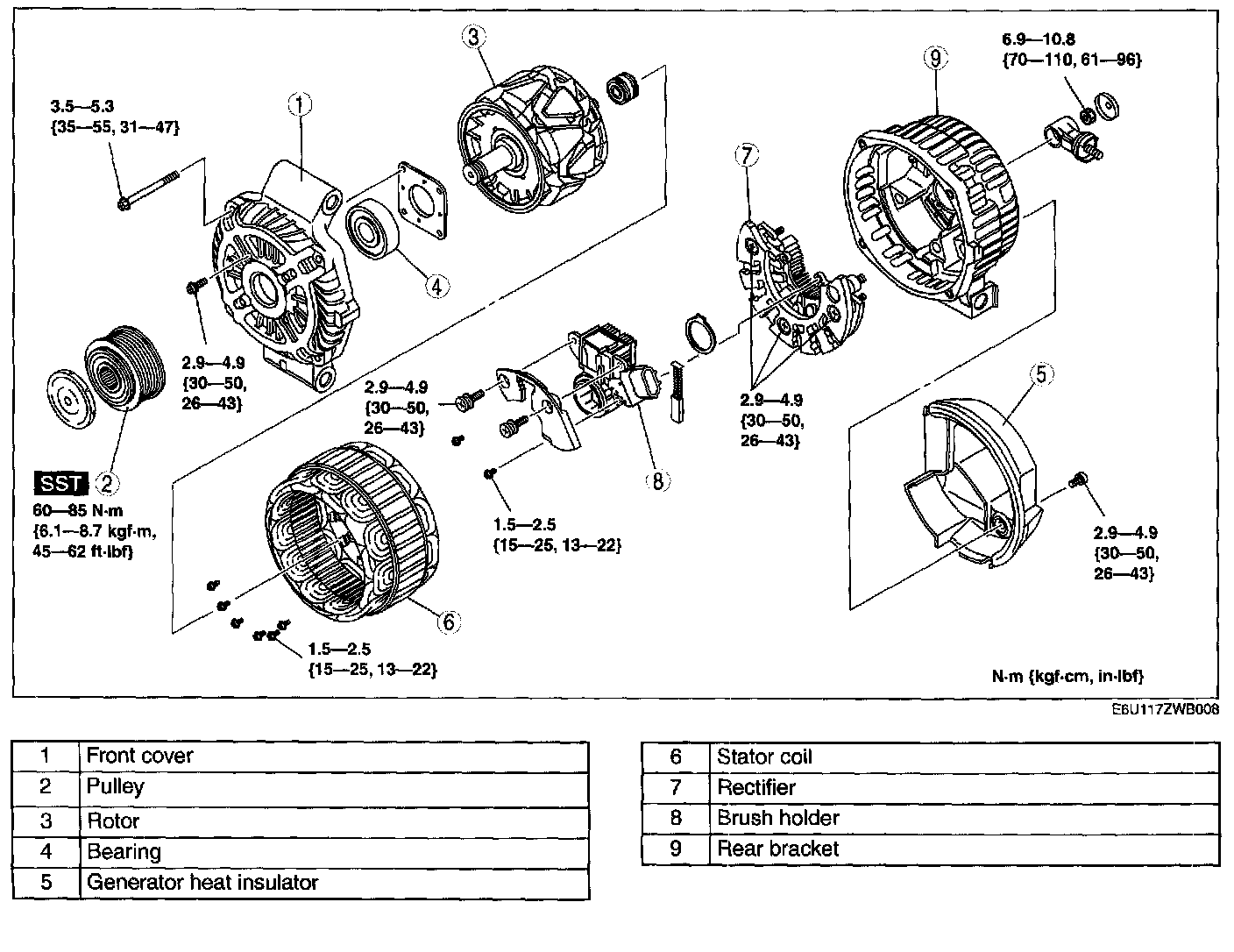

GENERATOR DISASSEMBLY/ASSEMBLY [L3 WITH TC]

CAUTION: Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Pulley Disassembly/Assembly Note




1. DISASSEMBLY/ASSEMBLY the pulley using the SST.

Tightening torque 60-85 N.m (6.1-8.7 kgf-m, 45-62 ft-lbf)
