Overhaul

STARTER DISASSEMBLY/ASSEMBLY[L3 WITH TC]

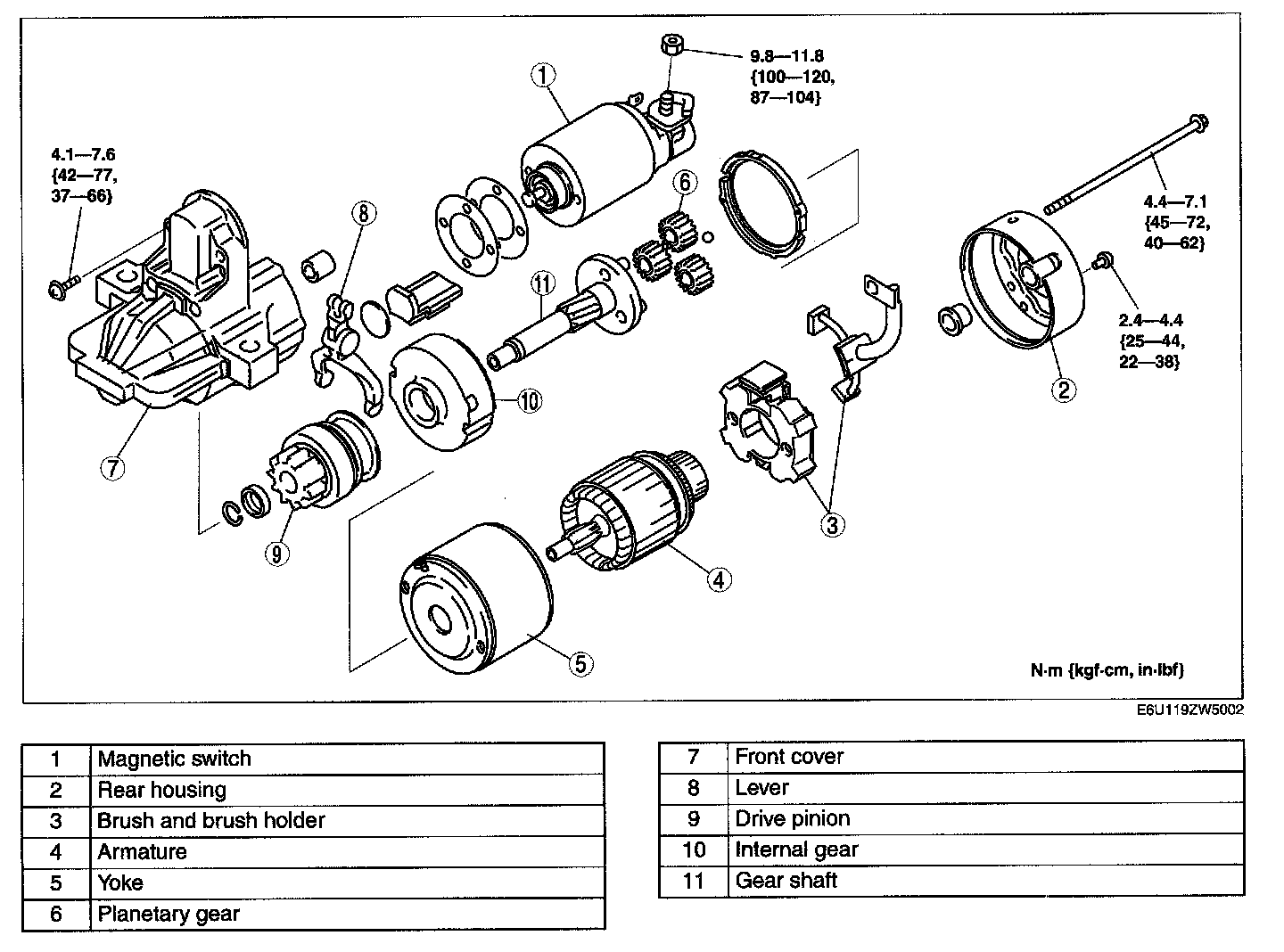

Starter Disassembly/Assembly [L3 With TC]:




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
