Generator Disassembly/Assembly

  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

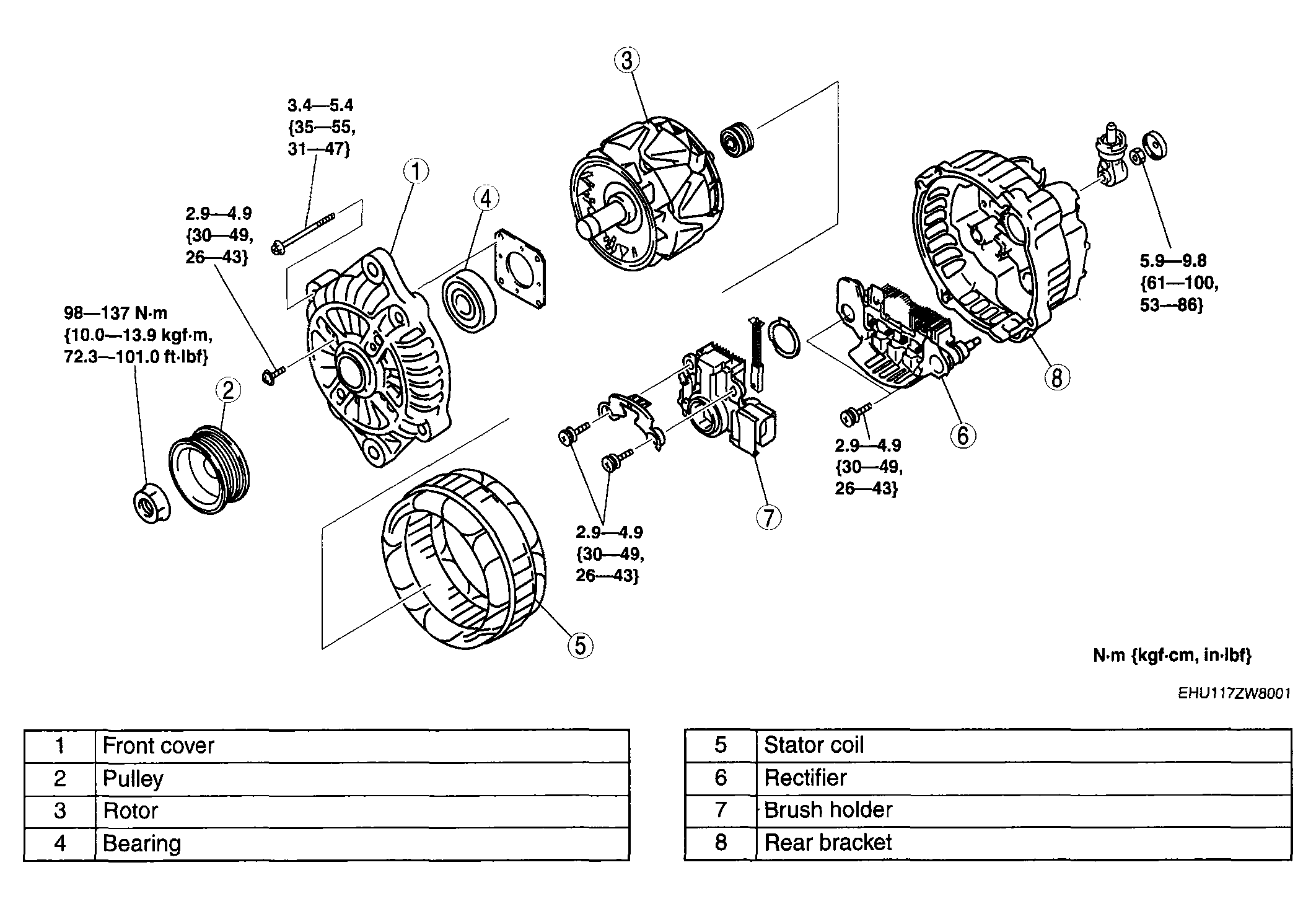

    Fig 1: Disassembling Generator With Torque Specifications
    G04562938Courtesy of MAZDA MOTORS CORP.
