Starter Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

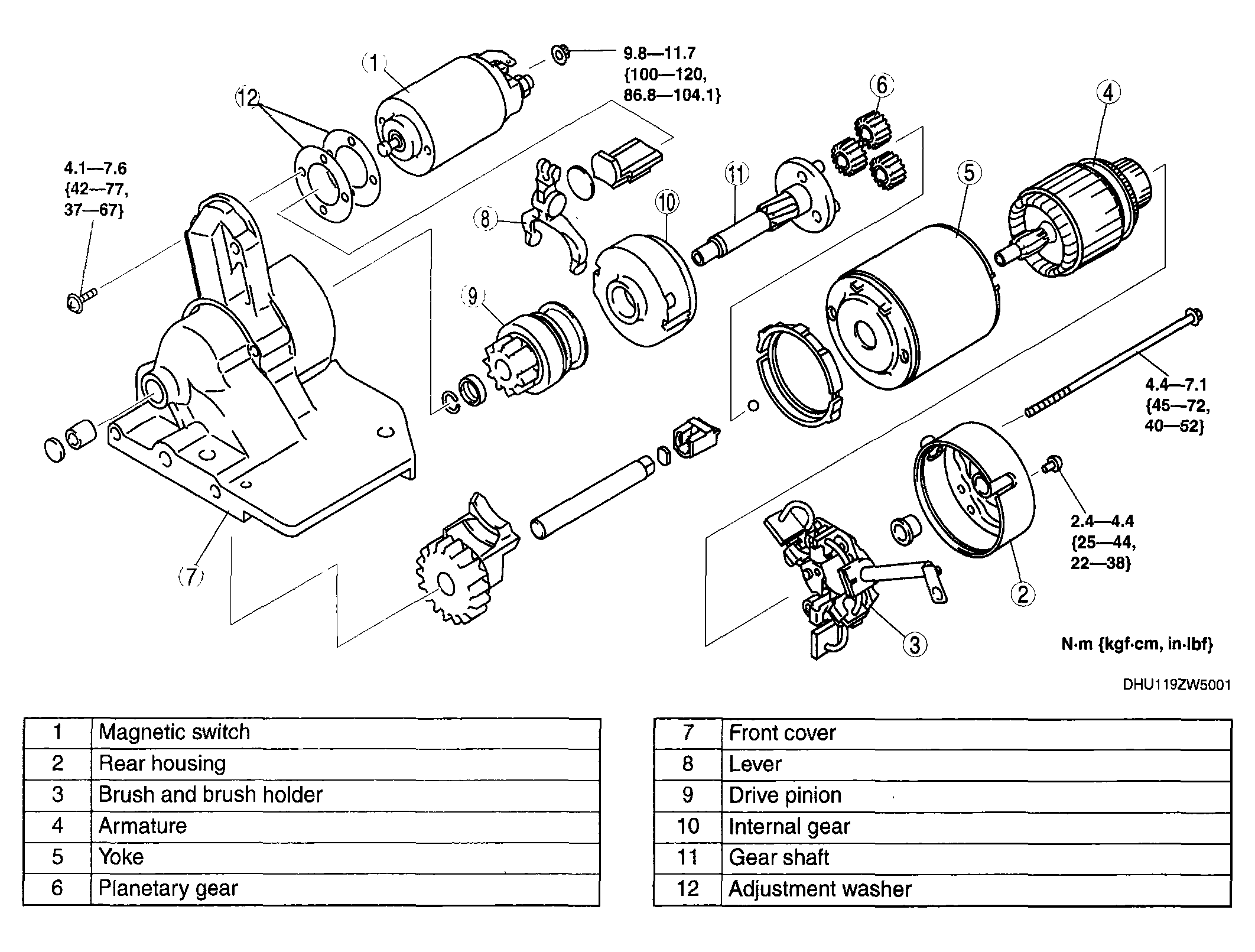

    Fig 1: Disassembling Starter - AT - With Torque Specifications
    G04562965Courtesy of MAZDA MOTORS CORP.

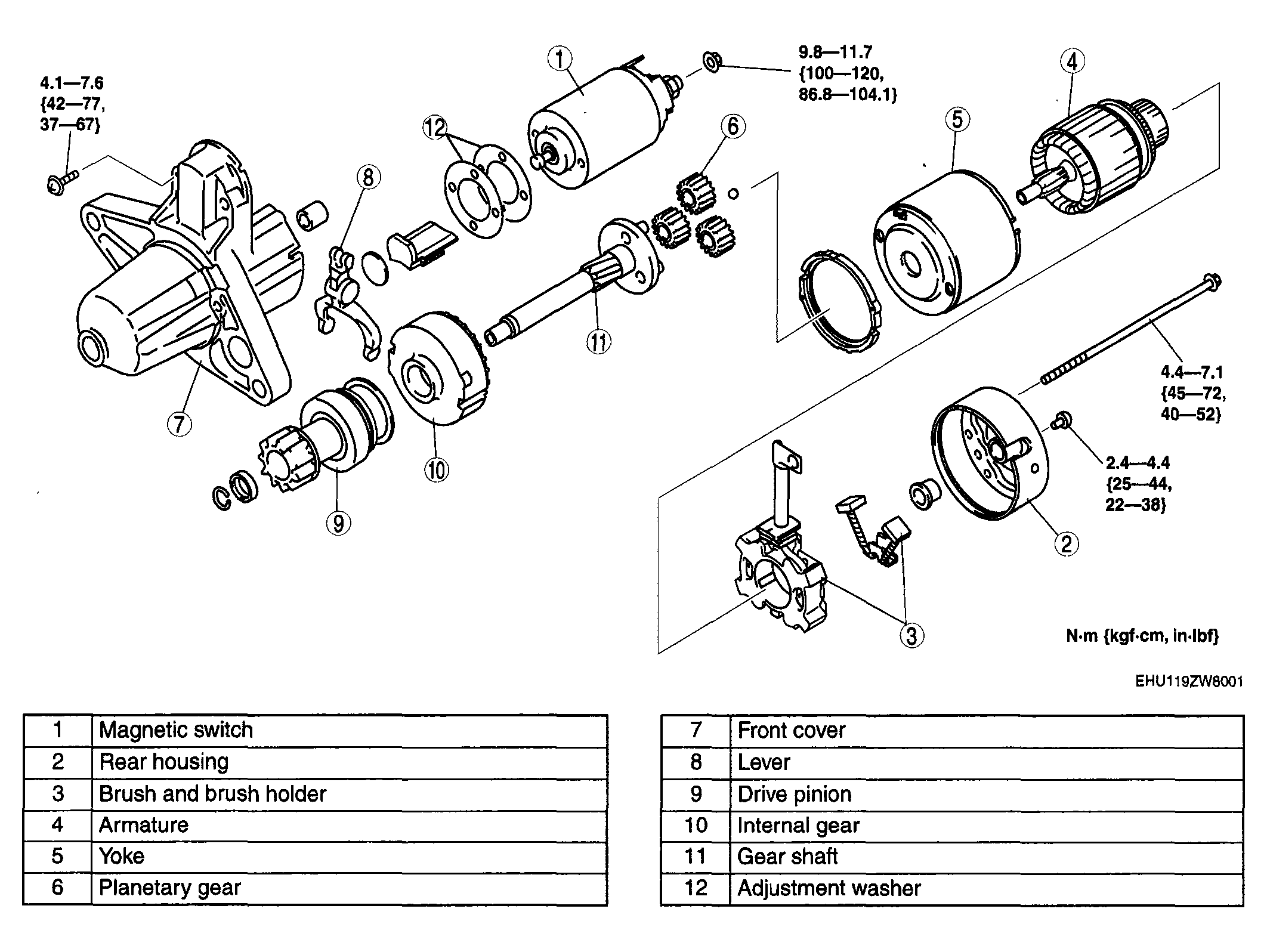

    Fig 2: Disassembling Starter - MT - With Torque Specifications
    G04562966Courtesy of MAZDA MOTORS CORP.
