Location Index

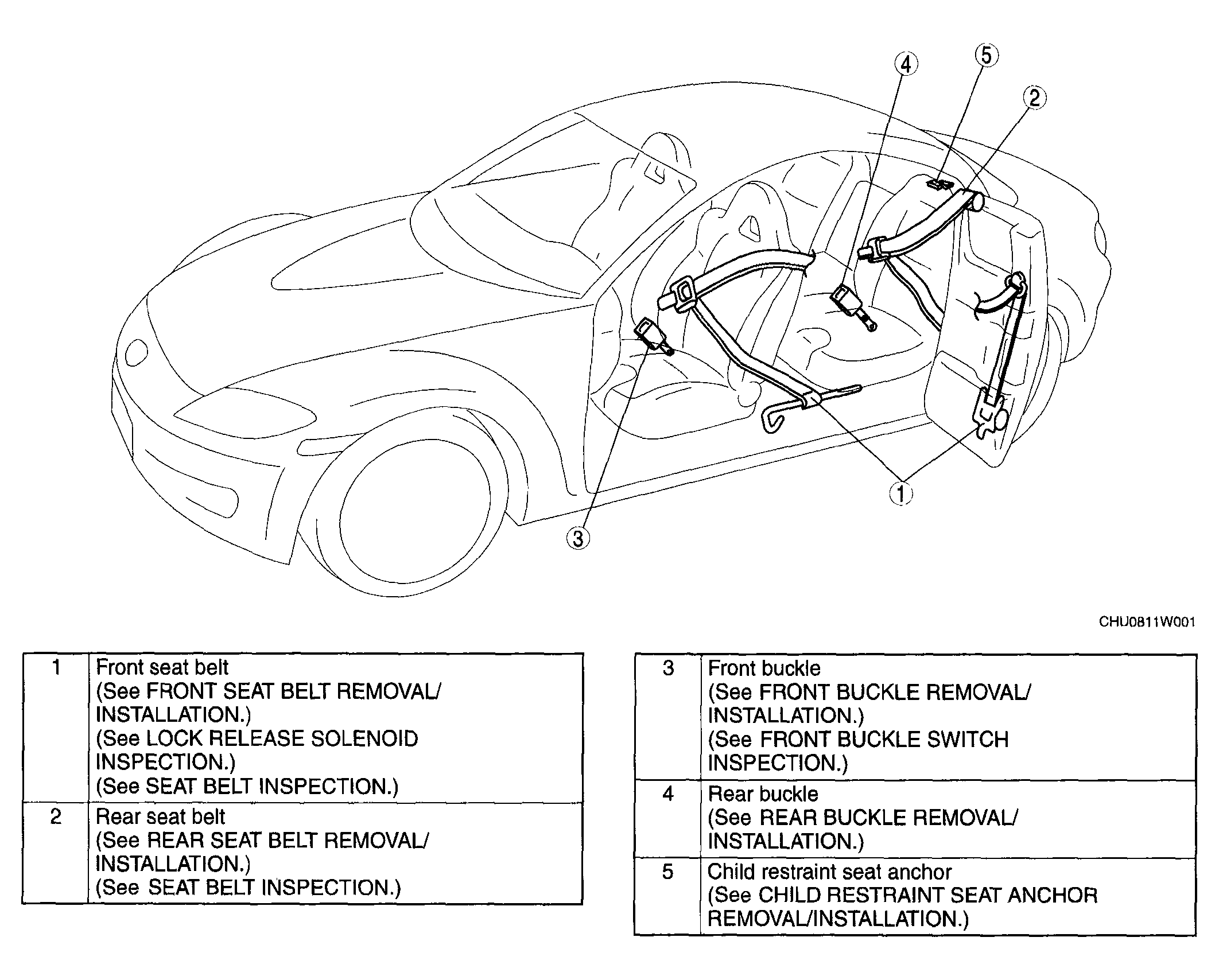

Fig 1: Seat Belt Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
