PID/Data Monitor Table[Advanced Keyless System]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

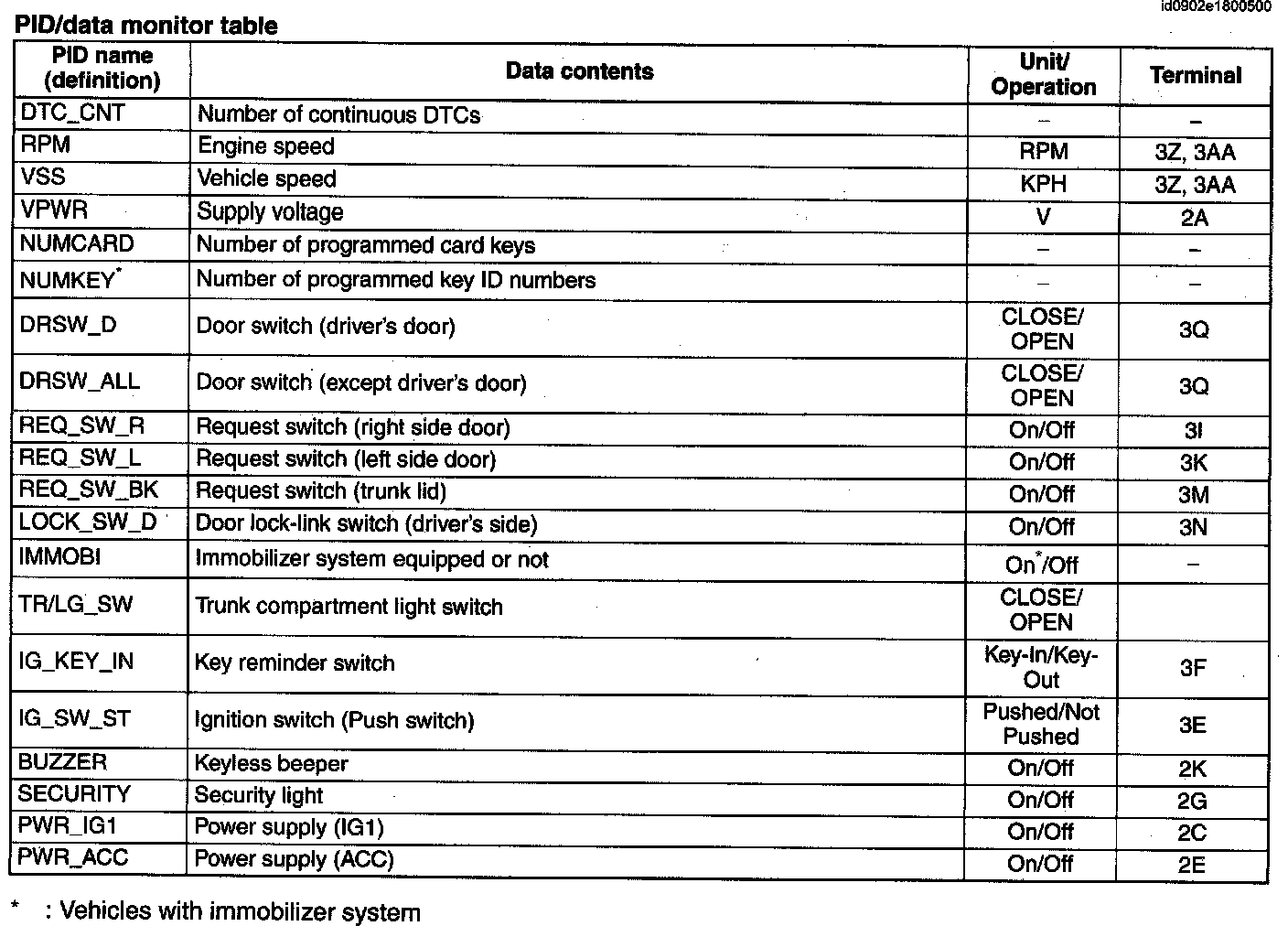

PID/Data Monitor Table[Advanced Keyless System]
PID/Data Monitor Table:
