Lighting and Horns: Testing and Inspection

DISCHARGE HEADLIGHT SYSTEM INSPECTION

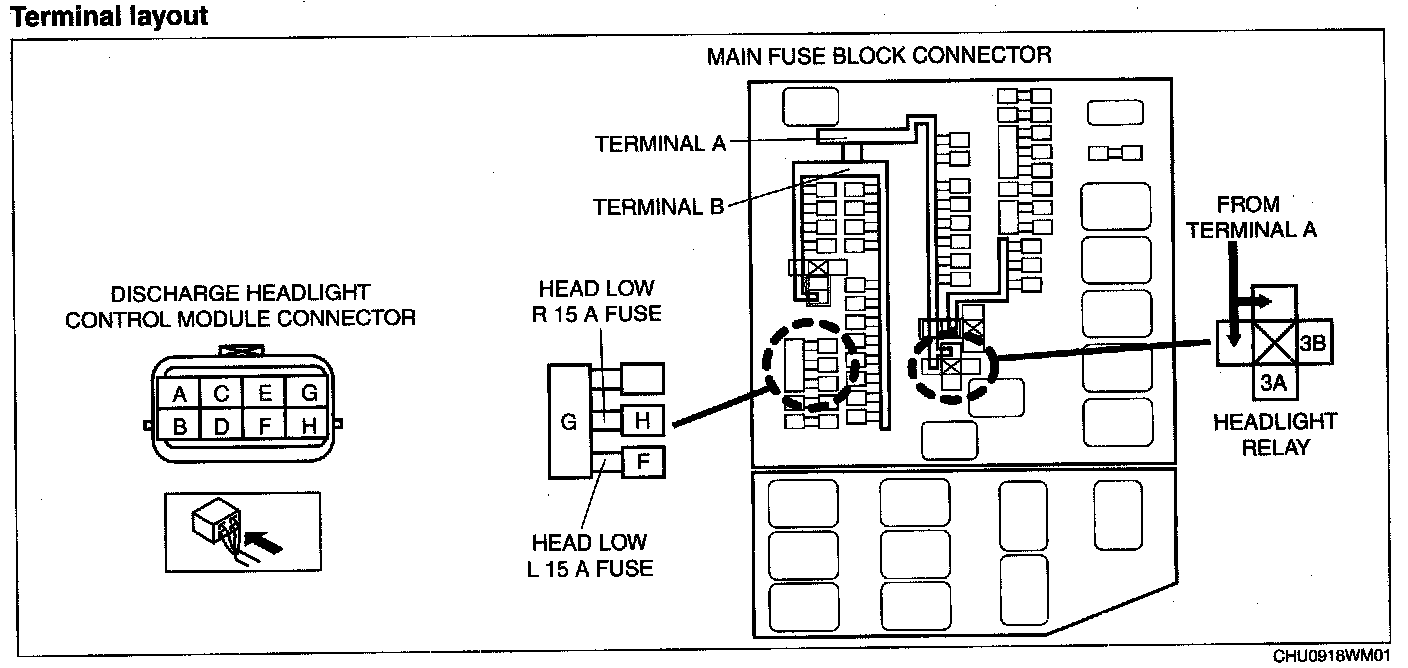

Terminal Layout:

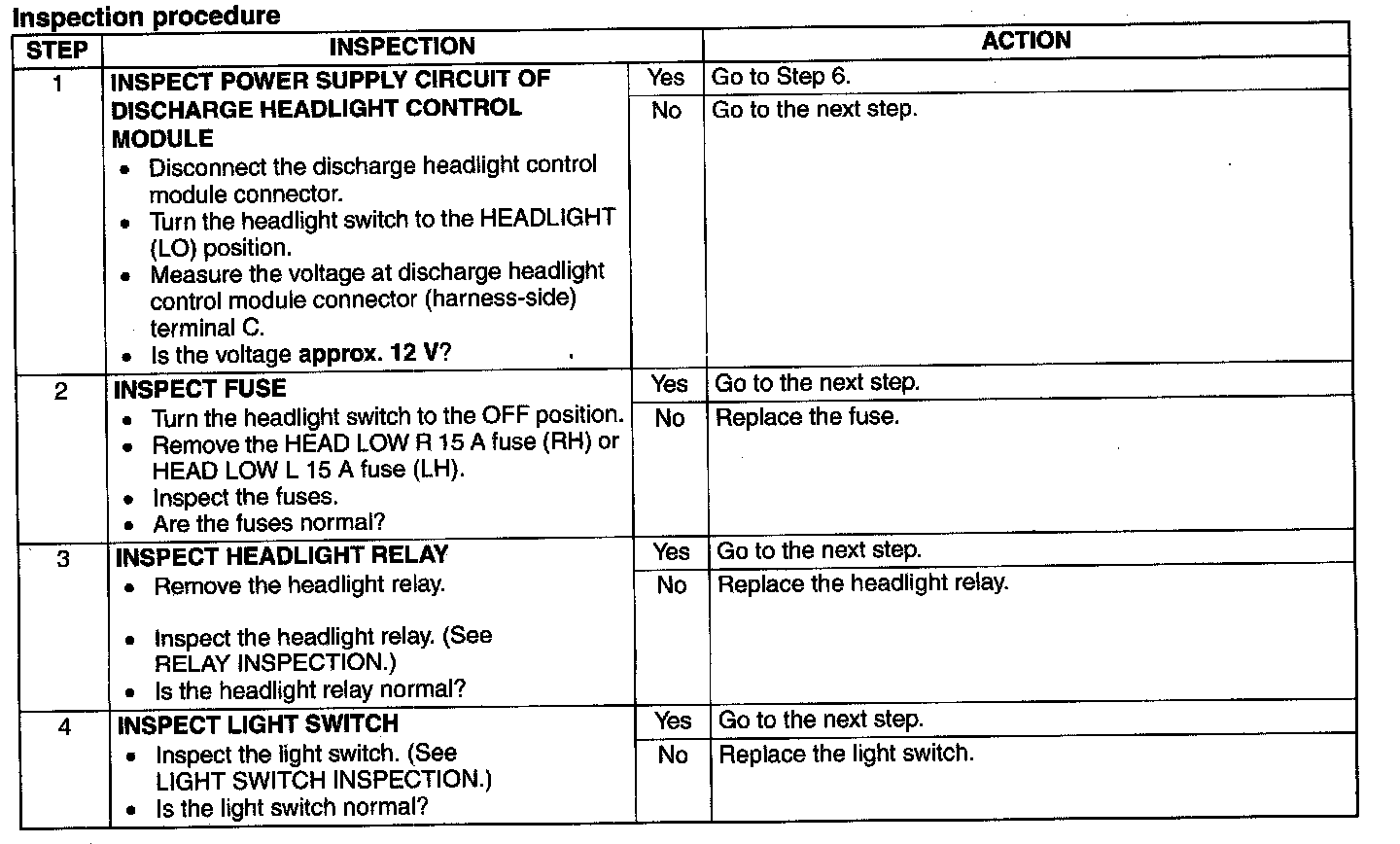

Step 1-Step 4:

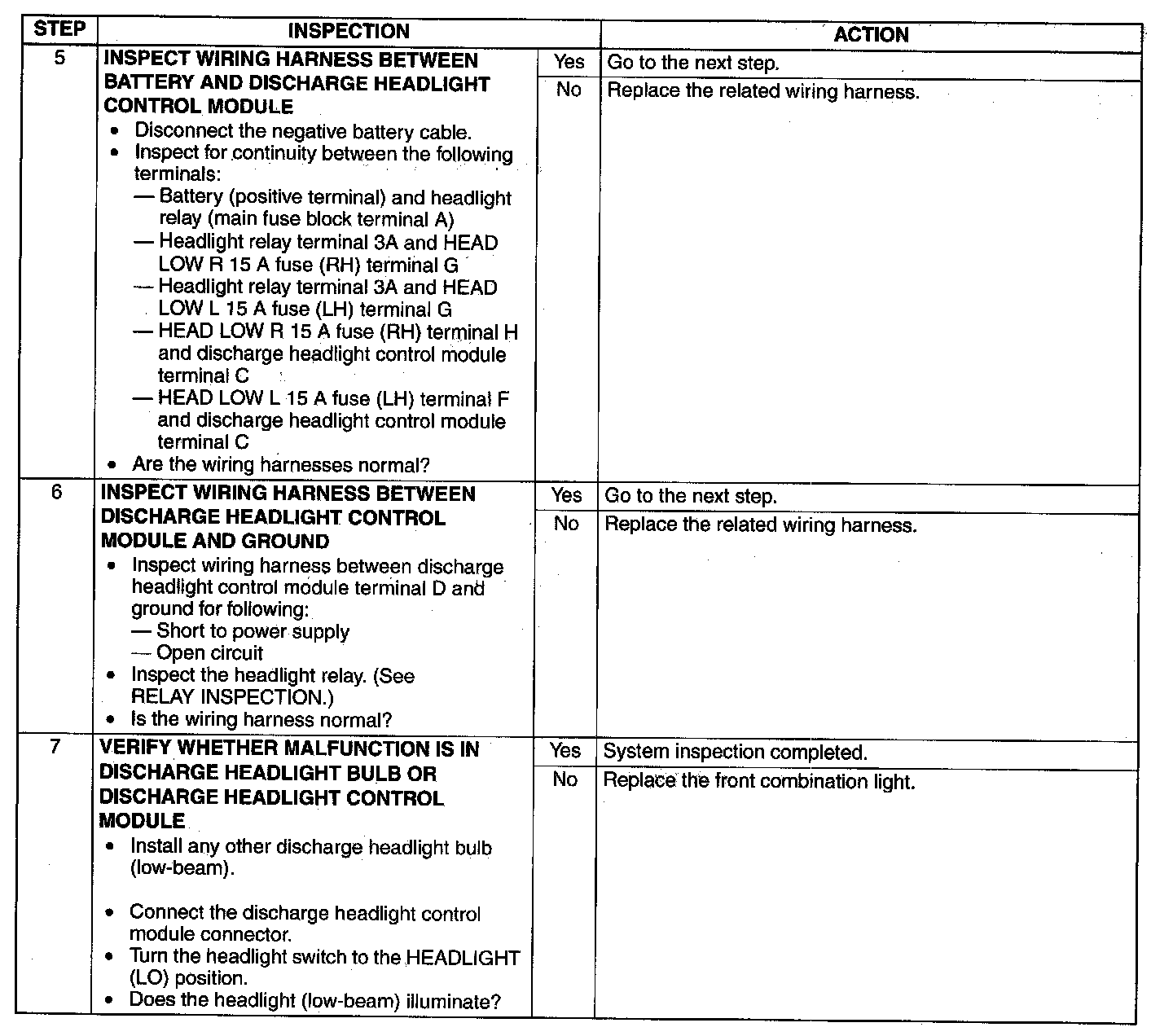

Step 5-Step 7:

Discharge headlight inoperative

WARNING: Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings.
