Control System Wiring Diagram [L3 With TC]

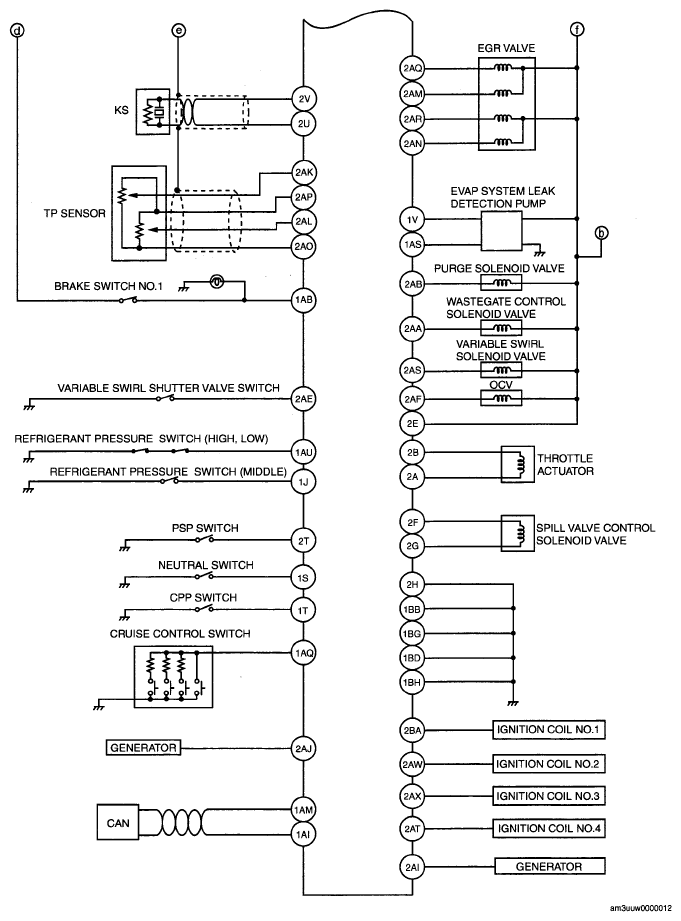

Fig 1: Control System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

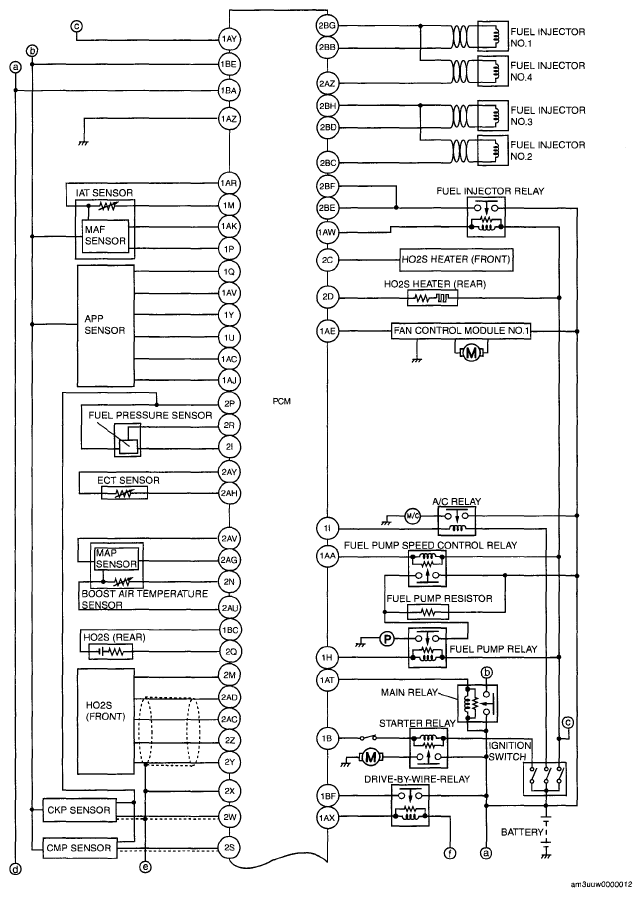

Fig 2: Control System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
