Third-Row Seat Disassembly/Assembly

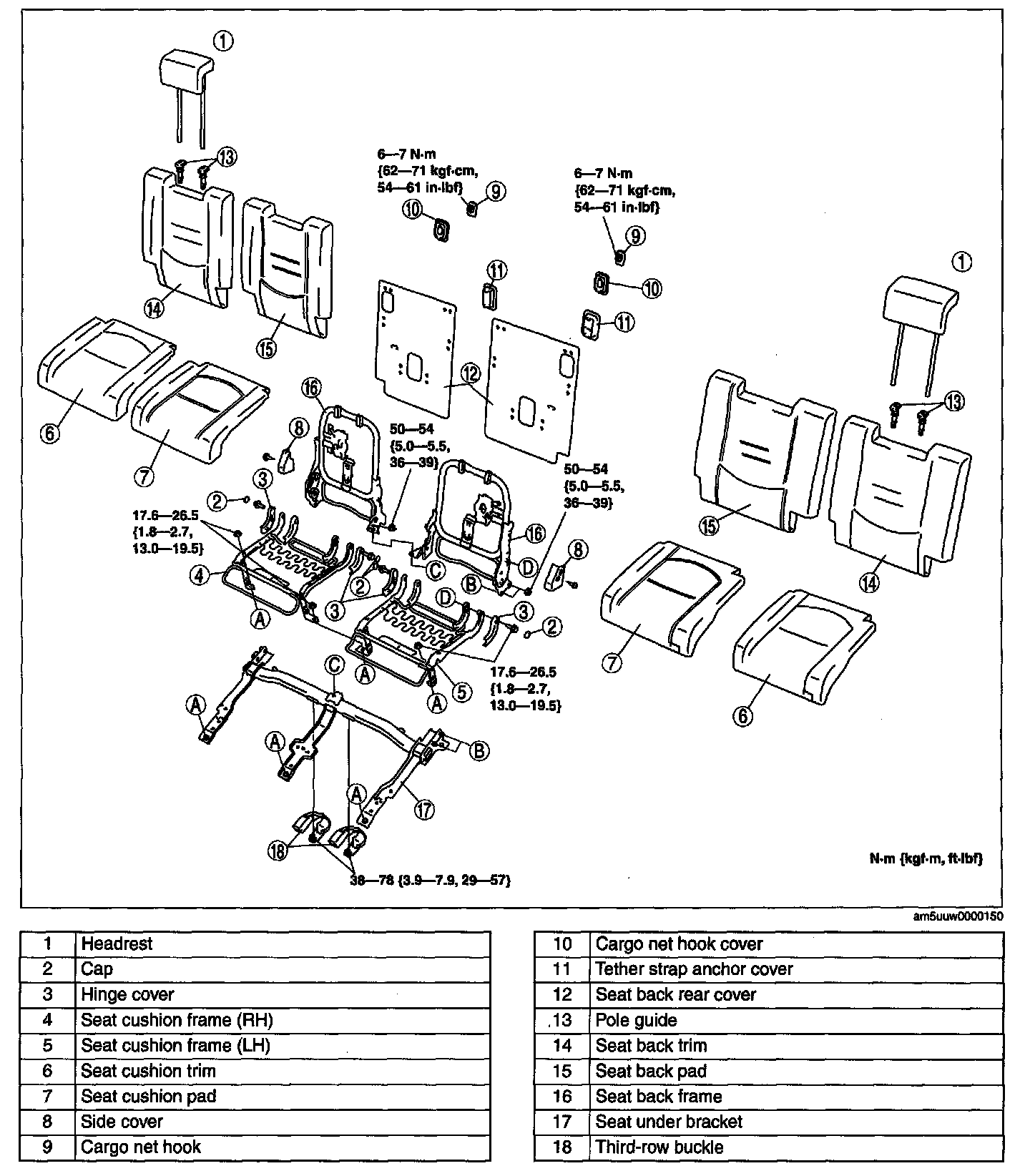

THIRD-ROW SEAT DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
