Windows

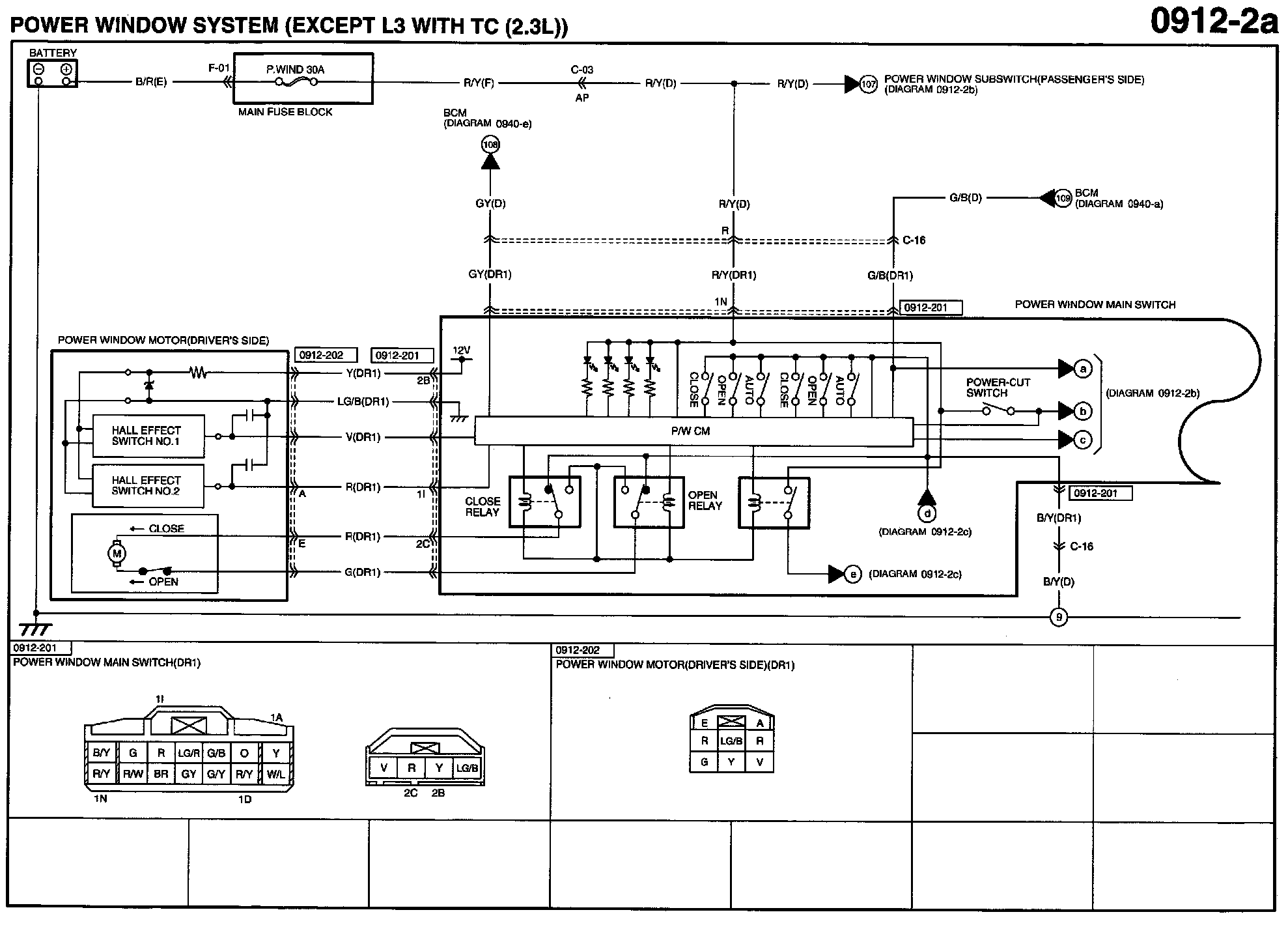

Diagram 0912-2a:

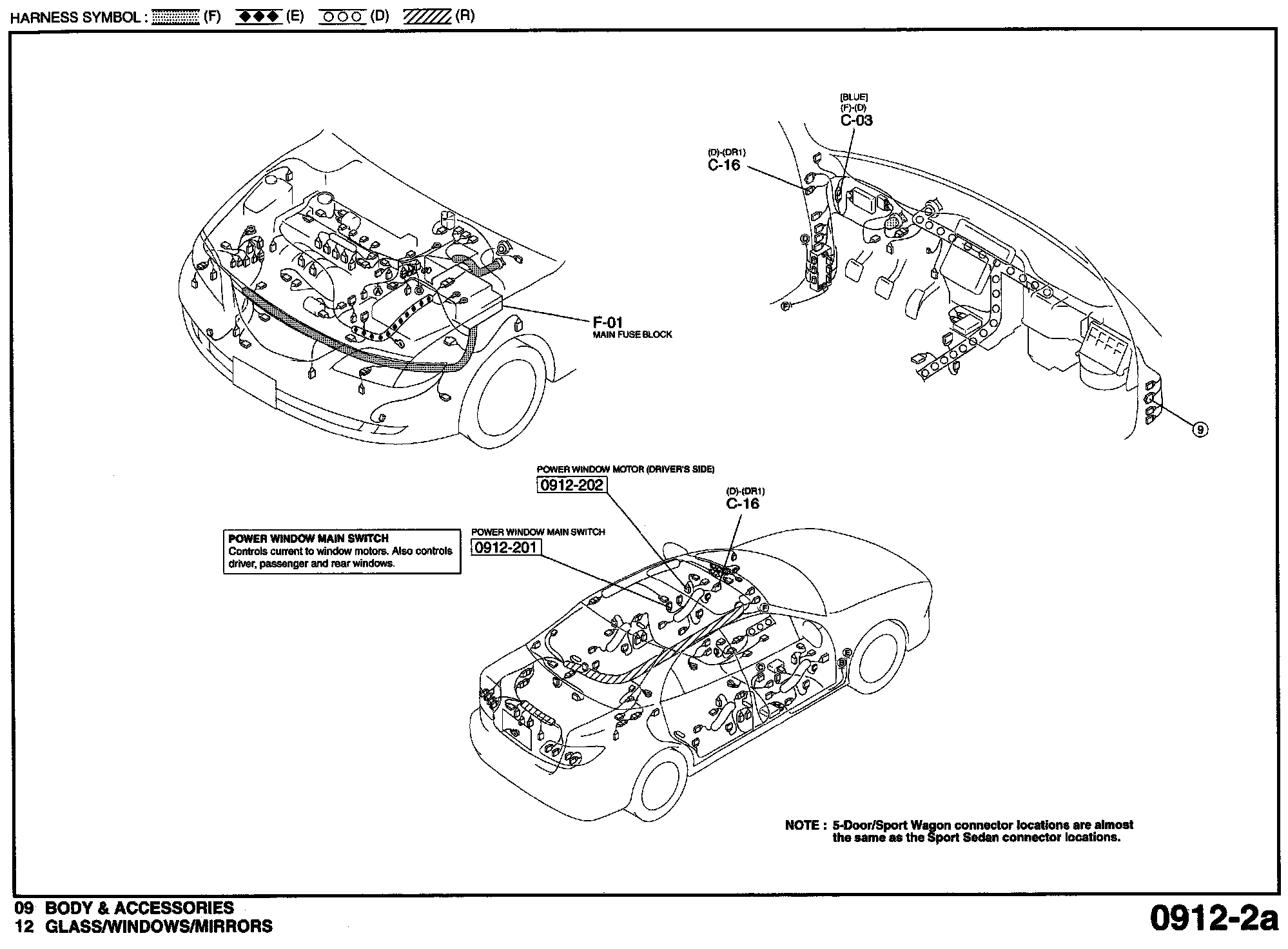

Routing View 0912-2a:

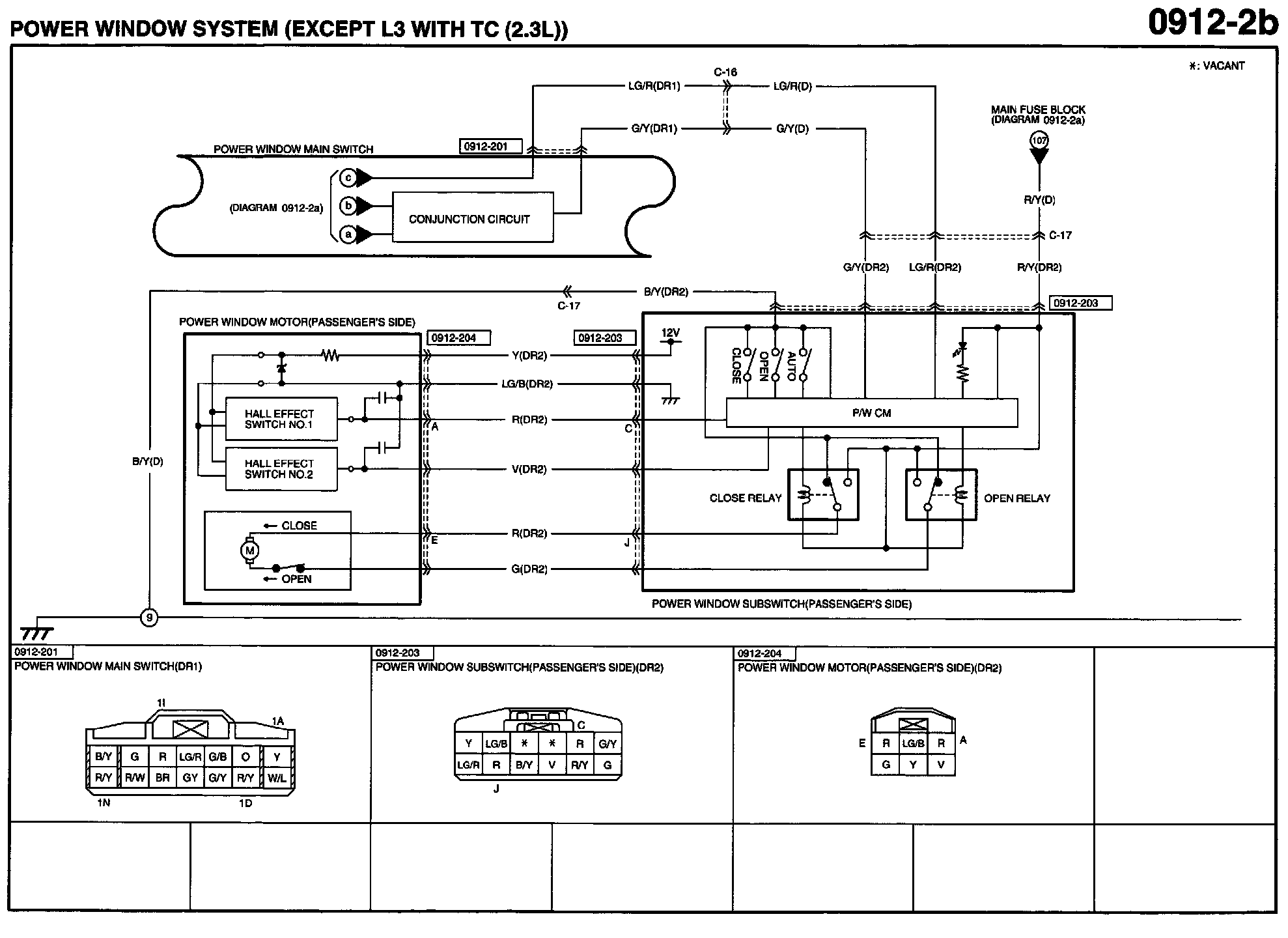

Diagram 0912-2b:

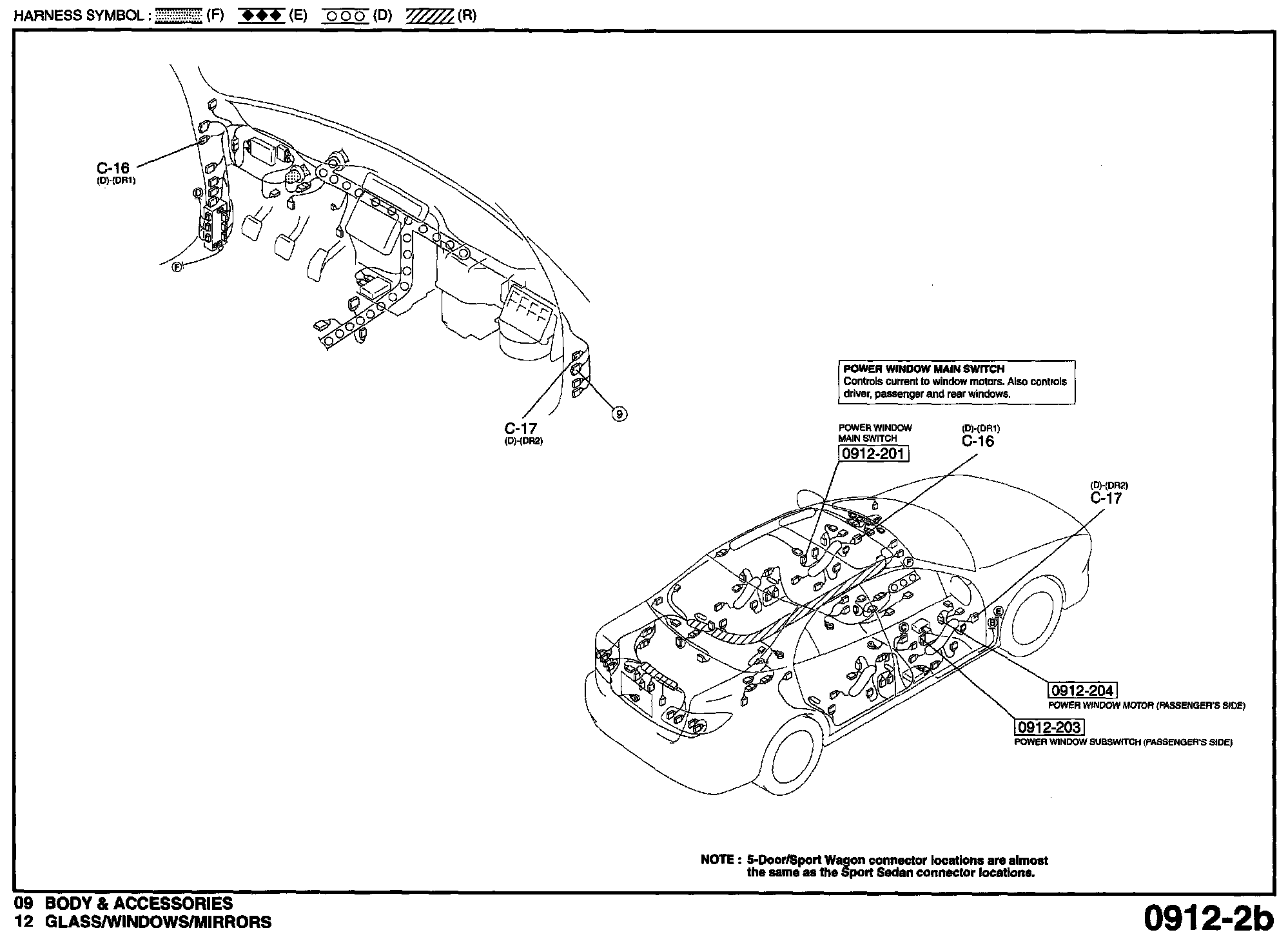

Routing View 0912-2b:

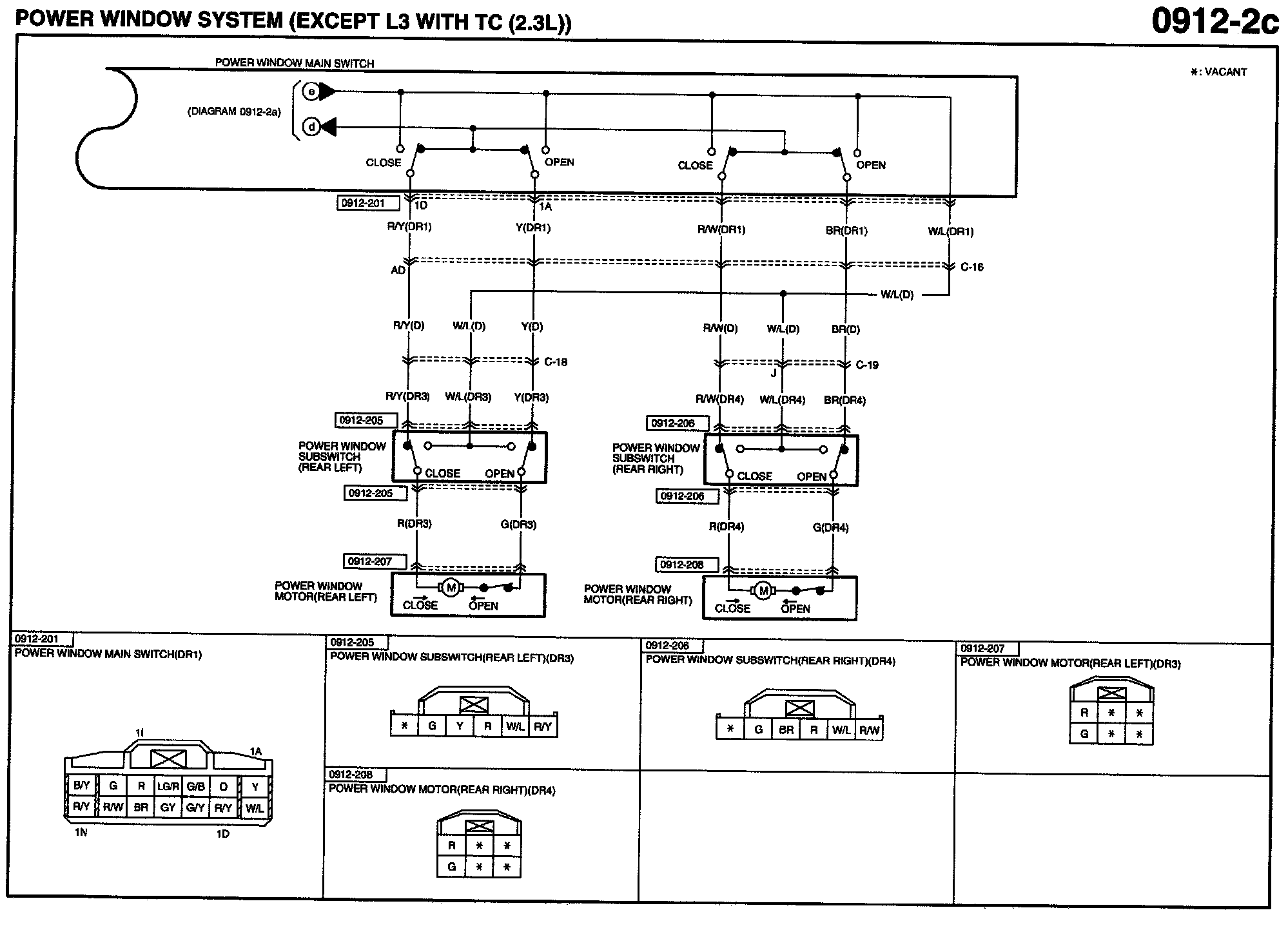

Diagram 0912-2c:

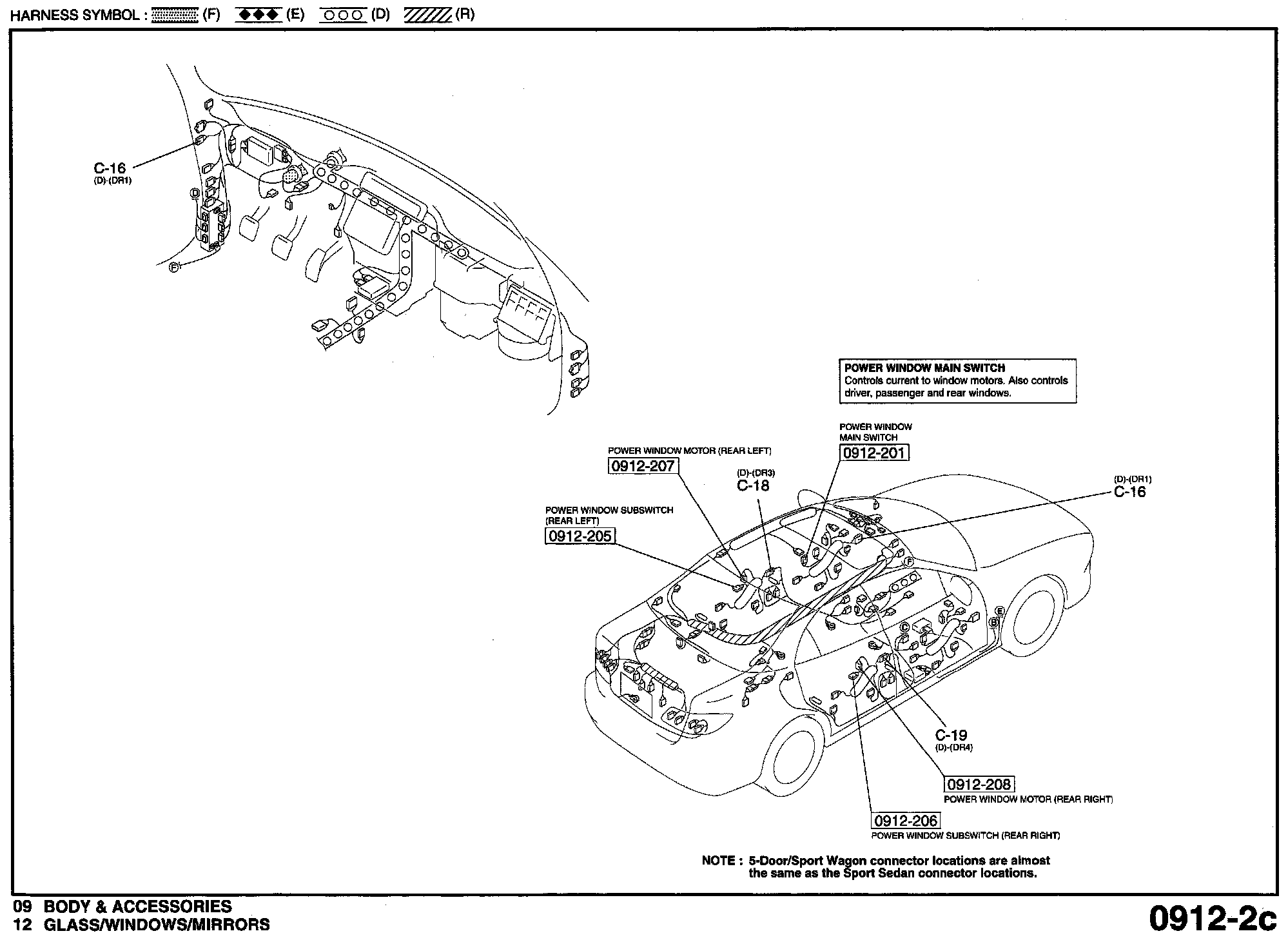

Routing View 0912-2c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name

Power Window System Wiring Diagram [Power Window System]:

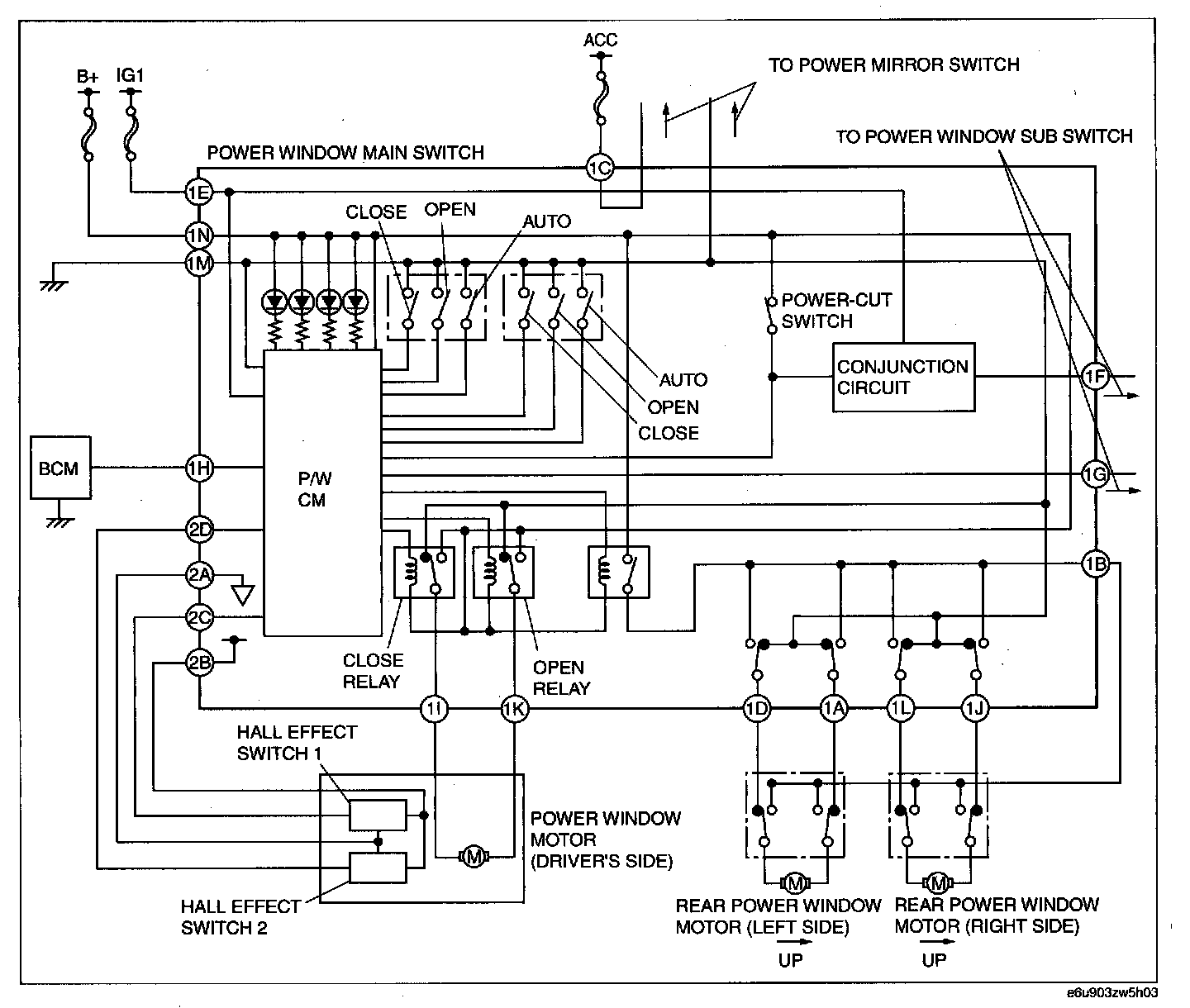

Power Window Main Switch:

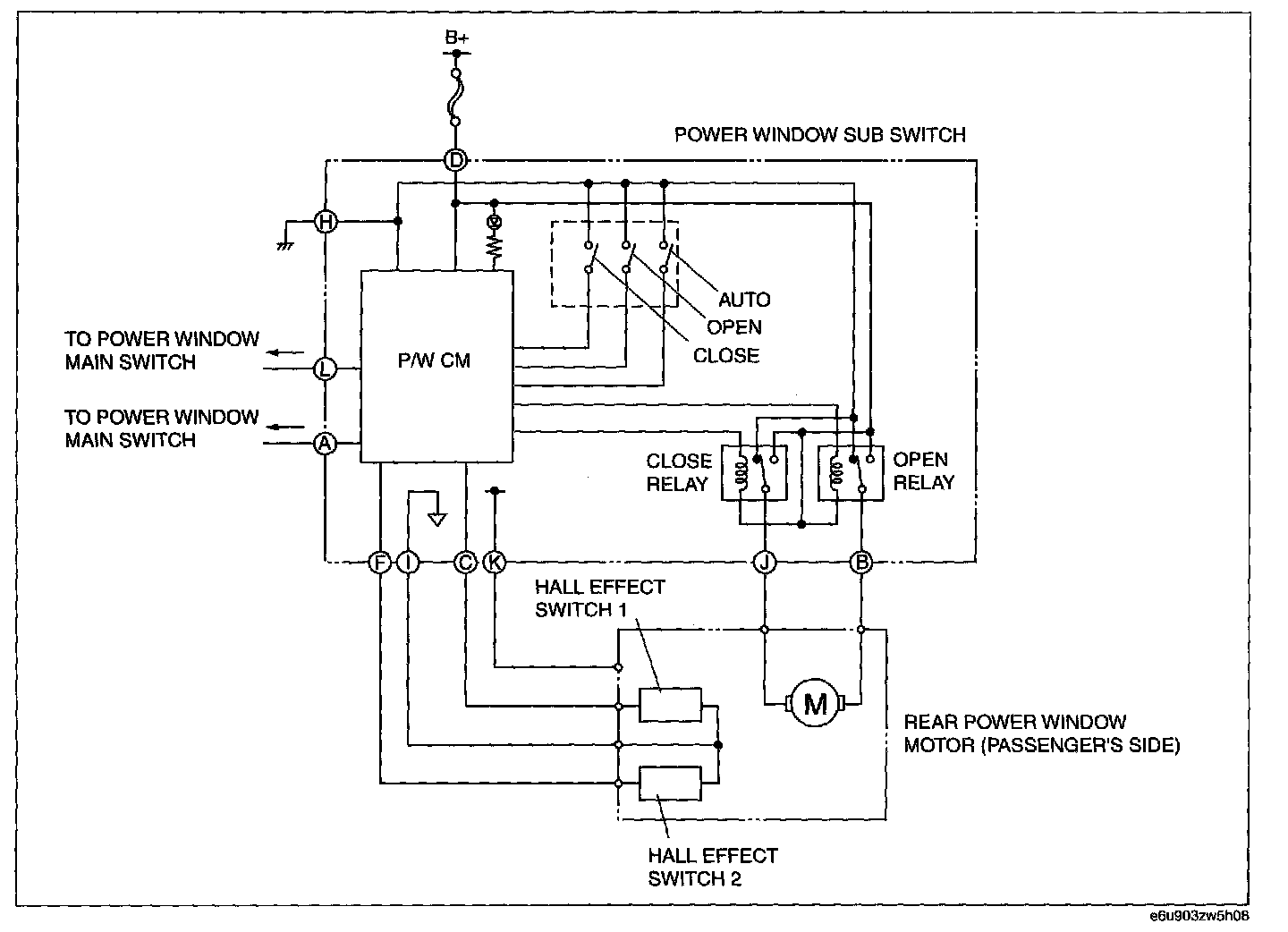

System Schematic
