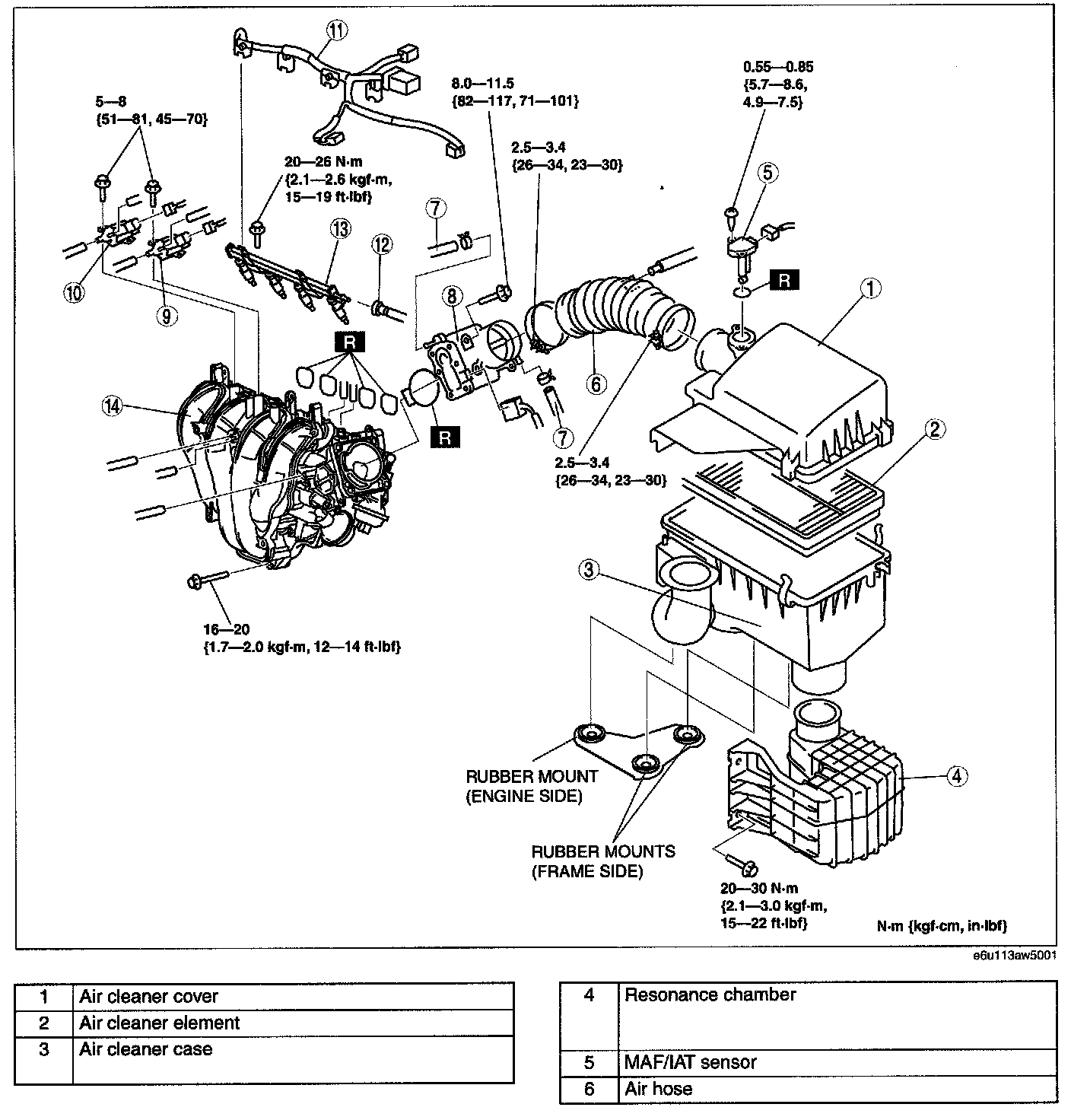

Intake Manifold

INTAKE AIR SYSTEM [L3]

Remove in the order indicated in the table.
Install in the reverse order of removal.

Part 1:




Part 2:
