PID/Data Monitor and Record Function Table

PID/DATA MONITOR AND RECORD function table

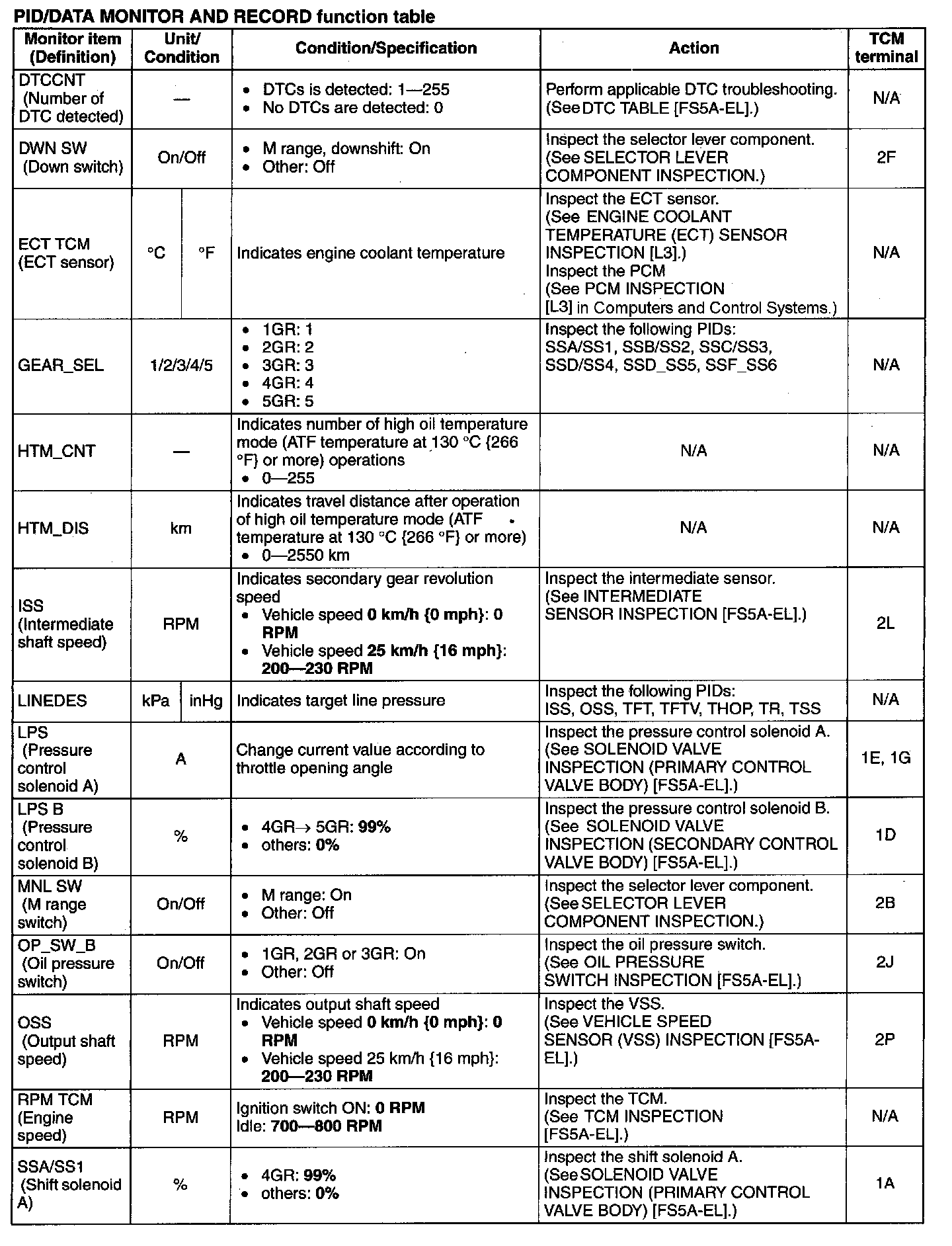

PID/DATA MONITOR AND RECORD function table (Part 1):

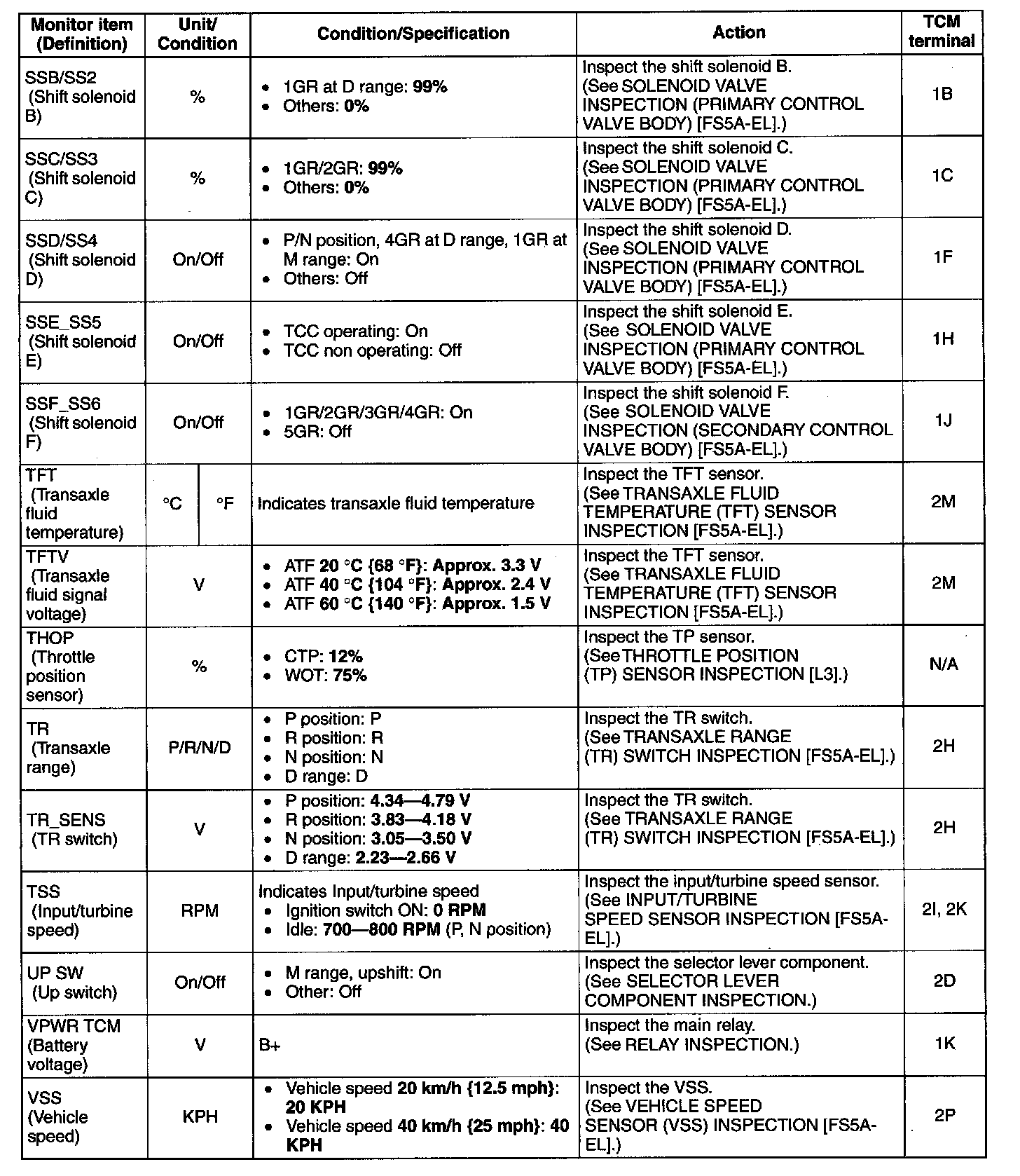

PID/DATA MONITOR AND RECORD function table (Part 2):
