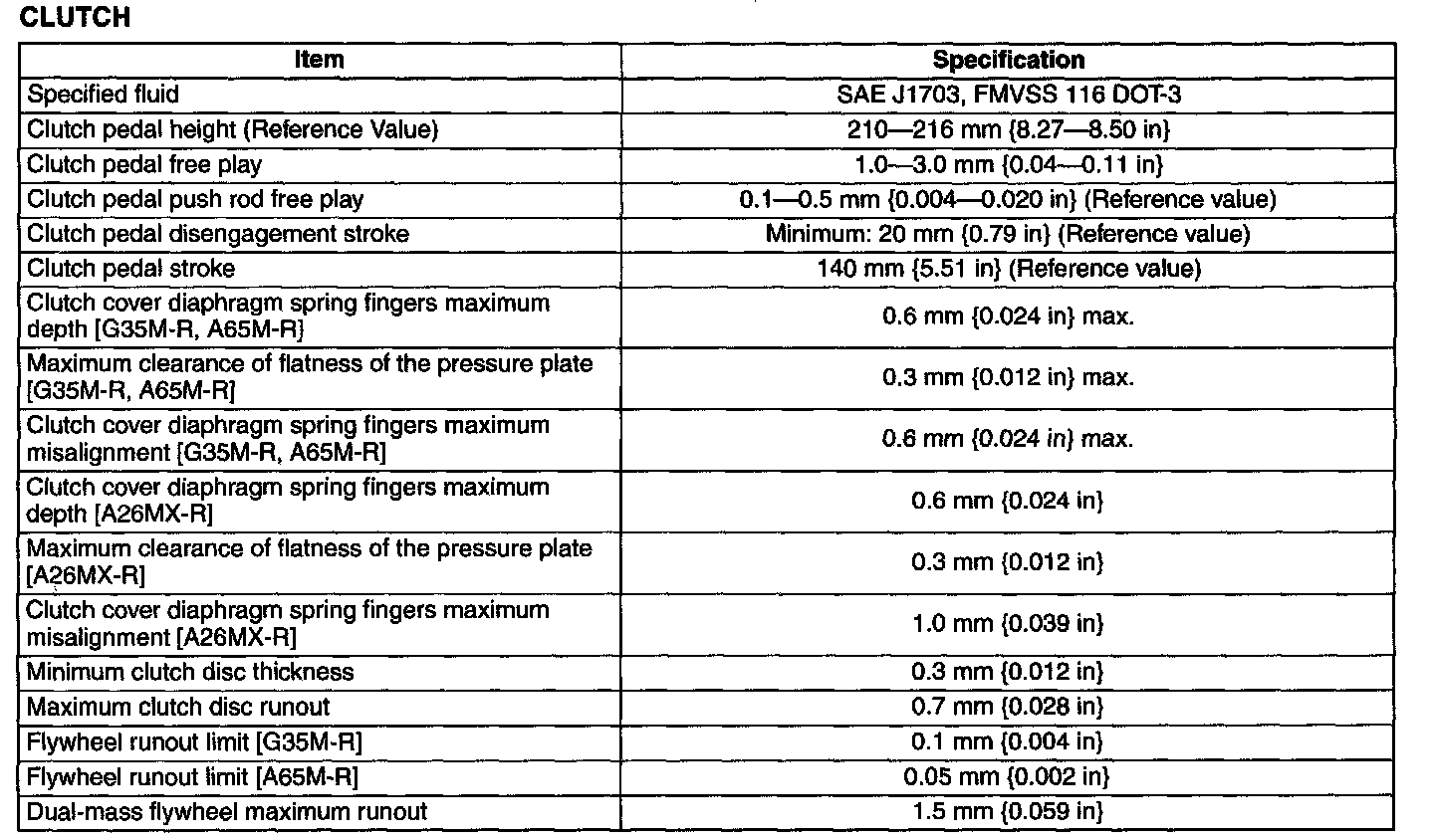

Clutch: Specifications

Clutch:

Clutch





G35M-R manual transaxle models
Pressure Plate
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque 25-33 N-m (2.6-3.3 kgf-m, 19-24 ft-lbf)





A65M-R manual transaxle models
Pressure Plate
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque 25-33 N-m (2.6-3.3 kgf-m, 19-24 ft-lbf)
