3RD/4TH Synchronizer Key Spring, 3RD/4TH Synchronizer Key and 3RD/4TH Clutch Hub and Sleeve Assembly Note

3rd/4th Synchronizer Key Spring, 3rd/4th Synchronizer Key and 3rd/4th Clutch Hub and Sleeve Assembly Note
1. Install the 3rd/4th synchronizer key spring, 3rd/4th synchronizer key and 3rd/4th clutch hub to the 3rd/4th clutch sleeve.

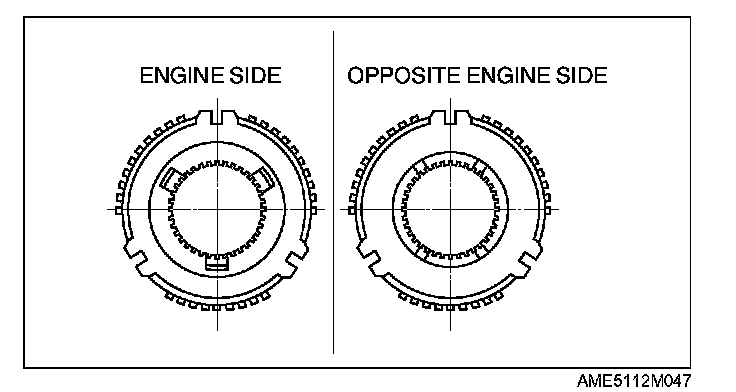

1) Install a new 3rd/4th clutch hub in the direction as shown in the figure.





2) Install a new 3rd/4th clutch sleeve in the direction as shown in the figure.





3) Install center projection parts of 3rd/4th synchronizer key springs to different synchronizer keys on each side.
