Control Rod Disassembly Note

Control Rod Disassembly Note

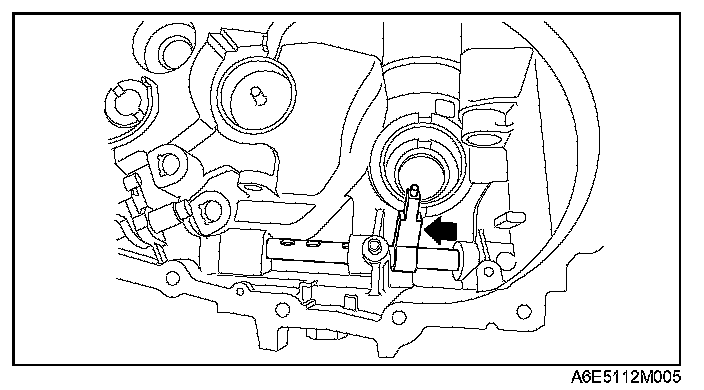

1. Move the control rod in the direction of arrow.





2. Using a flathead screwdriver and hammer, make a hole on the cap.





3. Remove the seal cap by putting the flathead screwdriver into the hole, made in Step 2, from the inside of the transmission.
