Fuel Injector Removal/Installation [AJ]: Notes
- Complete the "BEFORE REPAIR PROCEDURE". See
BEFORE REPAIR PROCEDURE [L3, AJ] .
- Disconnect the negative battery cable.
- Remove the dynamic chamber. See
INTAKE AIR SYSTEM REMOVAL/INSTALLATION [AJ]
.
- Disconnect the fuel injector connectors and remove the wiring harness from the fuel distributor.

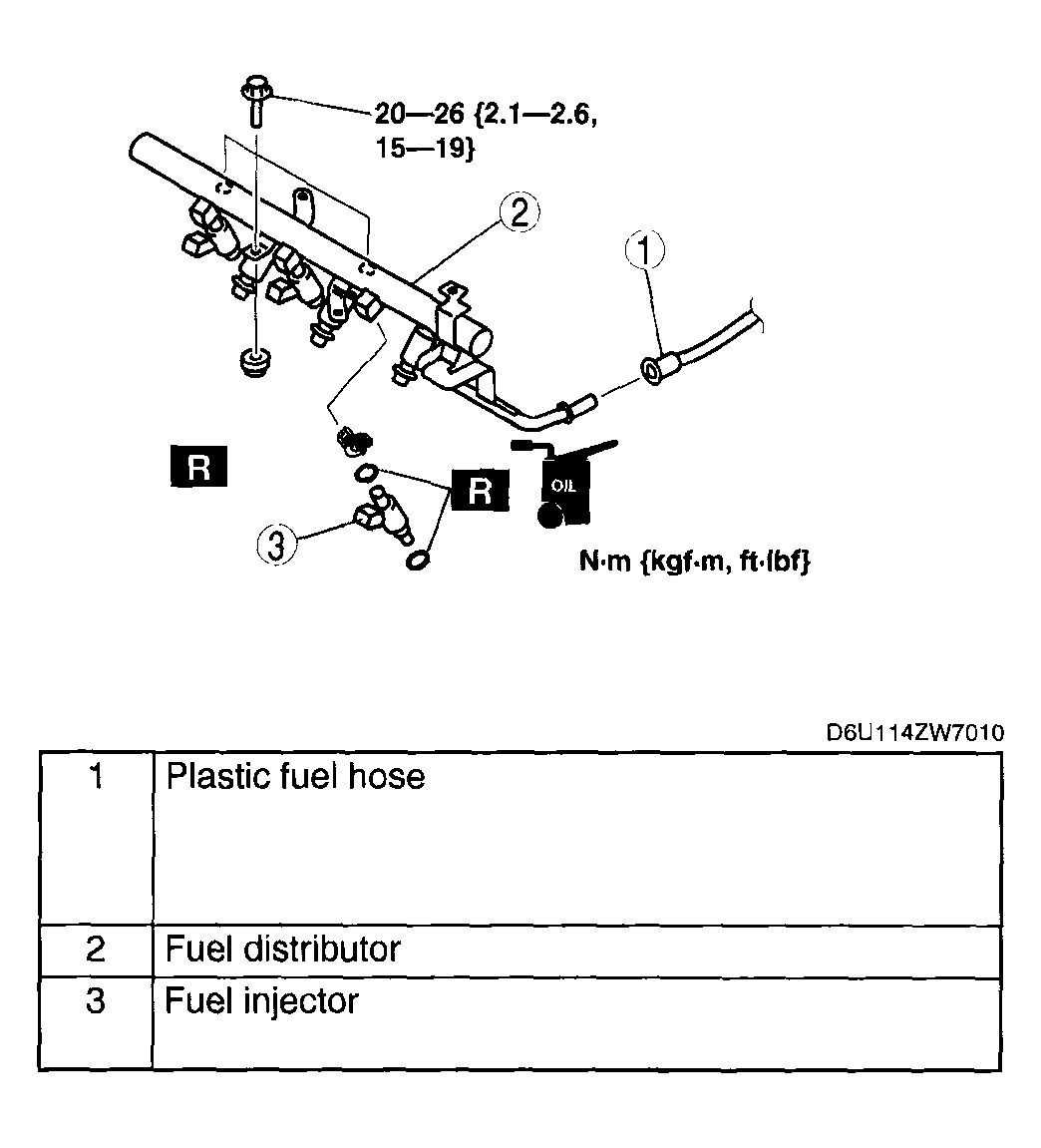

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
- Install in the reverse order of removal.
- Complete the "AFTER REPAIR PROCEDURE". See
AFTER REPAIR PROCEDURE [L3, AJ] .
