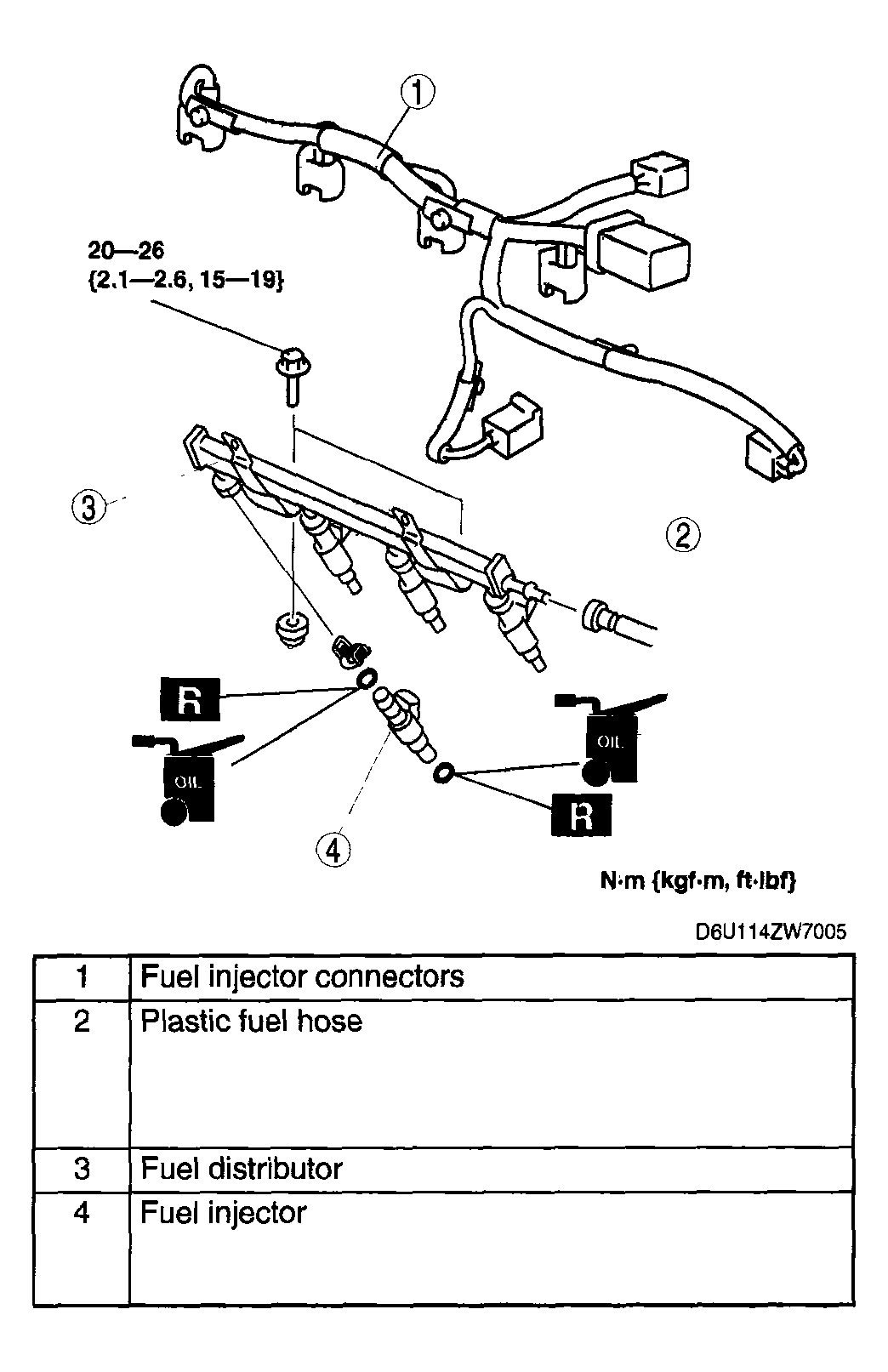

Fuel Injector Removal/Installation [L3]: Notes
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
- Complete the "BEFORE REPAIR PROCEDURE". See BEFORE REPAIR PROCEDURE [L3, AJ] .
- Disconnect the negative battery cable.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER REPAIR PROCEDURE".
