Pinpoint Test 5: Insufficient A/C Cooling

CLIMATE CONTROL PINPOINT TEST 5: INSUFFICIENT A/C COOLING

NOTE: Make sure the heater control valve is functioning correctly before proceeding with this test. See PINPOINT TEST 2: INSUFFICIENT, ERRATIC OR NO HEAT for information regarding the heater control valve operation. Pinpoint Test 2: Insufficient, Erratic or No Heat

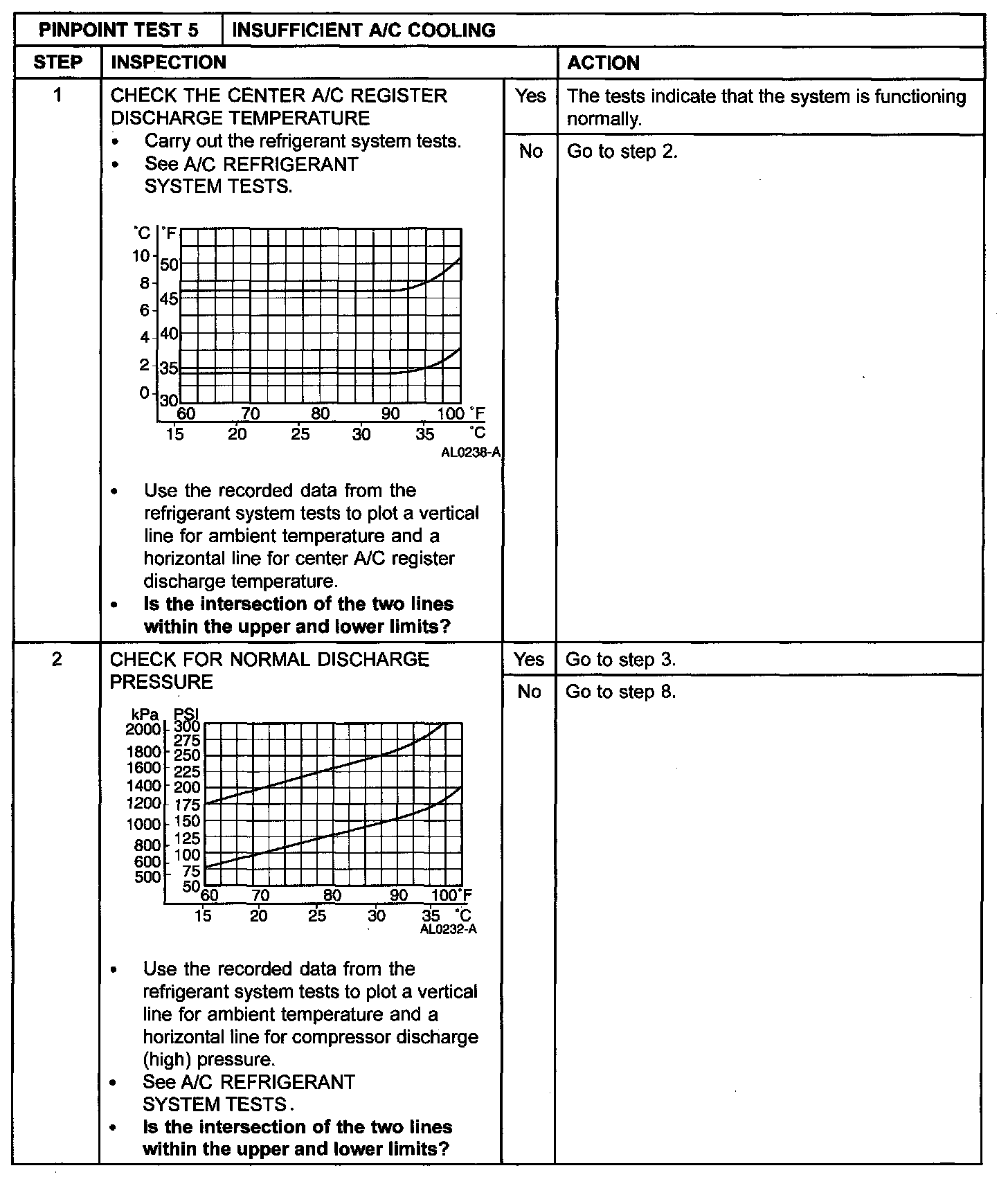

Step 1-Step 2:

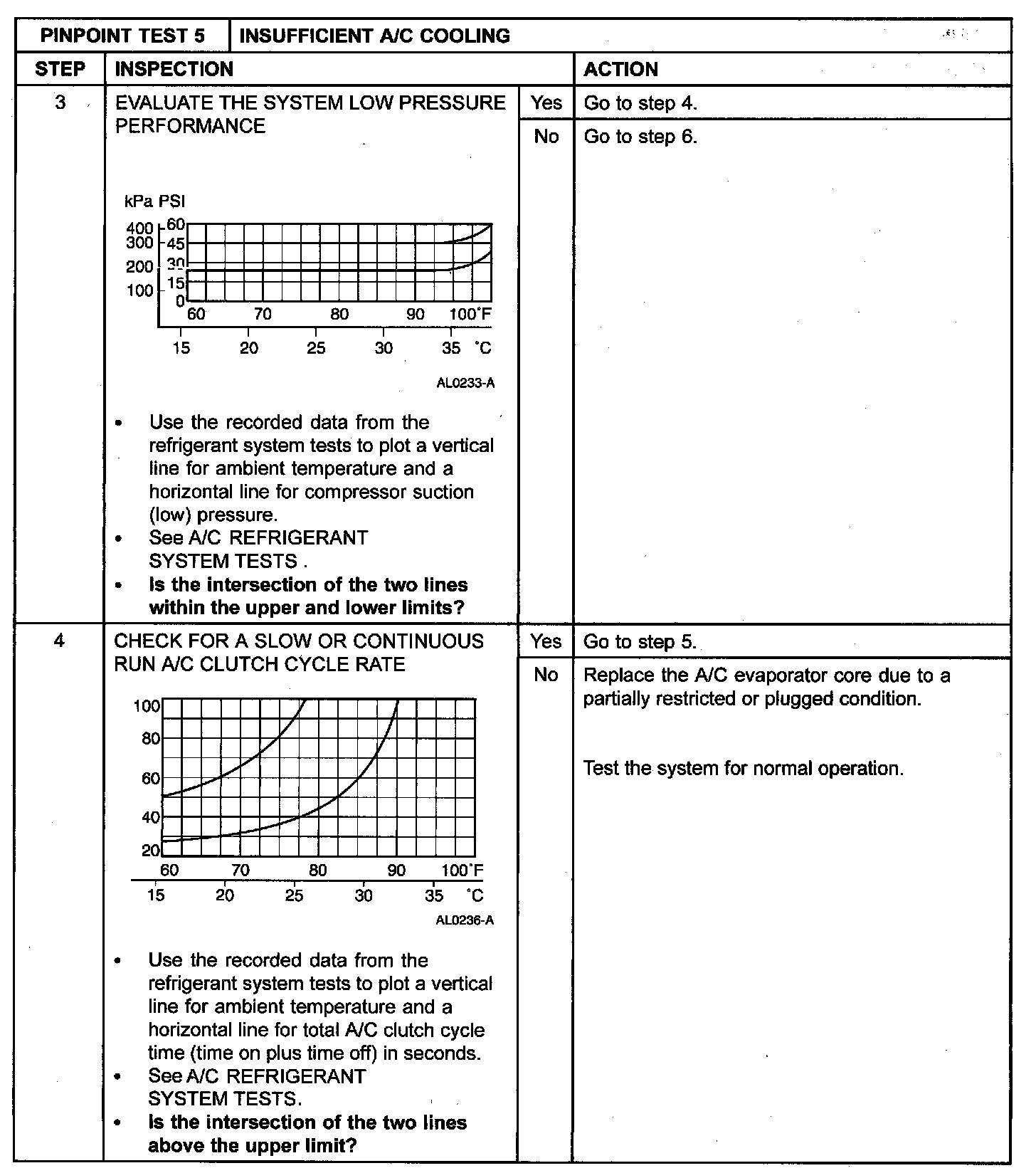

Step 3-Step 4:

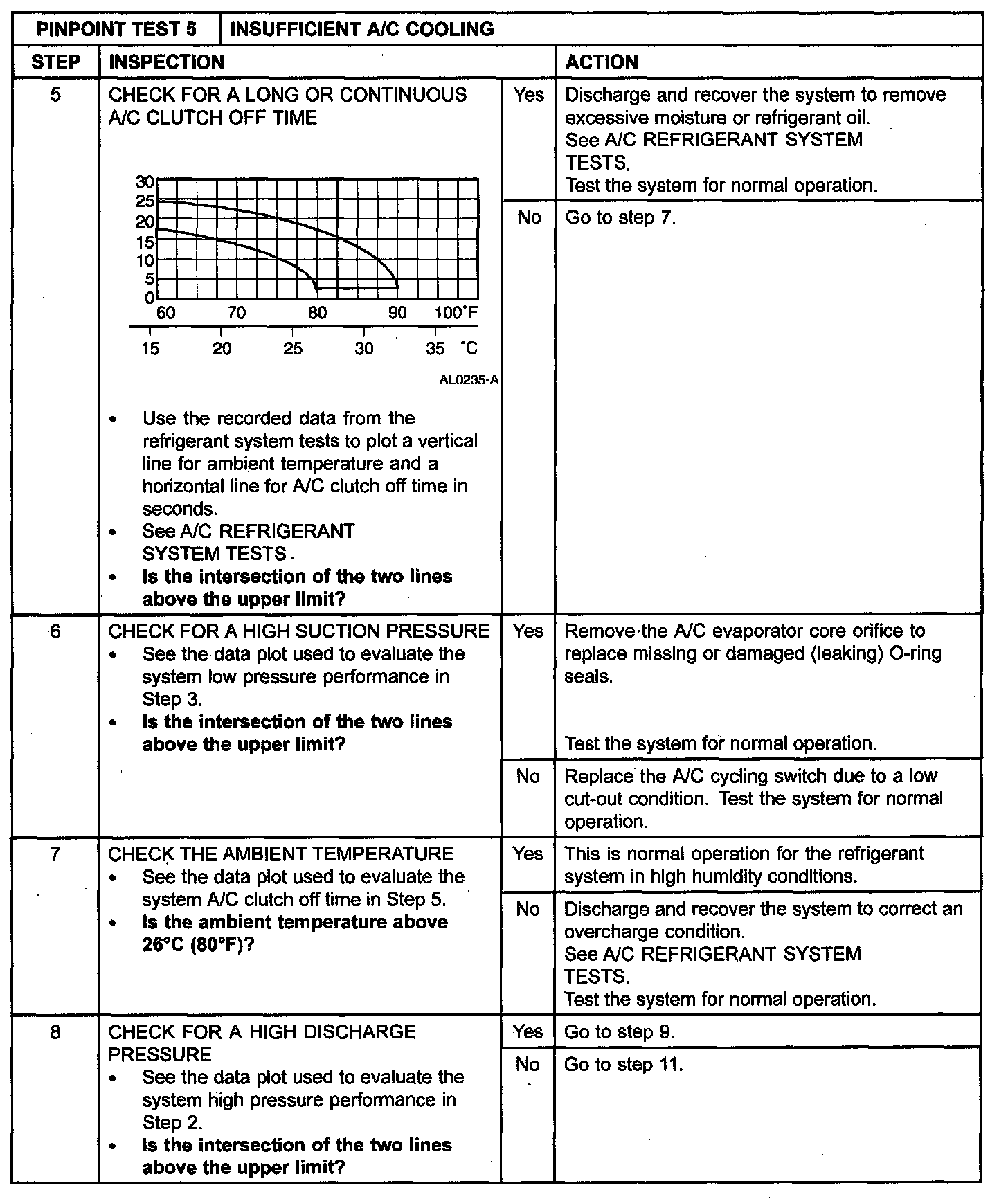

Step 5-Step 8:

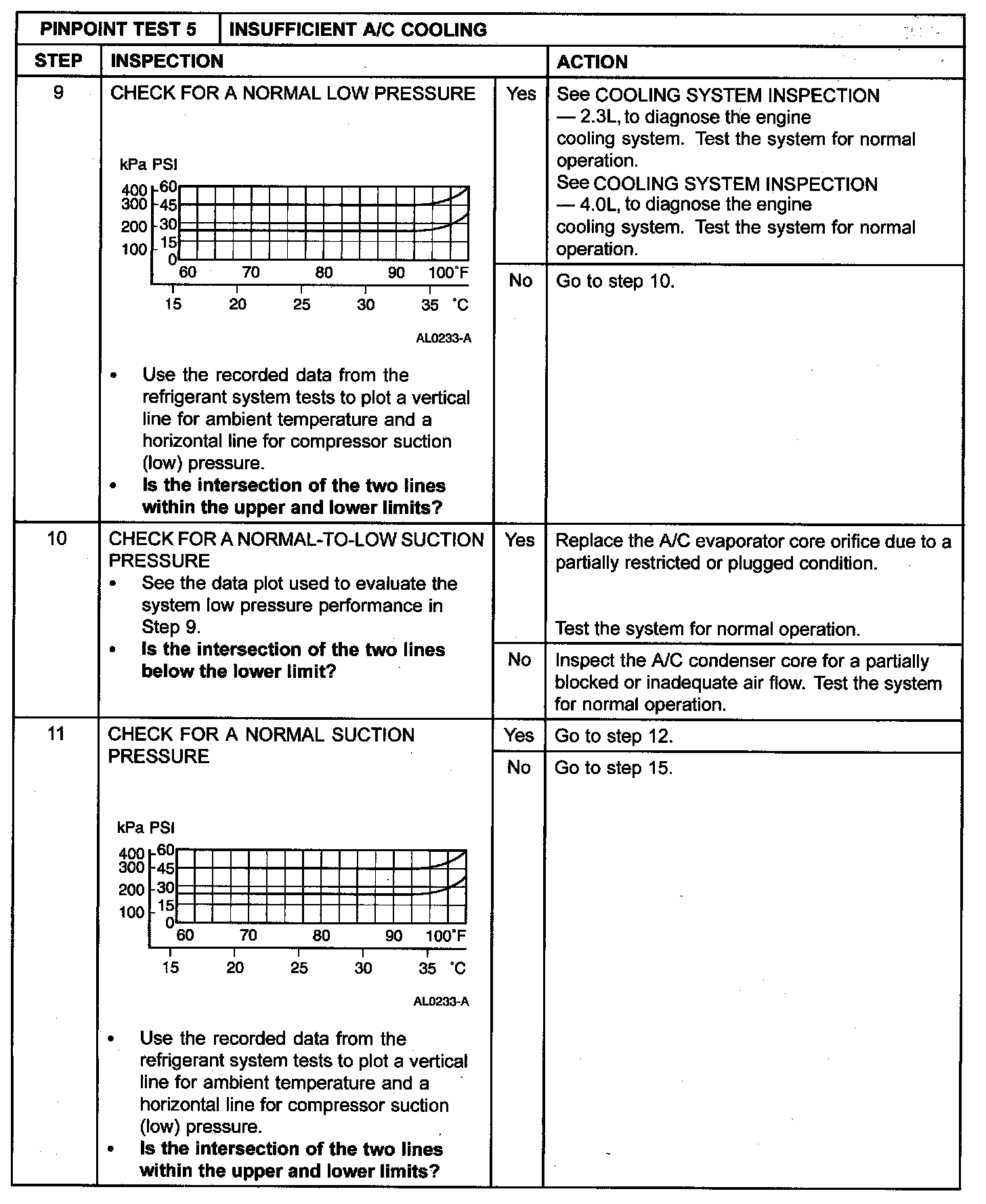

Step 9-Step 11:

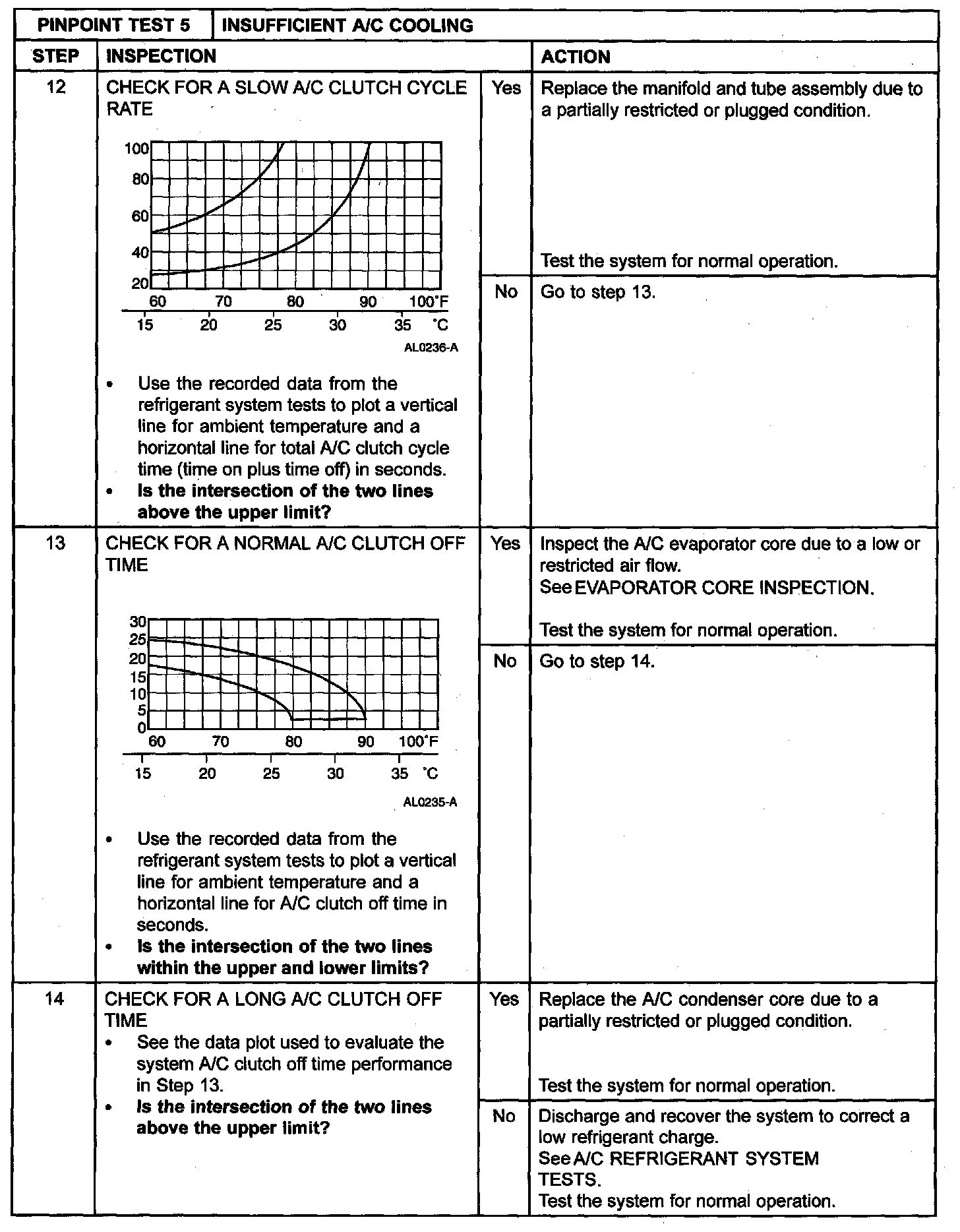

Step 12-Step 14:




Step 15:
