Control Assembly: Tools and Equipment

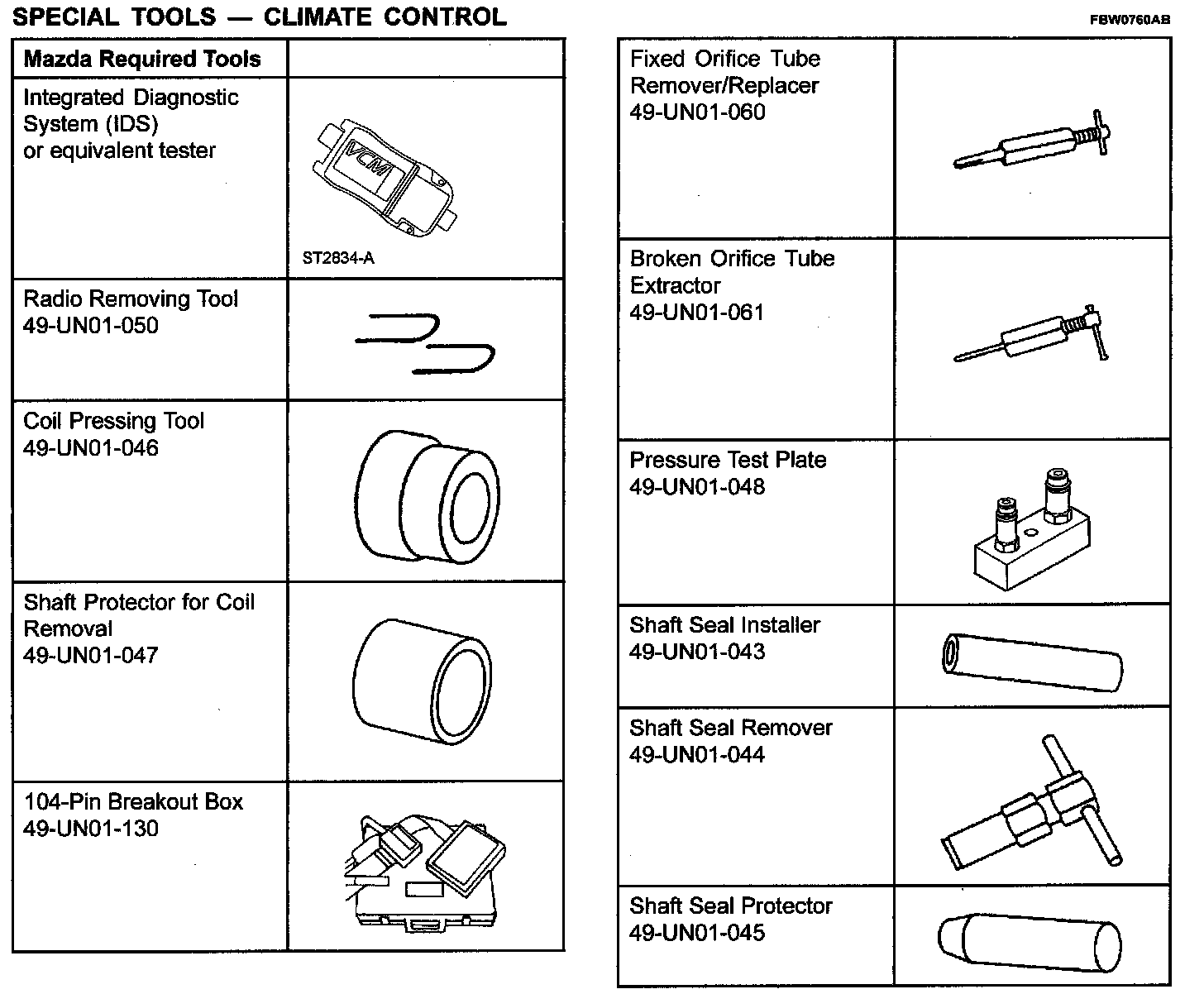

Special Tools-Climate Control (Part 1):

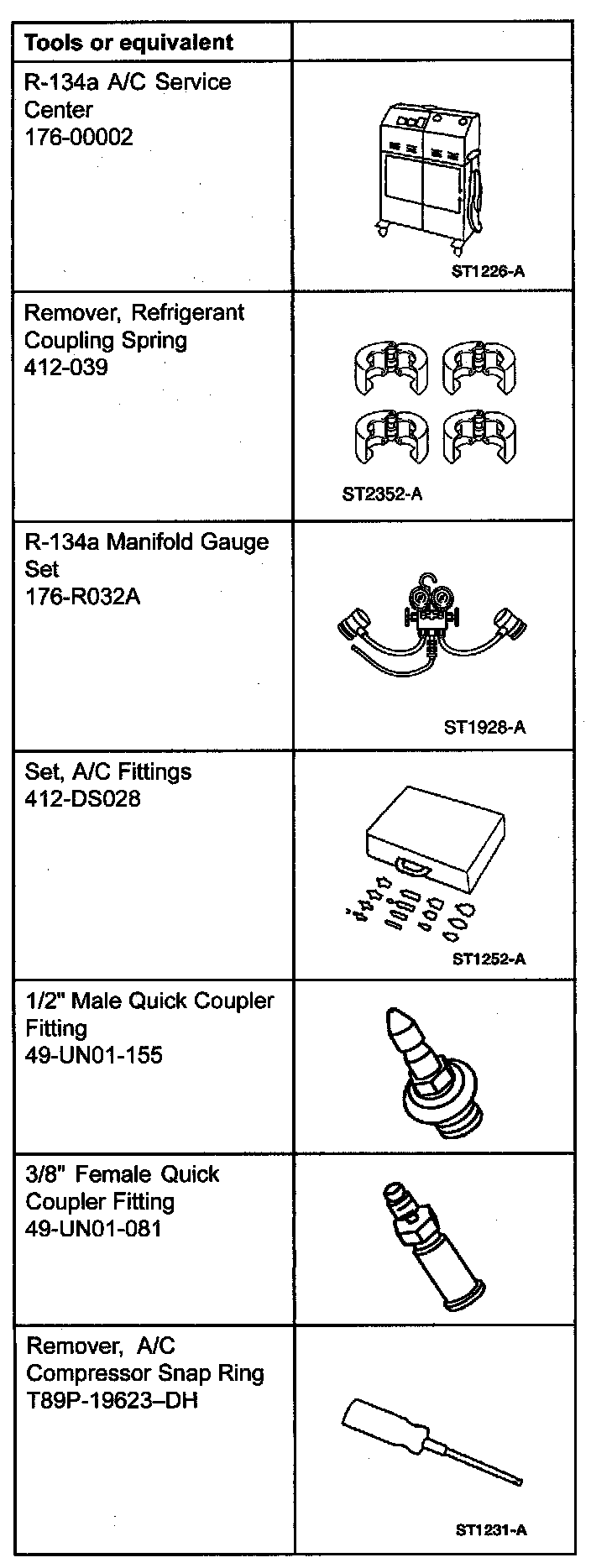

Special Tool-Climate Control (Part 2):
