Data Link Connector: Diagrams

Diagram 00D:

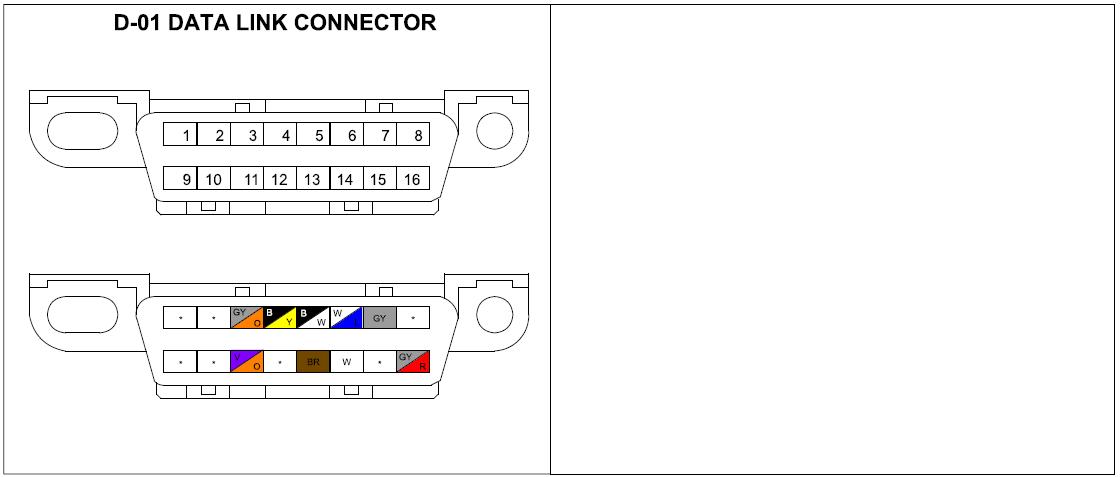

Connectors 00D:

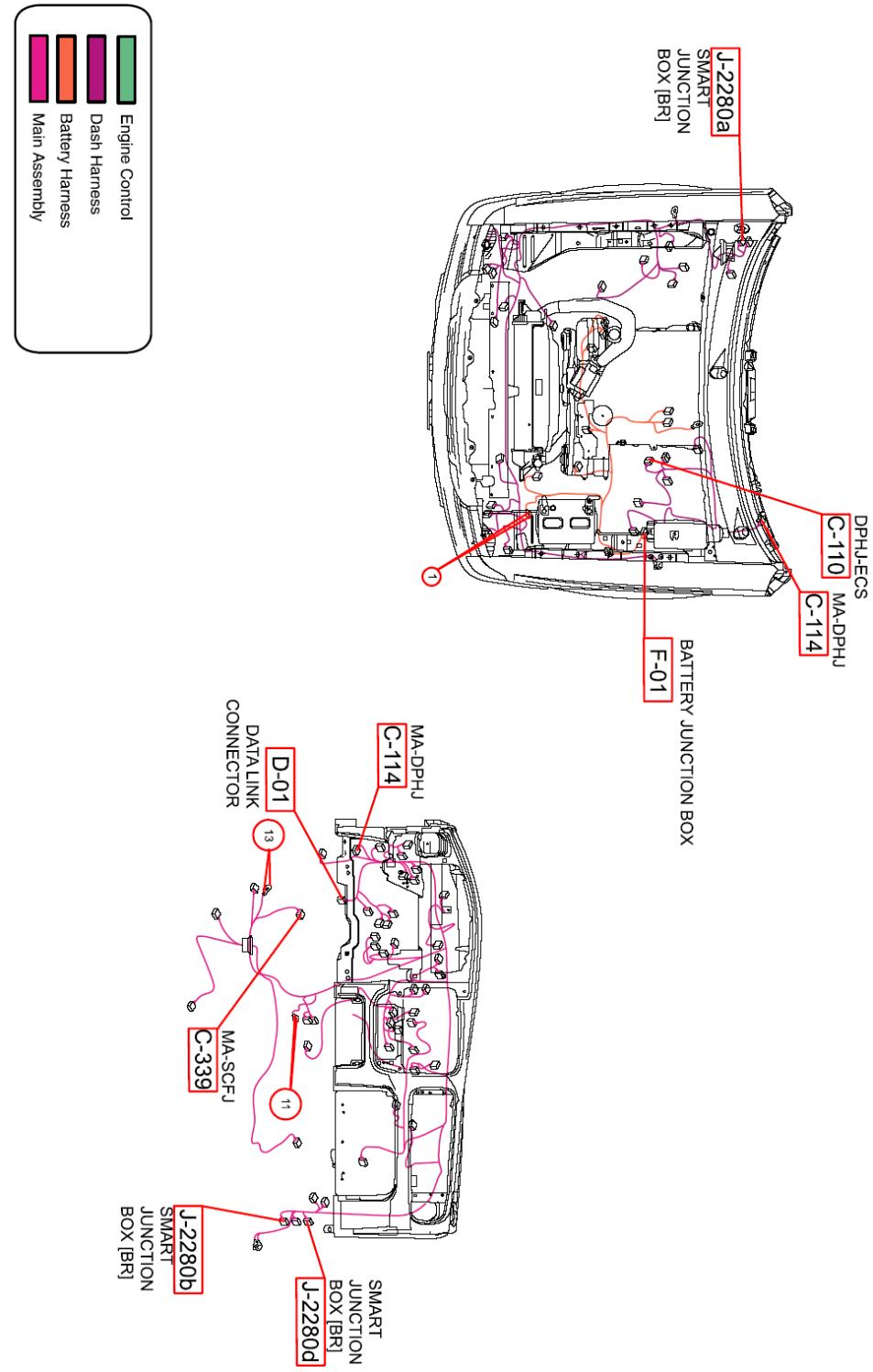

Routing View 00D:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
