Engine Temperature Sensor: Service and Repair

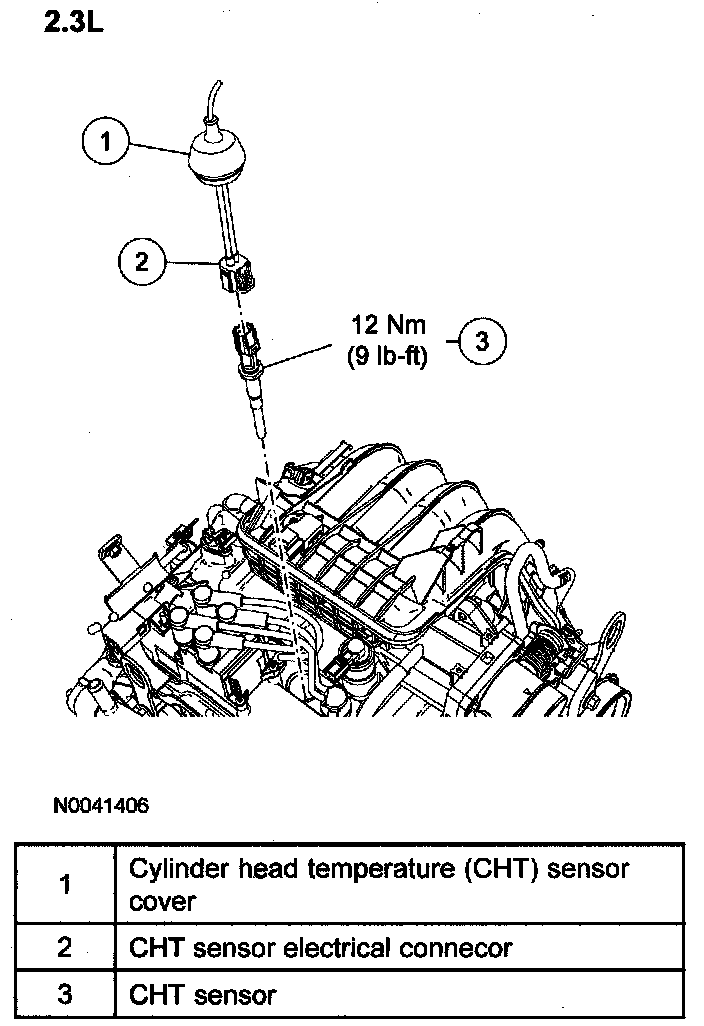

CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL / INSTALLATION - 2.3L

1. Disconnect the negative battery cable.

2. Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.

3. Remove the CHT sensor.
4. To install, reverse the removal procedure.
