Manifold Pressure/Vacuum Sensor: Service and Repair

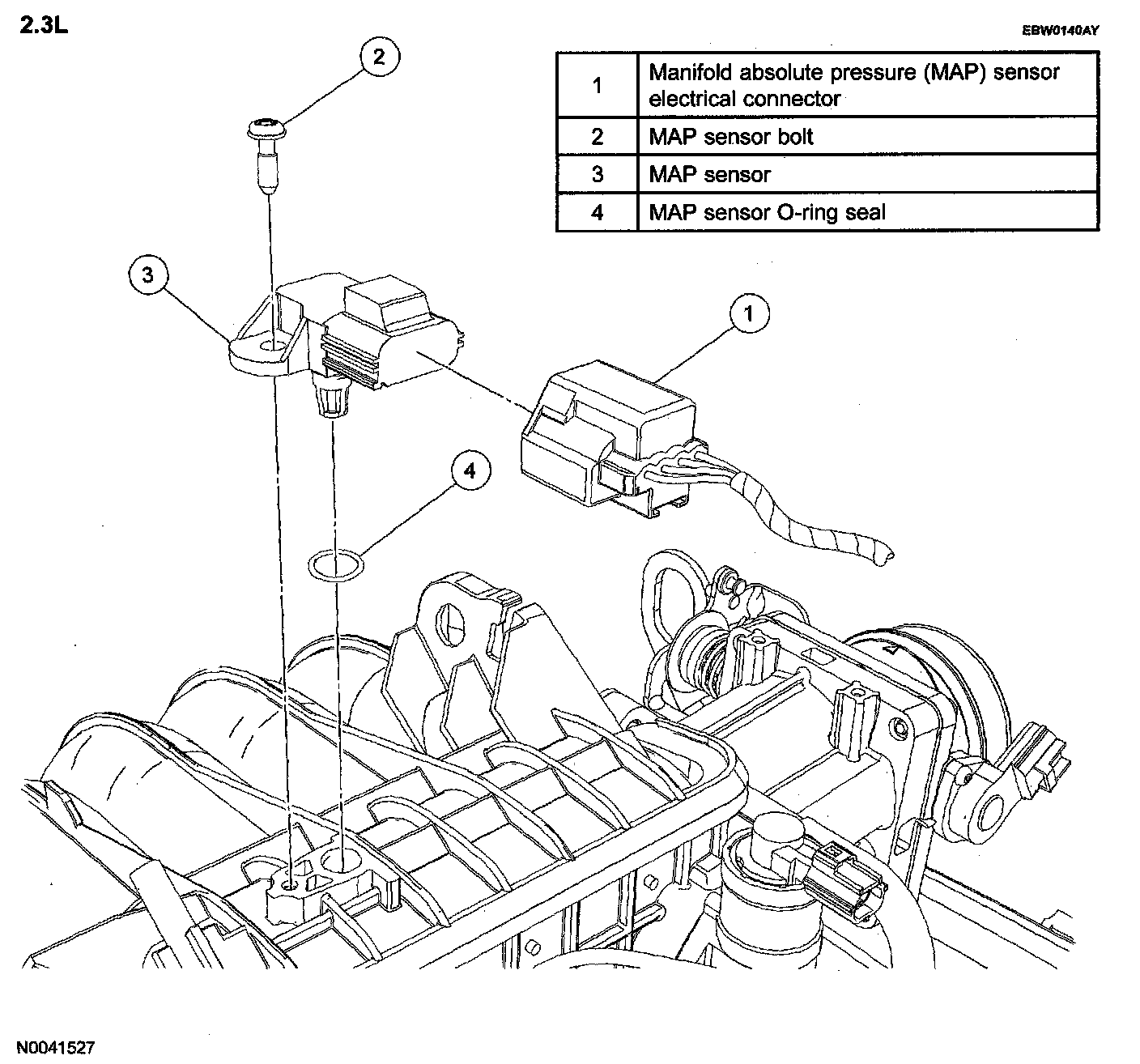

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL / INSTALLATION - 2.3L

1. Disconnect the negative battery cable.

2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

3. Remove the bolt and lift the MAP sensor out of the intake manifold.
4. To install, reverse the removal procedure.
