AUTOMATIC TRANSMISSION SPECIFICATIONS

End Play Specifications (5R55E 5R44E)

End Play Specifications (5R55E 5R44E) (Part 1):

End Play Specifications (5R55E 5R44E) (Part 2):

Band Adjustment And Torque Chart (5R44E and 5R55E)

Band Adjustment And Torque Chart (5R44E and 5R55E):

Clutch Plate Usage And Clearance Specifications (5R44E and 5R55E)

Clutch Plate Usage And Clearance Specifications (5R44E and 5R55E) Part 1):

Clutch Plate Usage And Clearance Specifications (5R44E and 5R55E) Part 2):

Selective Snap Rings (5R44E and 5R55E)

Selective Snap Rings (5R44E and 5R55E):

Service Identification Model Chart (5R44E and 5R55E)

Service Identification Model Chart (5R44E and 5R55E):

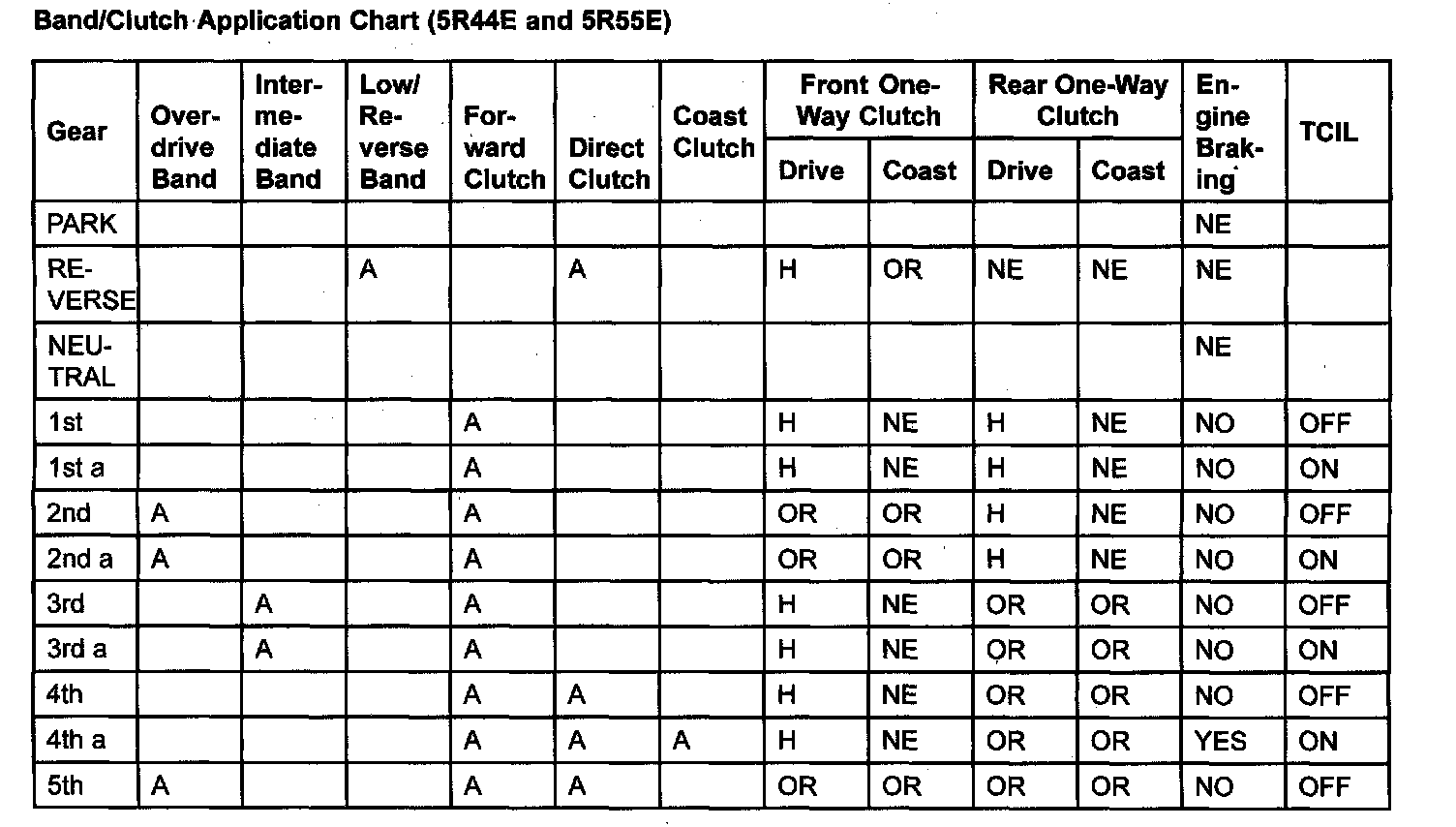

Band/Clutch Application Chart (5R44E and 5R55E)

Band/Clutch Application Chart (5R44E and 5R55E) (Part 1):

Band/Clutch Application Chart (5R44E and 5R55E) (Part 2):

Oil Pan
Loosely install the 18 oil pan bolts.

Tighten the oil pan bolts
Use a crisscross sequence to tighten the oil pan bolts.
