Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL

Ignition Lock Cylinder - Functional:





Removal and Installation
1. Disconnect the negative battery cable.
2. Insert the ignition key and turn to the RUN position.

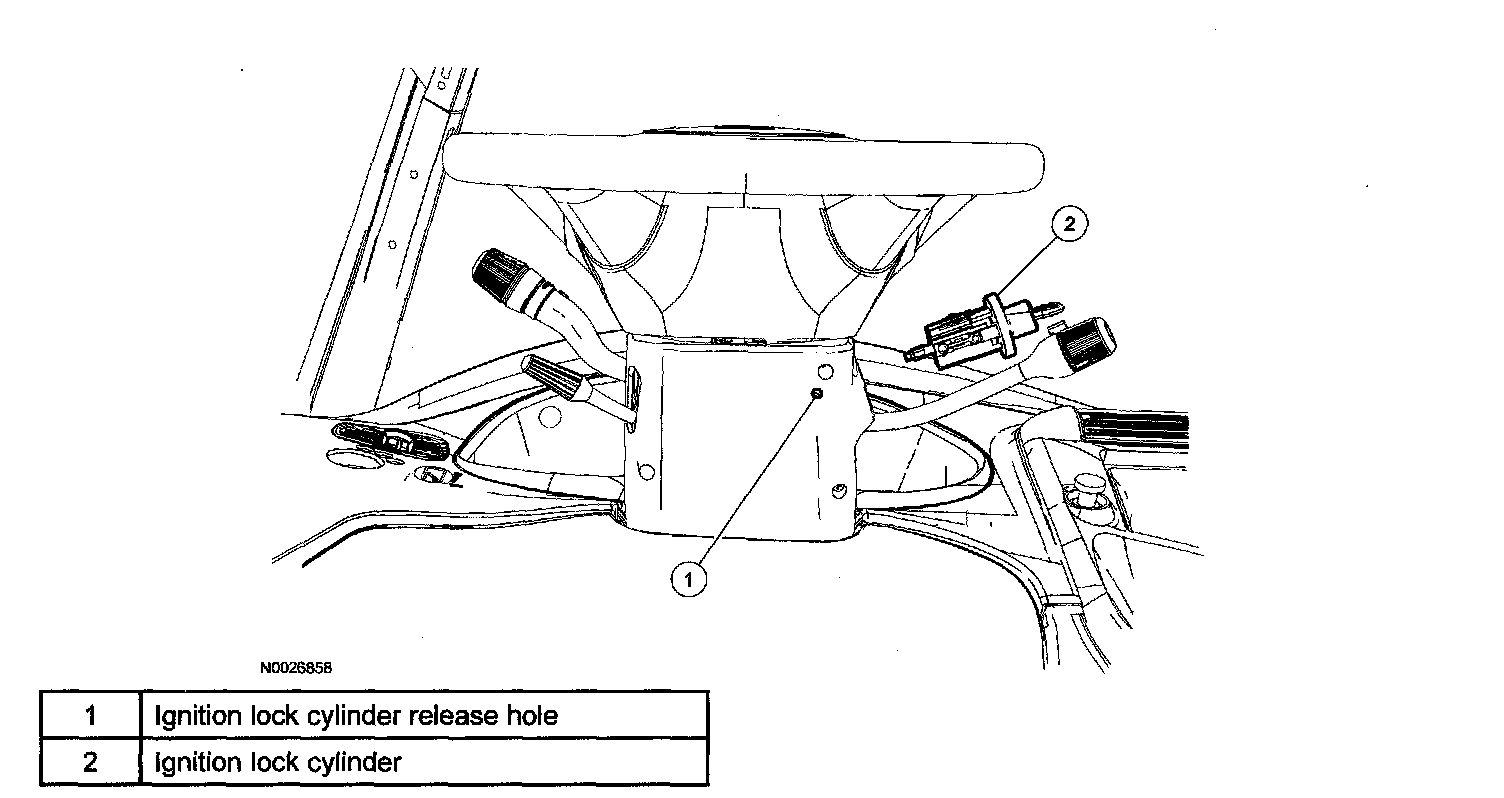

3. Press the ignition lock cylinder release pin and remove the ignition lock cylinder.
4. To install, reverse the removal procedure.
^ Verify ignition lock cylinder operation.
