Steering Column Components

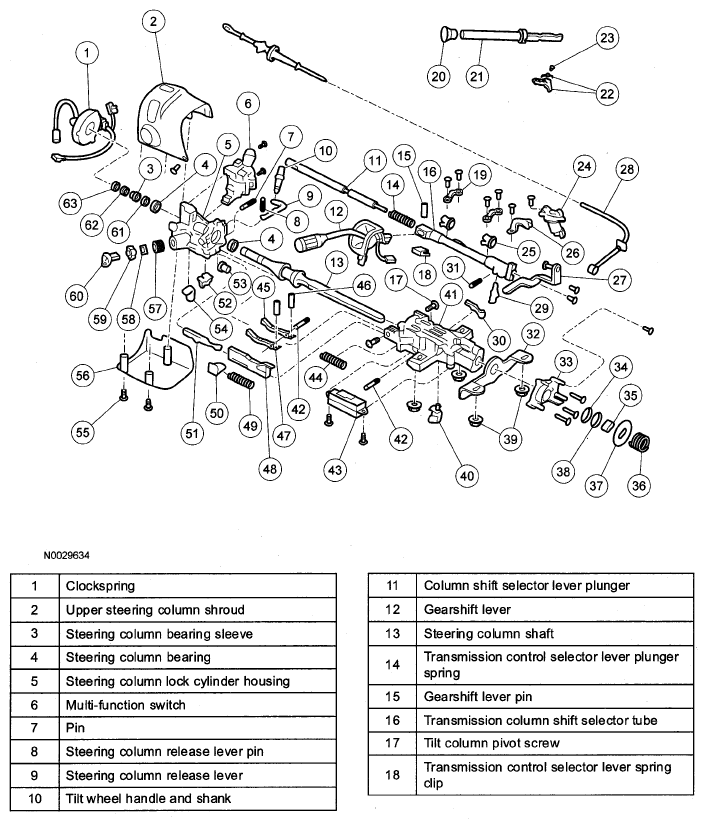

Fig 1: Exploded View Of Steering Column Components

G04930755

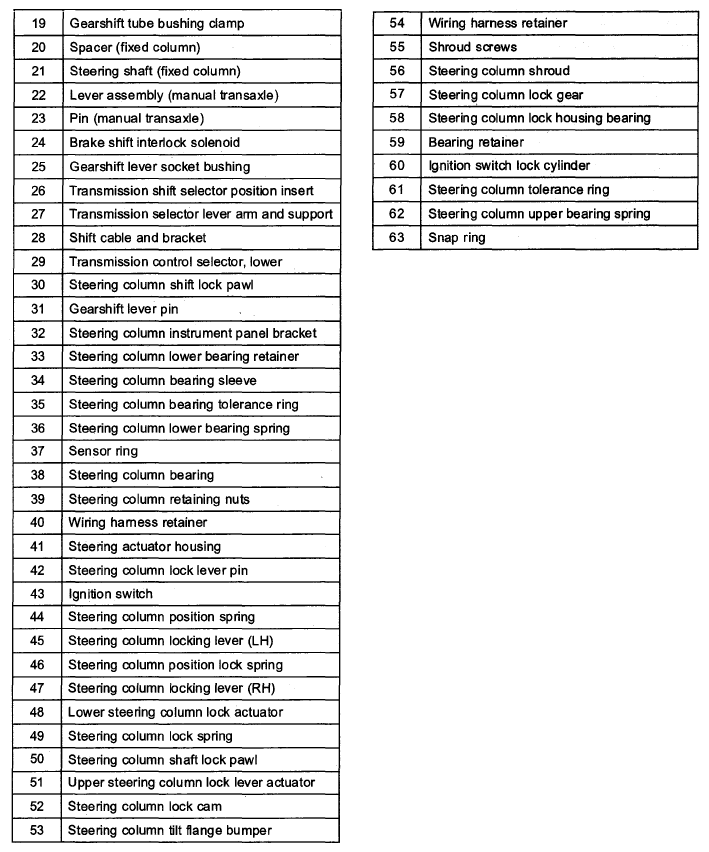

Fig 2: Steering Column Legends

G04930756
