Central Control Module: Testing and Inspection

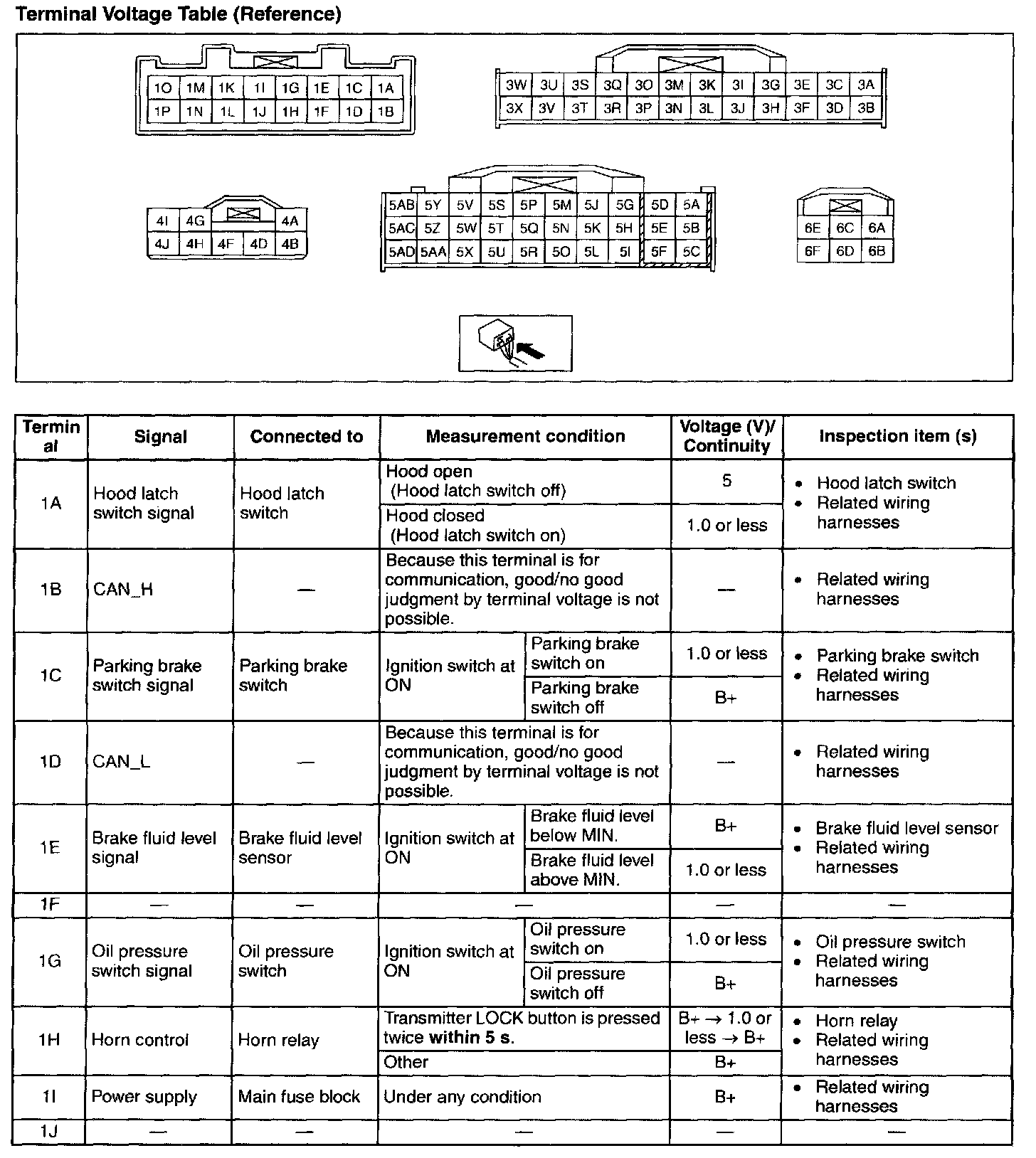

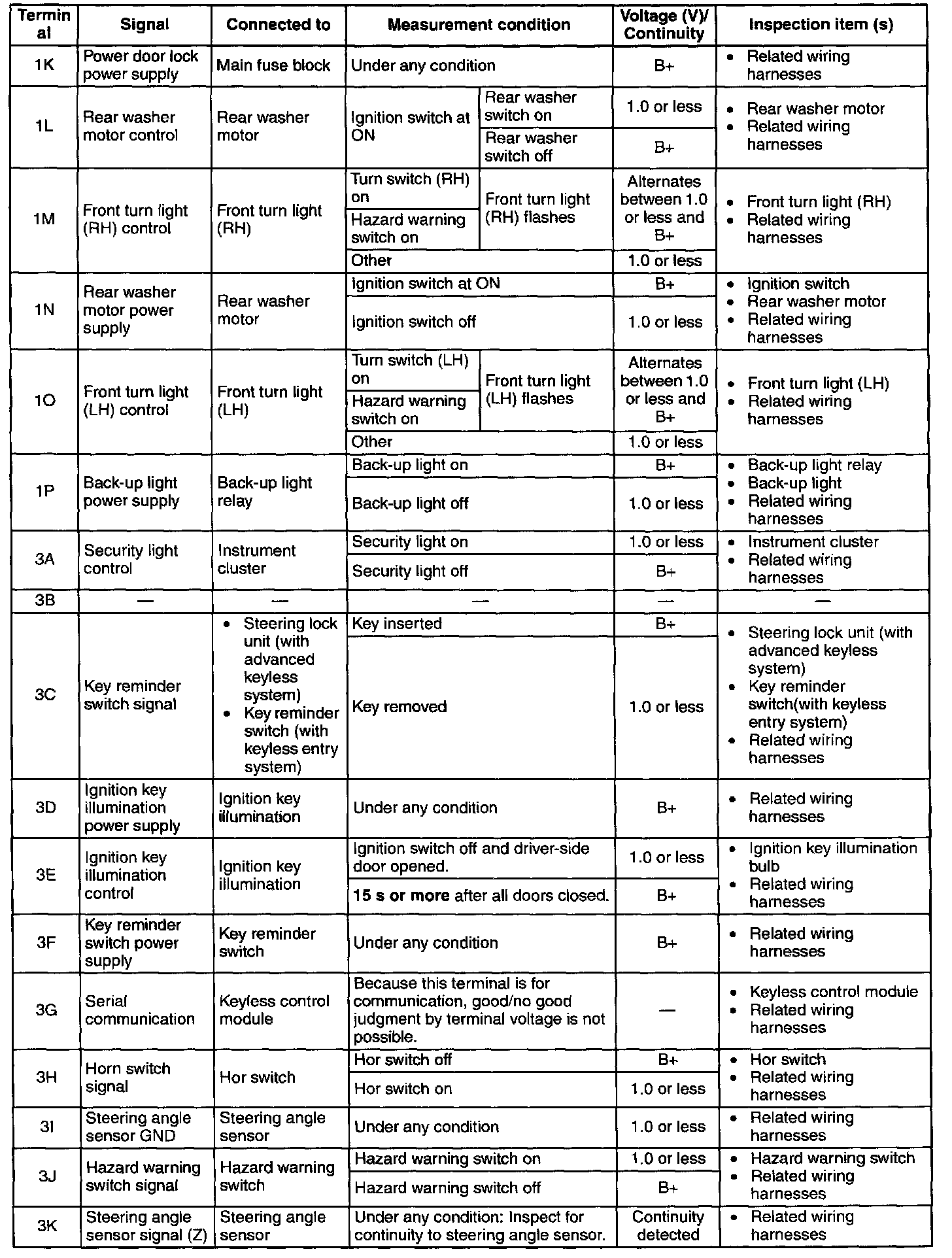

Terminal Voltage Table (Reference) Part 1:

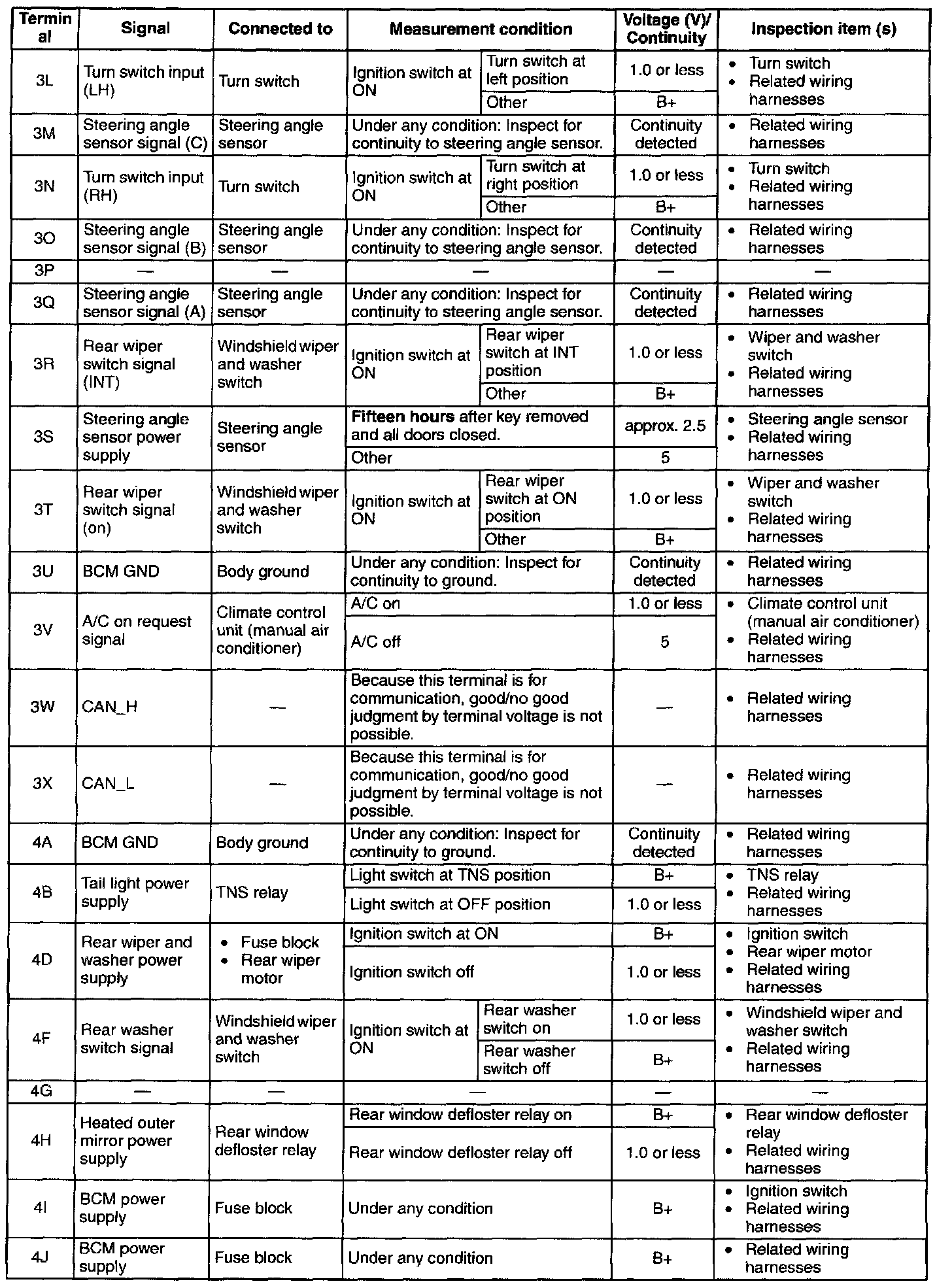

Terminal Voltage Table (Reference) Part 2:

Terminal Voltage Table (Reference) Part 3:

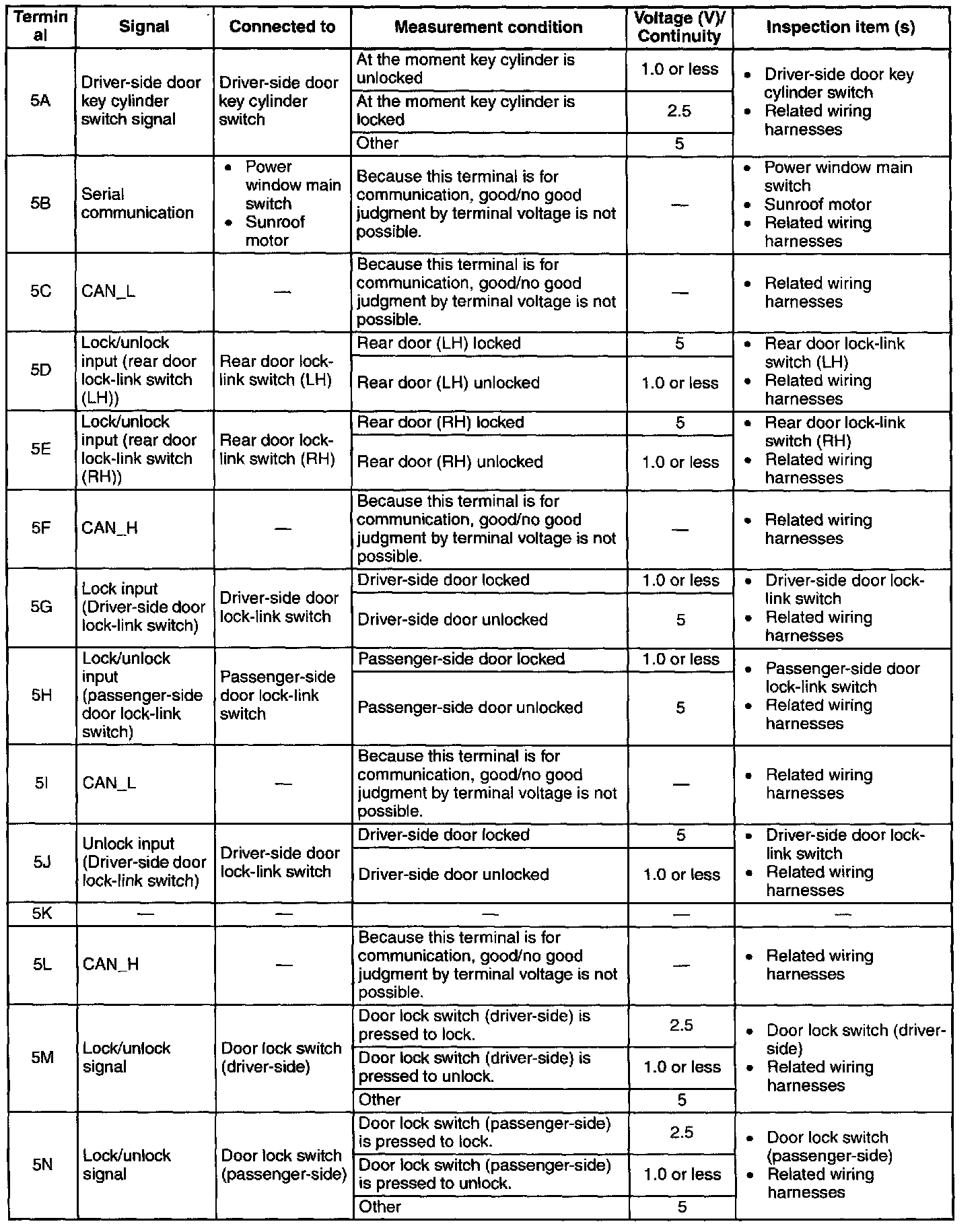

Terminal Voltage Table (Reference) Part 4:

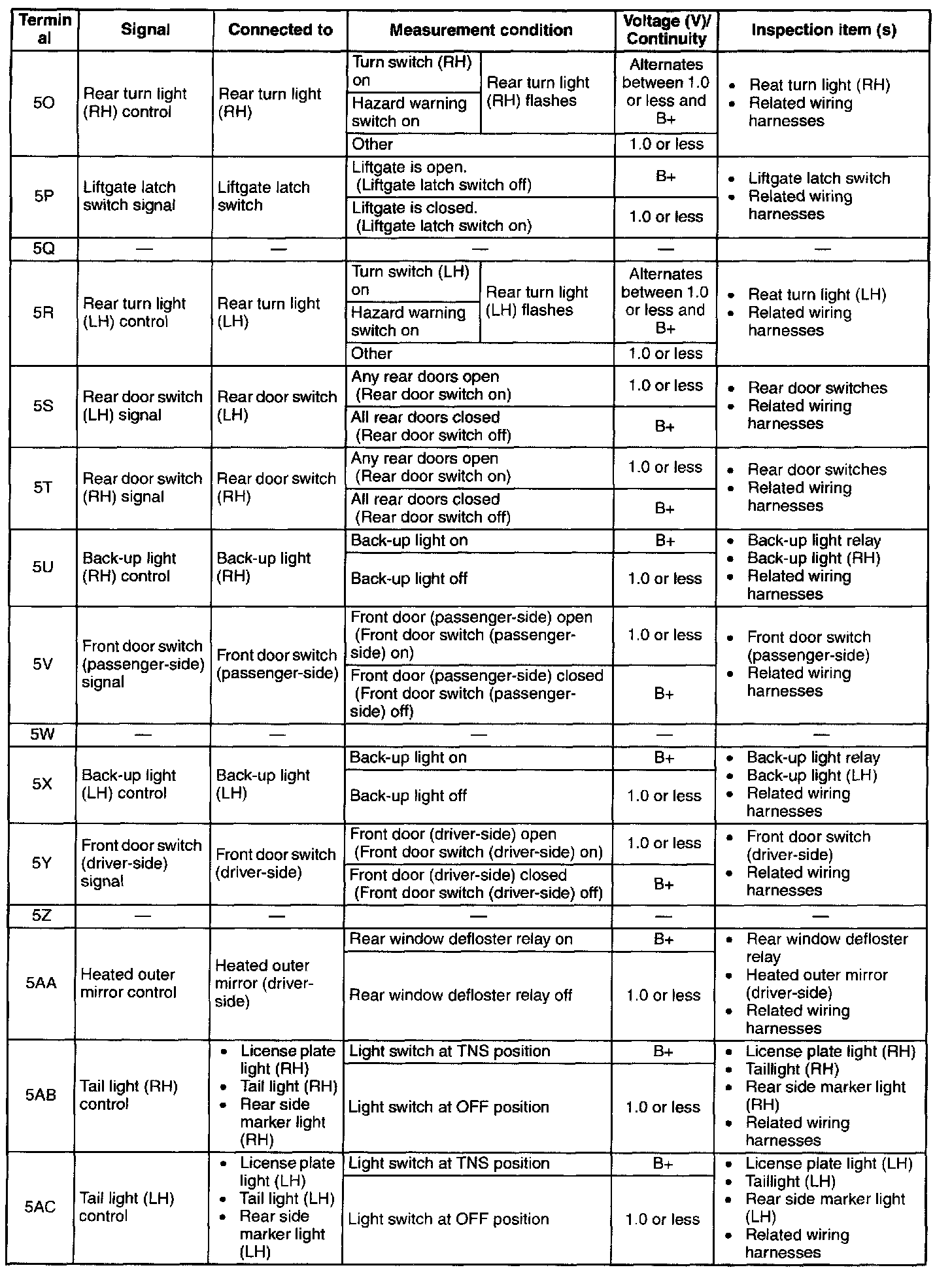

Terminal Voltage Table (Reference) Part 5:

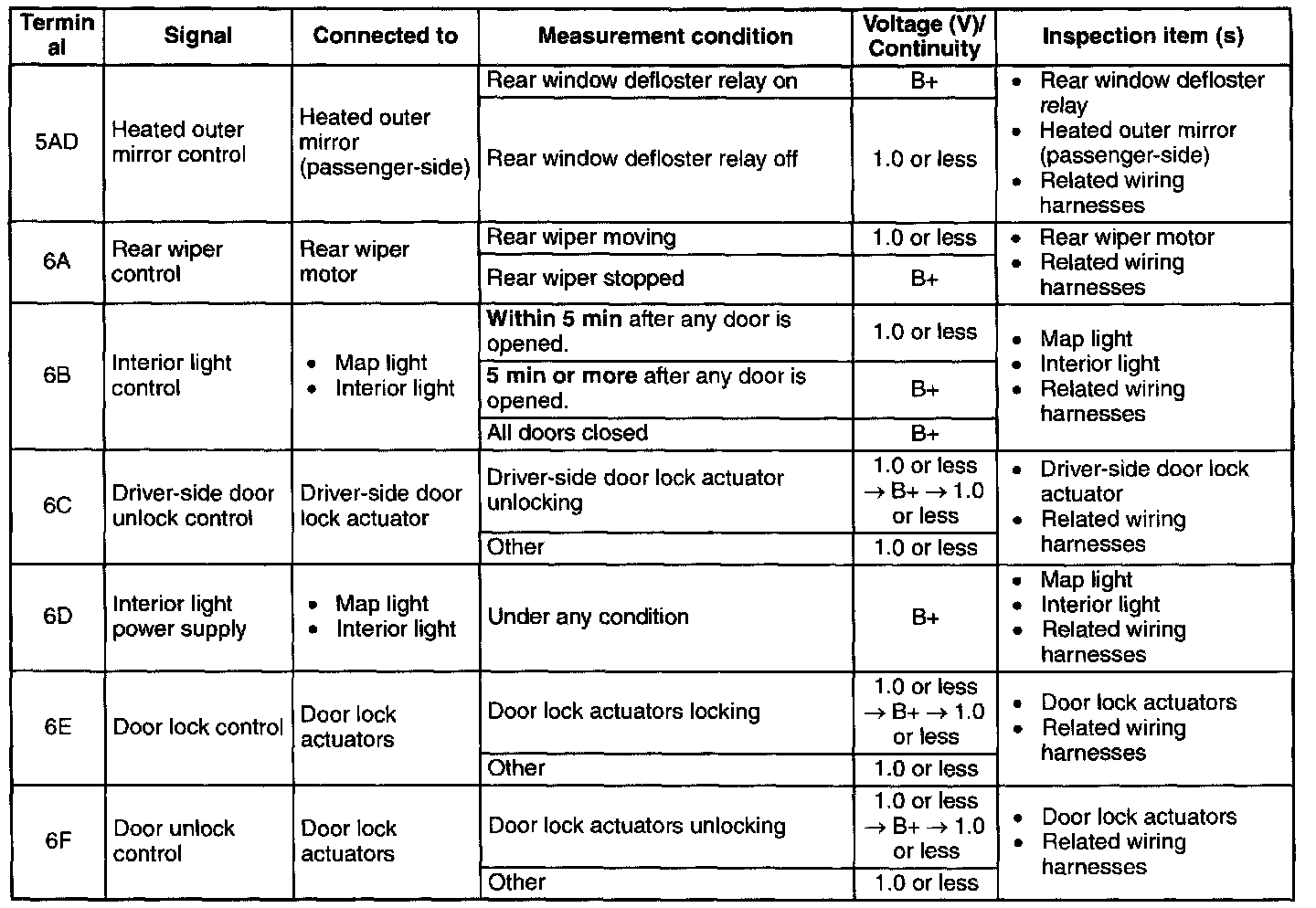

Terminal Voltage Table (Reference) Part 6:
