System Schematic

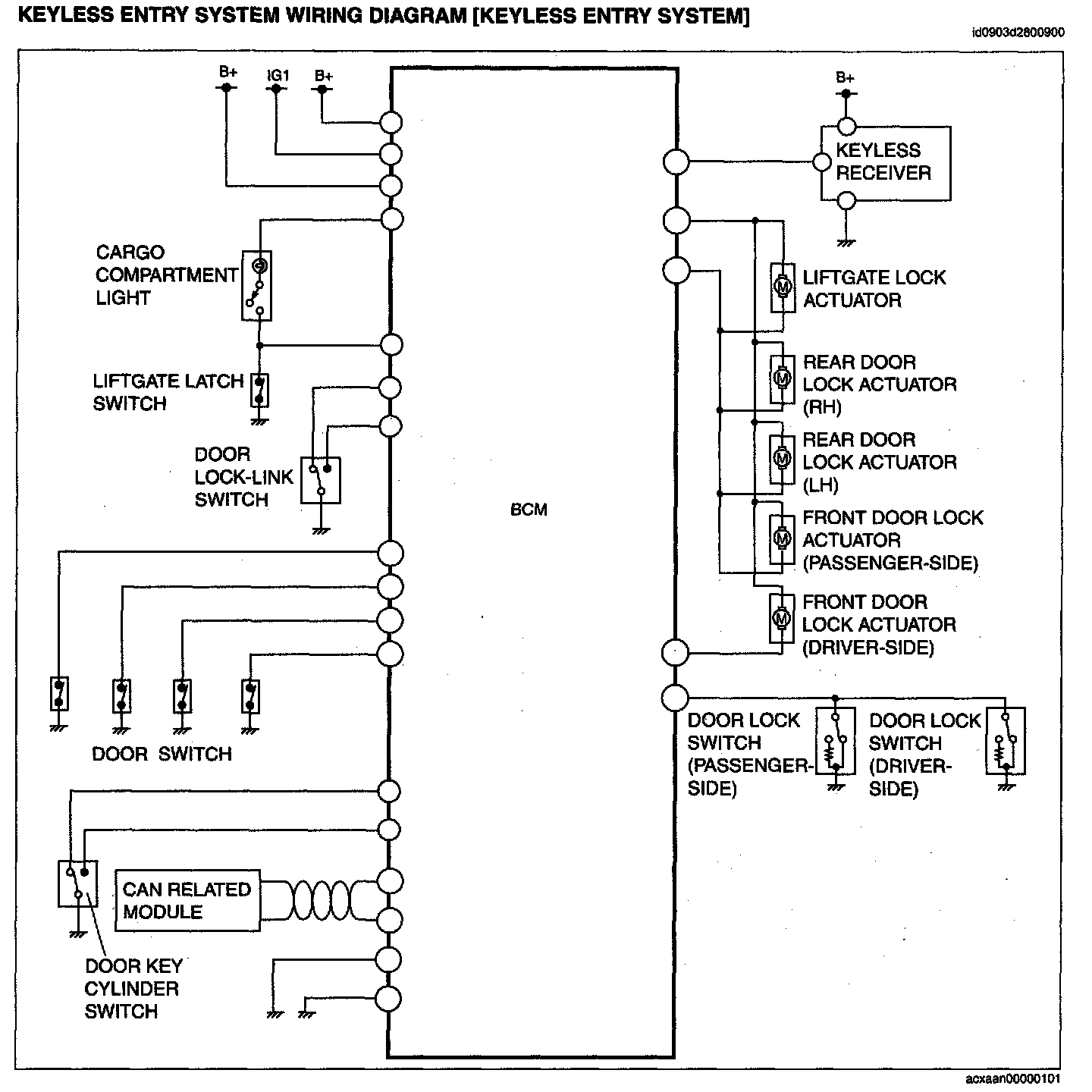

Keyless Entry System Wiring Diagram(Keyless Entry System):

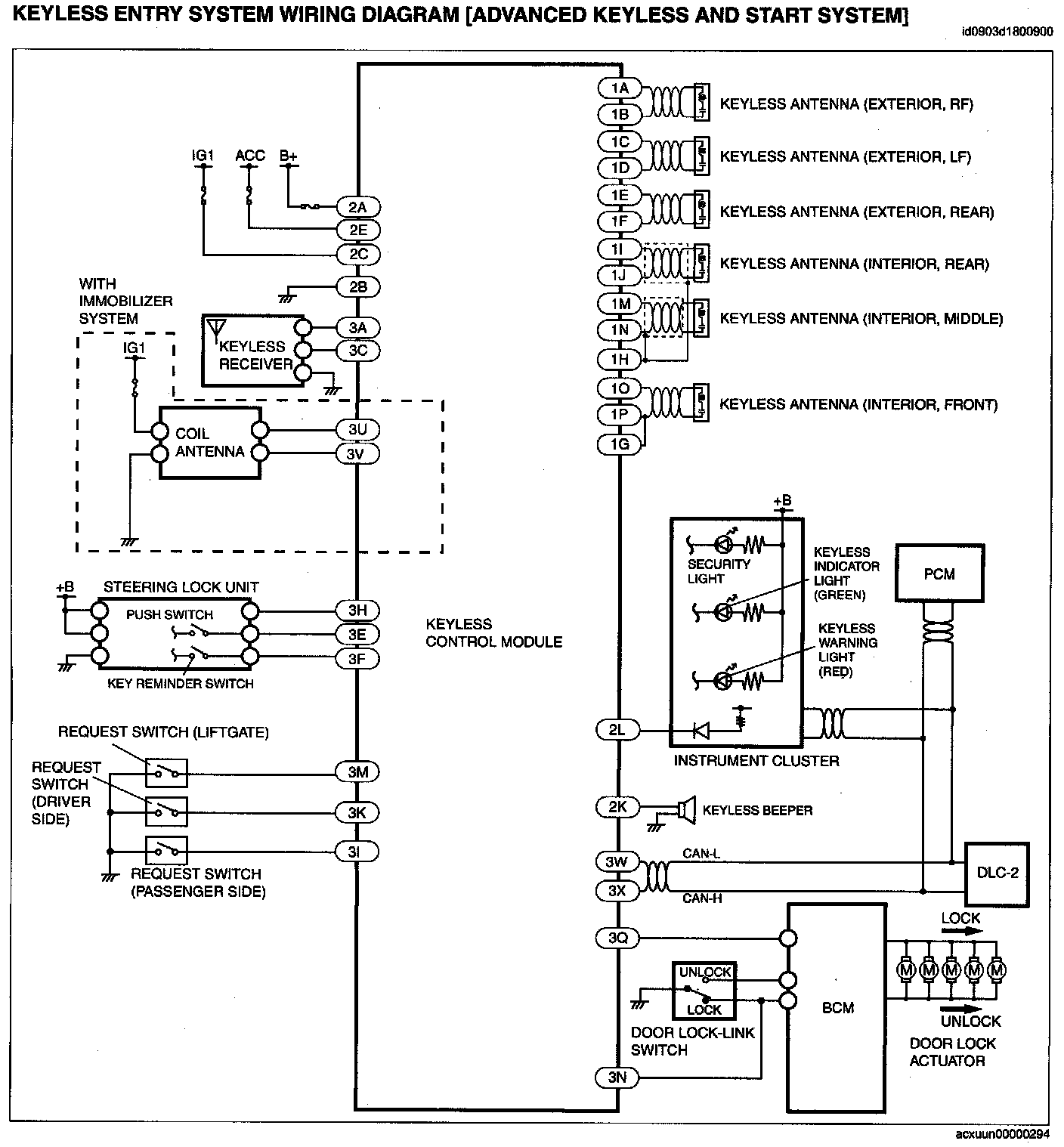

Keyless Entry System Wiring Diagram (Advanced Keyless And Start System):
