Full-Auto Air Conditioner

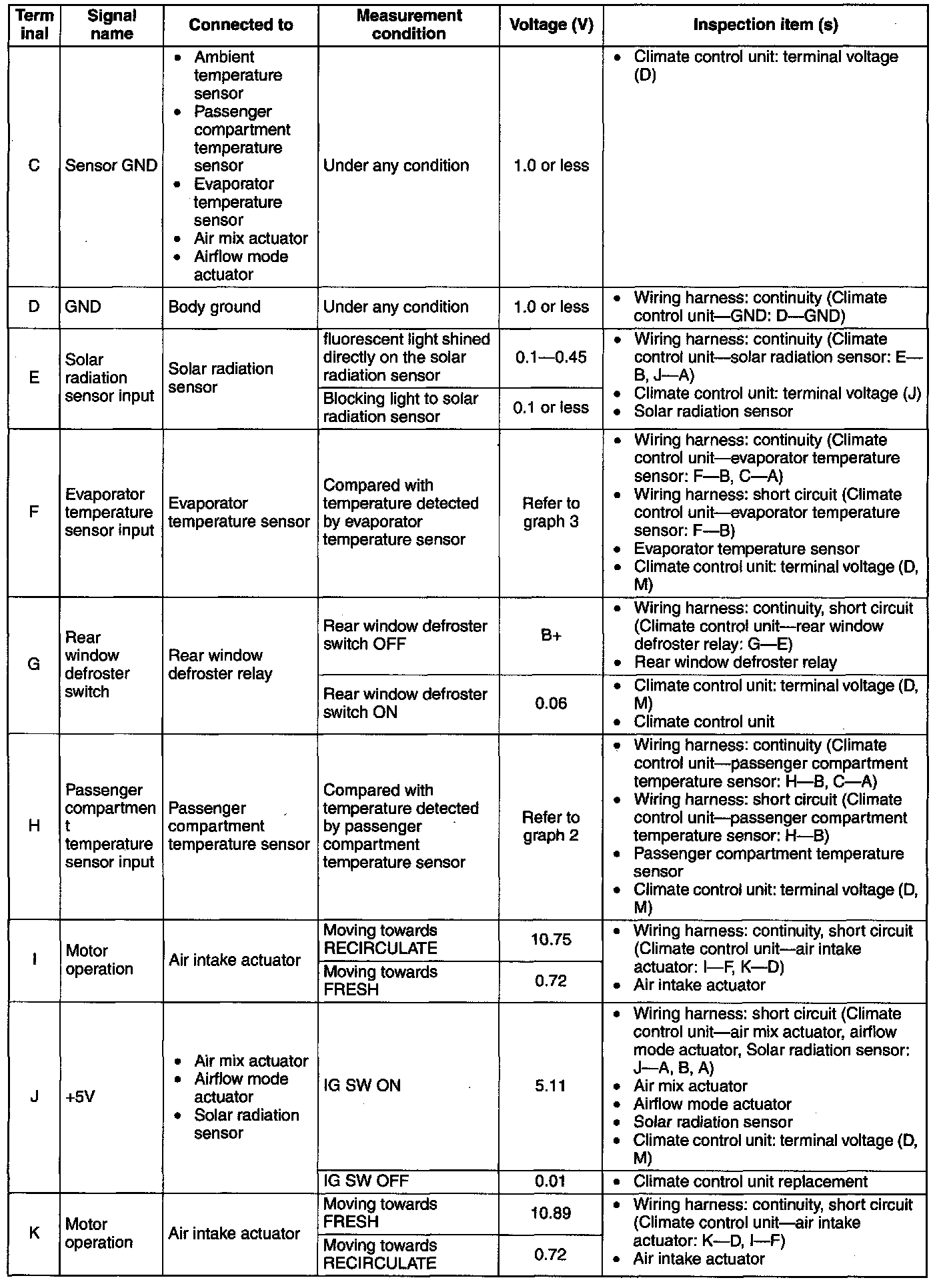

Terminal Voltage Table (Reference) (Part 1):

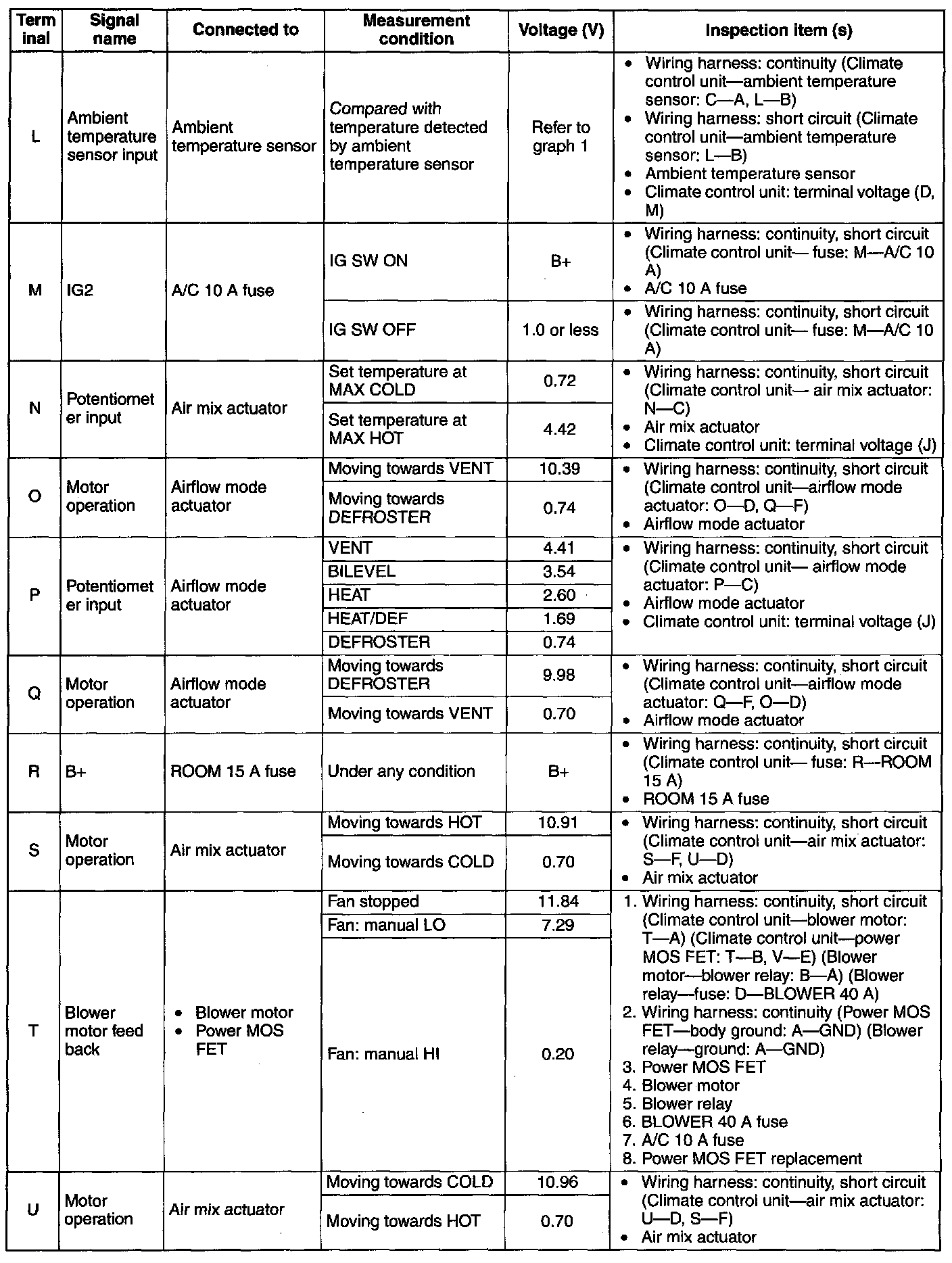

Terminal Voltage Table (Reference) Part 2:

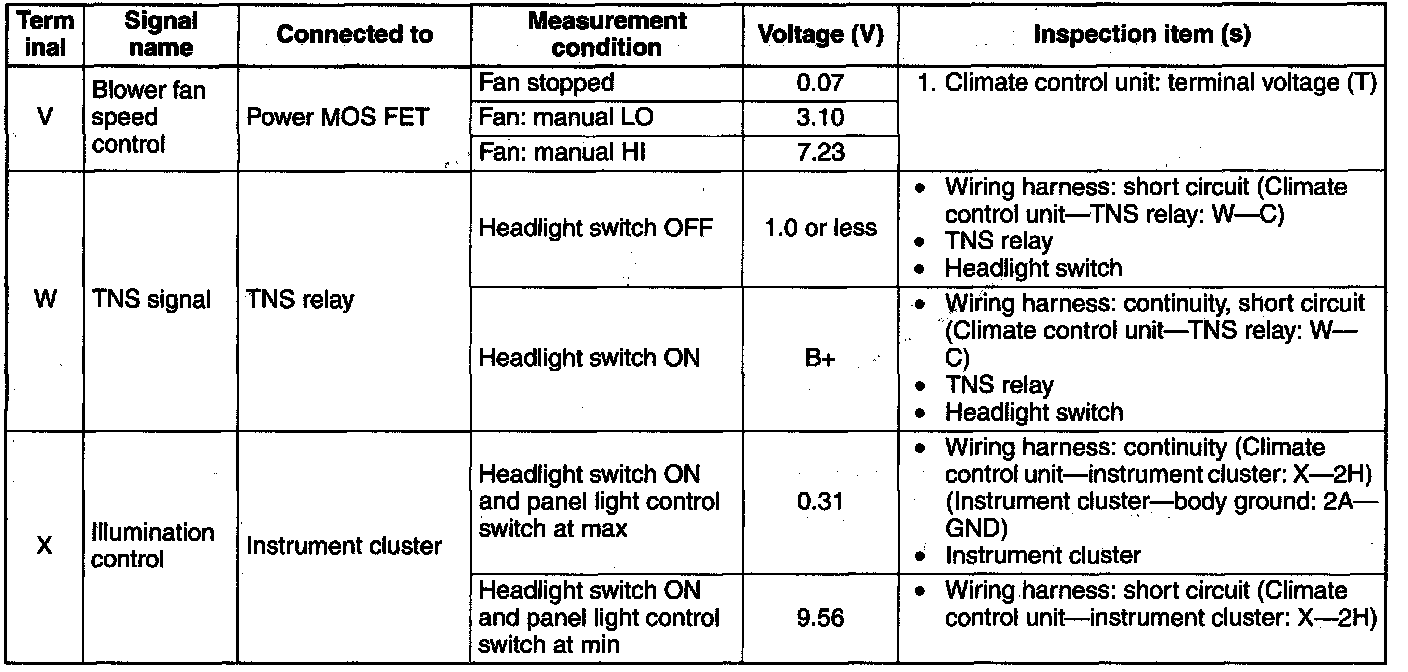

Terminal Voltage Table (Reference) Part 3:



Terminal Voltage Table (Reference) Part 4:



Terminal Voltage Table (Reference) Part 5:
