Power and Ground Distribution: Diagrams

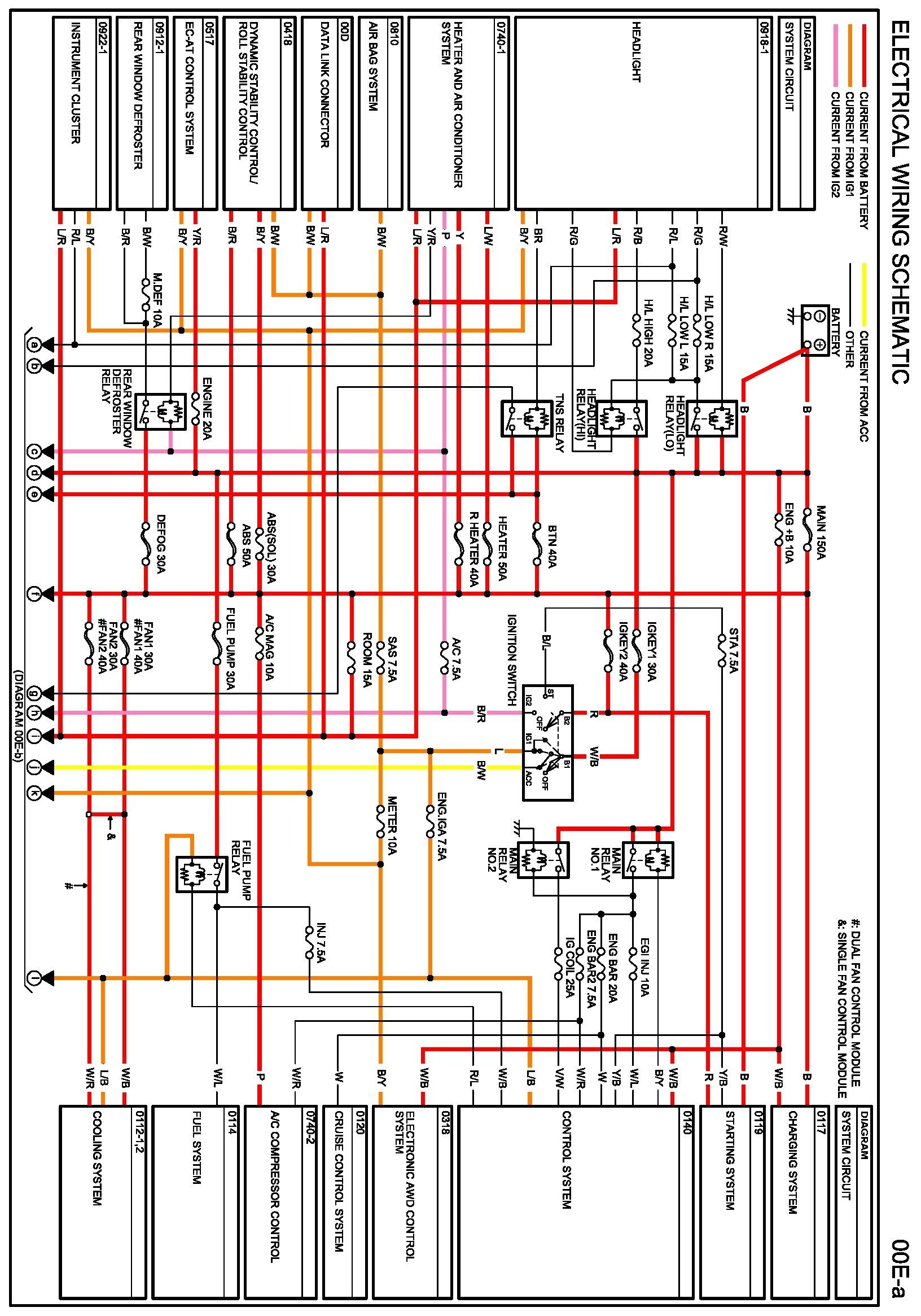

Diagram 00E-a:

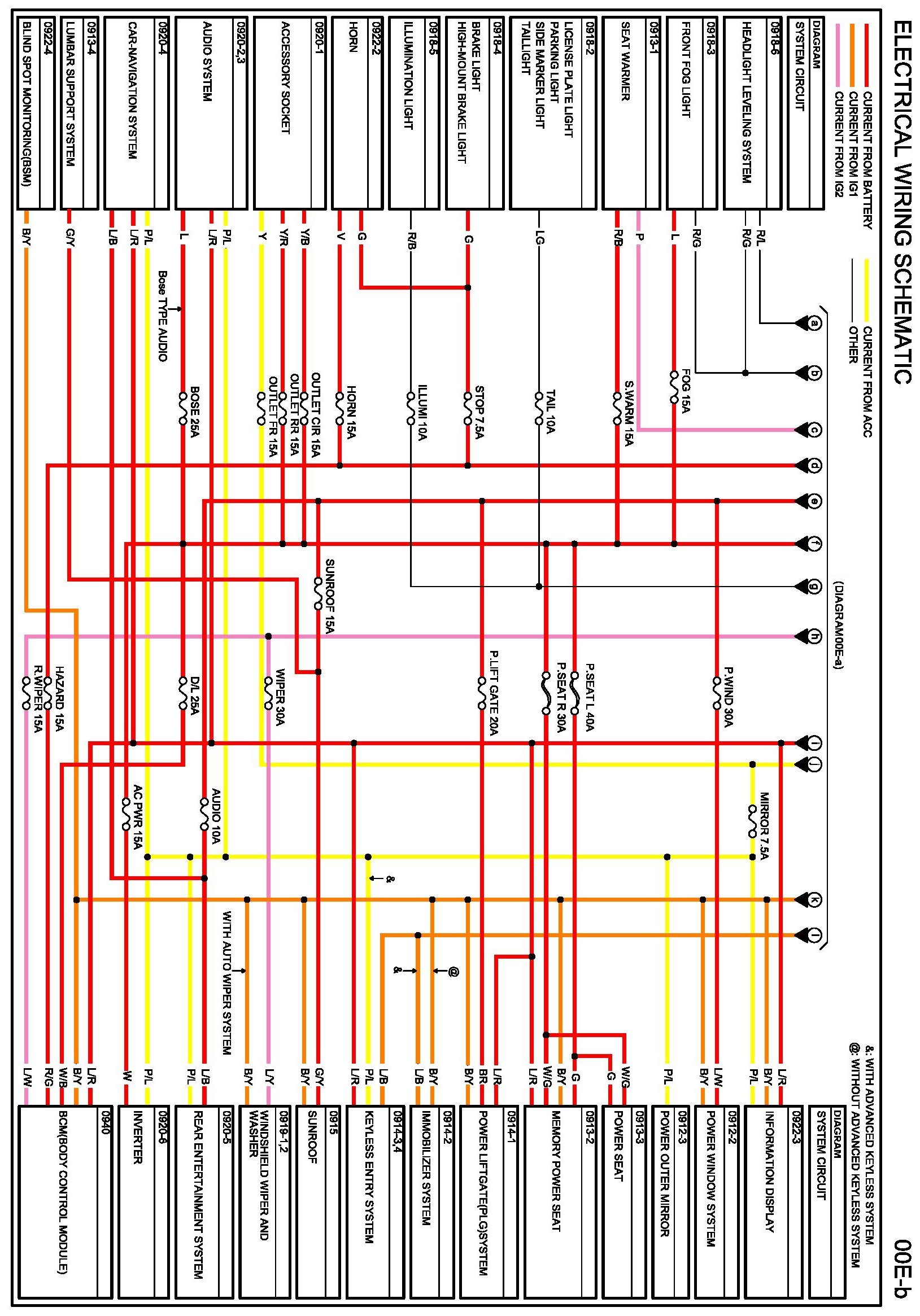

Diagram 00E-b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
