PID/Data Monitor Table [Restraint Control Module (RCM)]

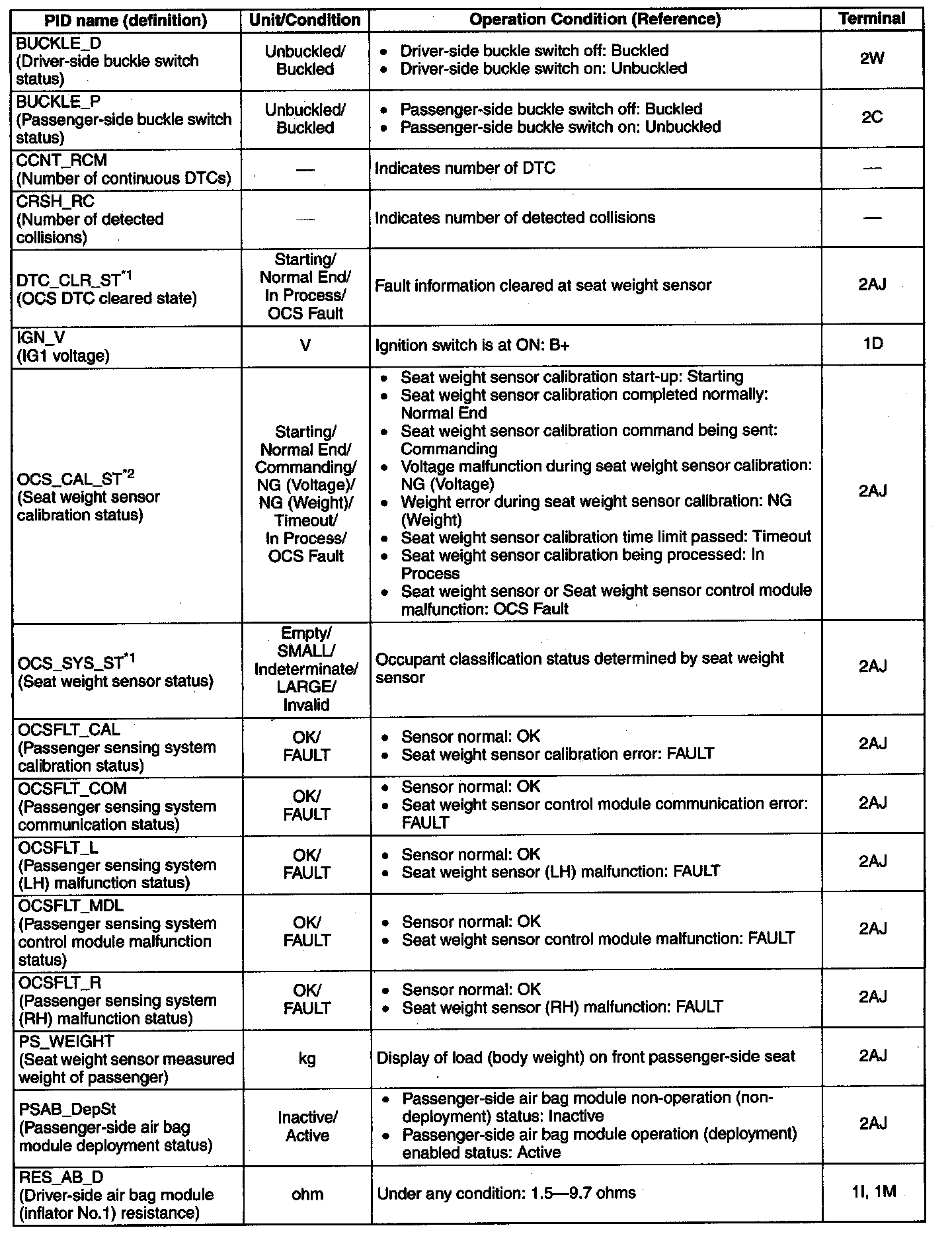

PID/Data Monitor Table (Part 1):

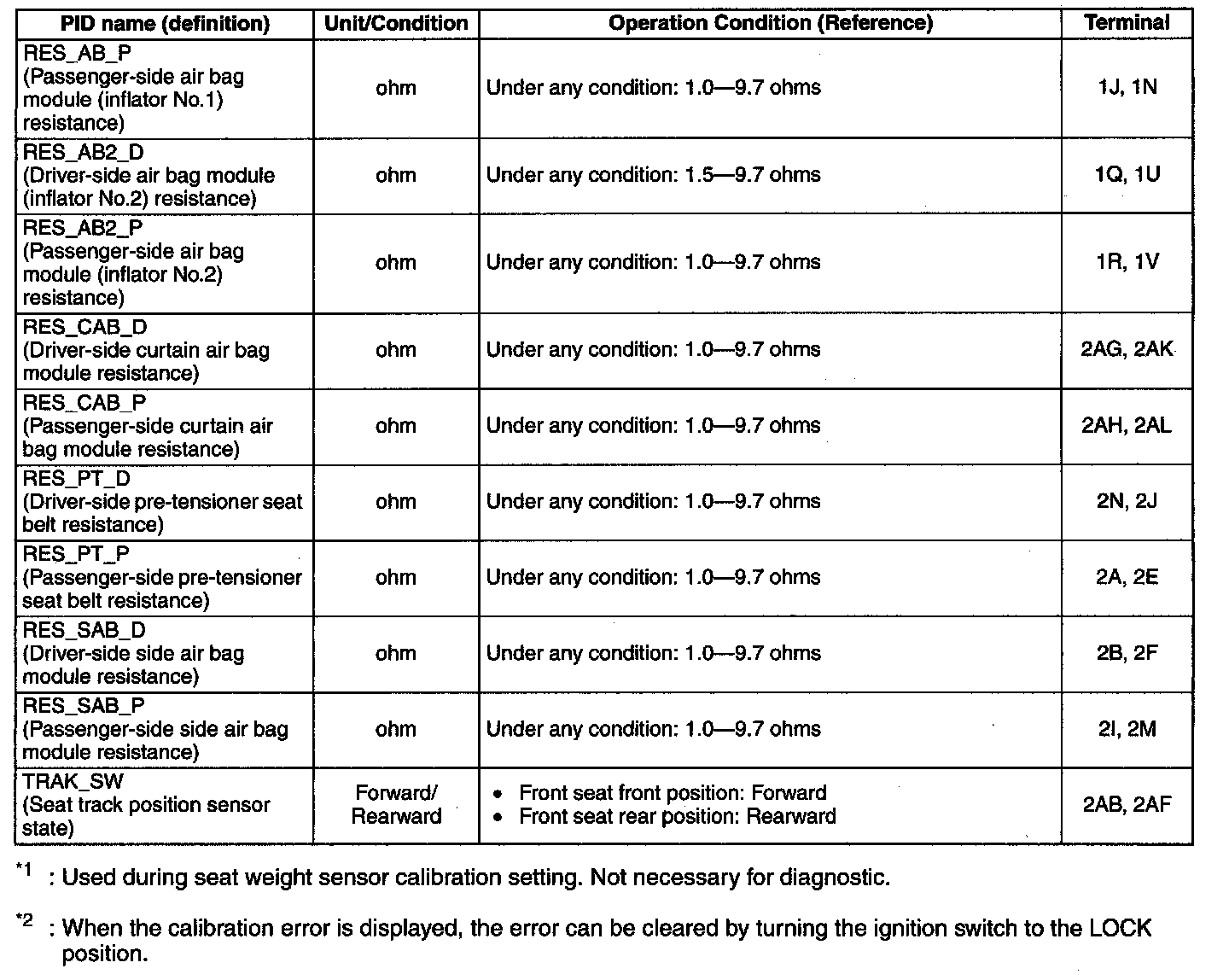

PID/Data Monitor Table (Part 2):
